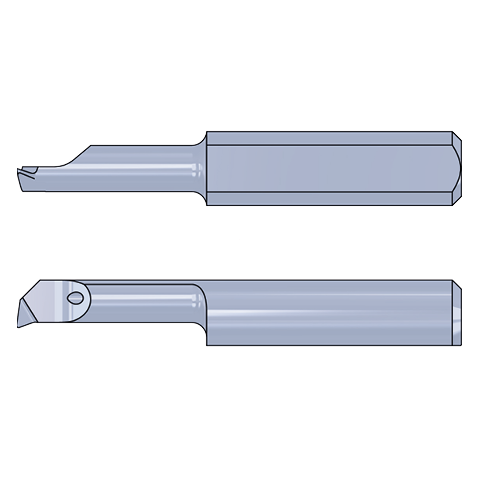

Copy turning cutter PL type P50

COATED

Ordering by Catalog

Copy turning cutter PL type P50

Catalog Order List

Execution
- Left
- Right

Search Start search

	Filter
	Filter
Order Designation	Stock	a	dh6	Dmin	f	L	L1	R	tmax	CAD Data	Selection
LP50.2-10/P04Cleft, cm-1, a-1-7, dh6-4, Dmin-2, L-24, L1-10, R-0-05, tmax-0-1,	approx. 4 working days	1.7	4	2		24	10	0.05	0.1		To order
LP50.2-15/P04Cleft, cm-1, a-1-7, dh6-4, Dmin-2, L-29, L1-15, R-0-05, tmax-0-1,	approx. 4 working days	1.7	4	2		29	15	0.05	0.1		To order
LP50.2-5/P04Cleft, cm-1, a-1-7, dh6-4, Dmin-2, L-19, L1-5, R-0-05, tmax-0-1,	approx. 4 working days	1.7	4	2		19	5	0.05	0.1		To order
LP50.25-10/P04Cleft, cm-1, a-2-2, dh6-4, Dmin-2-5, f-0-2, L-24, L1-10, R-0-05, tmax-0-15,	approx. 4 working days	2.2	4	2.5	0.2	24	10	0.05	0.15		To order
LP50.25-16/P04Cleft, cm-1, a-2-2, dh6-4, Dmin-2-5, f-0-2, L-30, L1-16, R-0-05, tmax-0-15,	approx. 4 working days	2.2	4	2.5	0.2	30	16	0.05	0.15		To order
LP50.25-5/P04Cleft, cm-1, a-2-2, dh6-4, Dmin-2-5, f-0-2, L-19, L1-5, R-0-05, tmax-0-15,	approx. 4 working days	2.2	4	2.5	0.2	19	5	0.05	0.15		To order
LP50.3-10/P04Cleft, cm-1, a-2-6, dh6-4, Dmin-2-8, f-0-6, L-24, L1-10, R-0-1, tmax-0-2,	approx. 4 working days	2.6	4	2.8	0.6	24	10	0.1	0.2		To order
LP50.3-16/P04Cleft, cm-1, a-2-6, dh6-4, Dmin-2-8, f-0-6, L-30, L1-16, R-0-1, tmax-0-2,	approx. 4 working days	2.6	4	2.8	0.6	30	16	0.1	0.2		To order
LP50.3-20/P04Cleft, cm-1, a-2-6, dh6-4, Dmin-2-8, f-0-6, L-34, L1-20, R-0-1, tmax-0-2,	approx. 4 working days	2.6	4	2.8	0.6	34	20	0.1	0.2		To order
LP50.35-10/P04Cleft, cm-1, a-3-1, dh6-4, Dmin-3-5, f-1-1, L-24, L1-10, R-0-1, tmax-0-25,	approx. 4 working days	3.1	4	3.5	1.1	24	10	0.1	0.25		To order
LP50.35-16/P04Cleft, cm-1, a-3-1, dh6-4, Dmin-3-5, f-1-1, L-30, L1-16, R-0-1, tmax-0-25,	approx. 4 working days	3.1	4	3.5	1.1	30	16	0.1	0.25		To order
LP50.35-20/P04Cleft, cm-1, a-3-1, dh6-4, Dmin-3-5, f-1-1, L-34, L1-20, R-0-1, tmax-0-25,	approx. 4 working days	3.1	4	3.5	1.1	34	20	0.1	0.25		To order
LP50.35-24/P04Cleft, cm-1, a-3-1, dh6-4, Dmin-3-5, f-1-1, L-38, L1-24, R-0-1, tmax-0-25,	approx. 4 working days	3.1	4	3.5	1.1	38	24	0.1	0.25		To order
LP50.4-10/P04Cleft, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-24, L1-10, R-0-1, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	24	10	0.1	0.3		To order
LP50.4-16/P04Cleft, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-30, L1-16, R-0-1, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	30	16	0.1	0.3		To order
LP50.4-20/P04Cleft, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-34, L1-20, R-0-1, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	34	20	0.1	0.3		To order
LP50.4-24/P04Cleft, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-38, L1-24, R-0-1, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	38	24	0.1	0.3		To order
LP50.4-28/P04Cleft, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-42, L1-28, R-0-1, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	42	28	0.1	0.3		To order
LP50.5-10/P04Cleft, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-25, L1-10, R-0-15, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	25	10	0.15	0.5		To order
LP50.5-15/P04Cleft, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-30, L1-15, R-0-15, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	30	15	0.15	0.5		To order
LP50.5-20/P04Cleft, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-35, L1-20, R-0-15, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	35	20	0.15	0.5		To order
LP50.5-25/P04Cleft, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-40, L1-25, R-0-15, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	40	25	0.15	0.5		To order
LP50.5-30/P04Cleft, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-45, L1-30, R-0-15, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	45	30	0.15	0.5		To order
LP50.5-35/P04Cleft, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-50, L1-35, R-0-15, tmax-0-5,	about 2 weeks	4.4	5	5	1.9	50	35	0.15	0.5		To order
LP50.5-40/P04Cleft, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-55, L1-40, R-0-15, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	55	40	0.15	0.5		To order
LP50.6-15/P04Cleft, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-30, L1-15, R-0-15, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	30	15	0.15	0.5		To order
LP50.6-22/P04Cleft, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-37, L1-22, R-0-15, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	37	22	0.15	0.5		To order
LP50.6-25/P04Cleft, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-40, L1-25, R-0-15, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	40	25	0.15	0.5		To order
LP50.6-30/P04Cleft, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-45, L1-30, R-0-15, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	45	30	0.15	0.5		To order
LP50.6-35/P04Cleft, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-50, L1-35, R-0-15, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	50	35	0.15	0.5		To order
LP50.6-42/P04Cleft, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-57, L1-42, R-0-15, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	57	42	0.15	0.5		To order
LP50.7-20/P04Cleft, cm-1, a-6-3, dh6-7, Dmin-6-8, f-2-8, L-35, L1-20, R-0-15, tmax-0-6,	approx. 4 working days	6.3	7	6.8	2.8	35	20	0.15	0.6		To order
LP50.7-25/P04Cleft, cm-1, a-6-3, dh6-7, Dmin-6-8, f-2-8, L-40, L1-25, R-0-15, tmax-0-6,	approx. 4 working days	6.3	7	6.8	2.8	40	25	0.15	0.6		To order
LP50.7-30/P04Cleft, cm-1, a-6-3, dh6-7, Dmin-6-8, f-2-8, L-45, L1-30, R-0-15, tmax-0-6,	approx. 4 working days	6.3	7	6.8	2.8	45	30	0.15	0.6		To order
LP50.7-35/P04Cleft, cm-1, a-6-3, dh6-7, Dmin-6-8, f-2-8, L-50, L1-35, R-0-15, tmax-0-6,	approx. 4 working days	6.3	7	6.8	2.8	50	35	0.15	0.6		To order
LP50.7-40/P04Cleft, cm-1, a-6-3, dh6-7, Dmin-6-8, f-2-8, L-55, L1-40, R-0-15, tmax-0-6,	approx. 4 working days	6.3	7	6.8	2.8	55	40	0.15	0.6		To order
LP50.7-45/P04Cleft, cm-1, a-6-3, dh6-7, Dmin-6-8, f-2-8, L-60, L1-45, R-0-15, tmax-0-6,	approx. 4 working days	6.3	7	6.8	2.8	60	45	0.15	0.6		To order
LP50.7-50/P04Cleft, cm-1, a-6-3, dh6-7, Dmin-6-8, f-2-8, L-65, L1-50, R-0-15, tmax-0-6,	approx. 4 working days	6.3	7	6.8	2.8	65	50	0.15	0.6		To order
RP50.2-10/P04Cright, cm-1, a-1-7, dh6-4, Dmin-2, L-24, L1-10, R-0-05, tmax-0-1,	approx. 4 working days	1.7	4	2		24	10	0.05	0.1		To order
RP50.2-15/P04Cright, cm-1, a-1-7, dh6-4, Dmin-2, L-29, L1-15, R-0-05, tmax-0-1,	approx. 4 working days	1.7	4	2		29	15	0.05	0.1		To order
RP50.2-5/P04Cright, cm-1, a-1-7, dh6-4, Dmin-2, L-19, L1-5, R-0-05, tmax-0-1,	approx. 4 working days	1.7	4	2		19	5	0.05	0.1		To order
RP50.25-10/P04Cright, cm-1, a-2-2, dh6-4, Dmin-2-5, f-0-2, L-24, L1-10, R-0-05, tmax-0-15,	approx. 4 working days	2.2	4	2.5	0.2	24	10	0.05	0.15		To order
RP50.25-16/P04Cright, cm-1, a-2-2, dh6-4, Dmin-2-5, f-0-2, L-30, L1-16, R-0-05, tmax-0-15,	approx. 4 working days	2.2	4	2.5	0.2	30	16	0.05	0.15		To order
RP50.25-5/P04Cright, cm-1, a-2-2, dh6-4, Dmin-2-5, f-0-2, L-19, L1-5, R-0-05, tmax-0-15,	approx. 4 working days	2.2	4	2.5	0.2	19	5	0.05	0.15		To order
RP50.3-10/P04Cright, cm-1, a-2-6, dh6-4, Dmin-2-8, f-0-6, L-24, L1-10, R-0-1, tmax-0-2,	approx. 4 working days	2.6	4	2.8	0.6	24	10	0.1	0.2		To order
RP50.3-16/P04Cright, cm-1, a-2-6, dh6-4, Dmin-2-8, f-0-6, L-30, L1-16, R-0-1, tmax-0-2,	approx. 4 working days	2.6	4	2.8	0.6	30	16	0.1	0.2		To order
RP50.3-20/P04Cright, cm-1, a-2-6, dh6-4, Dmin-2-8, f-0-6, L-34, L1-20, R-0-1, tmax-0-2,	approx. 4 working days	2.6	4	2.8	0.6	34	20	0.1	0.2		To order
RP50.35-10/P04Cright, cm-1, a-3-1, dh6-4, Dmin-3-5, f-1-1, L-24, L1-10, R-0-1, tmax-0-25,	approx. 4 working days	3.1	4	3.5	1.1	24	10	0.1	0.25		To order
RP50.35-16/P04Cright, cm-1, a-3-1, dh6-4, Dmin-3-5, f-1-1, L-30, L1-16, R-0-1, tmax-0-25,	approx. 4 working days	3.1	4	3.5	1.1	30	16	0.1	0.25		To order
RP50.35-20/P04Cright, cm-1, a-3-1, dh6-4, Dmin-3-5, f-1-1, L-34, L1-20, R-0-1, tmax-0-25,	approx. 4 working days	3.1	4	3.5	1.1	34	20	0.1	0.25		To order
RP50.35-24/P04Cright, cm-1, a-3-1, dh6-4, Dmin-3-5, f-1-1, L-38, L1-24, R-0-1, tmax-0-25,	approx. 4 working days	3.1	4	3.5	1.1	38	24	0.1	0.25		To order
RP50.4-10/P04Cright, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-24, L1-10, R-0-1, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	24	10	0.1	0.3		To order
RP50.4-16/P04Cright, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-30, L1-16, R-0-1, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	30	16	0.1	0.3		To order
RP50.4-20/P04Cright, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-34, L1-20, R-0-1, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	34	20	0.1	0.3		To order
RP50.4-24/P04Cright, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-38, L1-24, R-0-1, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	38	24	0.1	0.3		To order
RP50.4-28/P04Cright, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-42, L1-28, R-0-1, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	42	28	0.1	0.3		To order
RP50.5-10/P04Cright, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-25, L1-10, R-0-15, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	25	10	0.15	0.5		To order
RP50.5-15/P04Cright, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-30, L1-15, R-0-15, tmax-0-5,	approx. 2 working days	4.4	5	5	1.9	30	15	0.15	0.5		To order
RP50.5-20/P04Cright, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-35, L1-20, R-0-15, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	35	20	0.15	0.5		To order
RP50.5-25/P04Cright, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-40, L1-25, R-0-15, tmax-0-5,	6 pieces	4.4	5	5	1.9	40	25	0.15	0.5		To order
RP50.5-30/P04Cright, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-45, L1-30, R-0-15, tmax-0-5,	approx. 2 working days	4.4	5	5	1.9	45	30	0.15	0.5		To order
RP50.5-35/P04Cright, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-50, L1-35, R-0-15, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	50	35	0.15	0.5		To order
RP50.5-40/P04Cright, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-55, L1-40, R-0-15, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	55	40	0.15	0.5		To order
RP50.6-15/P04Cright, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-30, L1-15, R-0-15, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	30	15	0.15	0.5		To order
RP50.6-22/P04Cright, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-37, L1-22, R-0-15, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	37	22	0.15	0.5		To order
RP50.6-25/P04Cright, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-40, L1-25, R-0-15, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	40	25	0.15	0.5		To order
RP50.6-30/P04Cright, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-45, L1-30, R-0-15, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	45	30	0.15	0.5		To order
RP50.6-35/P04Cright, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-50, L1-35, R-0-15, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	50	35	0.15	0.5		To order
RP50.6-42/P04Cright, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-57, L1-42, R-0-15, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	57	42	0.15	0.5		To order
RP50.7-20/P04Cright, cm-1, a-6-3, dh6-7, Dmin-6-8, f-2-8, L-35, L1-20, R-0-15, tmax-0-6,	approx. 4 working days	6.3	7	6.8	2.8	35	20	0.15	0.6		To order
RP50.7-25/P04Cright, cm-1, a-6-3, dh6-7, Dmin-6-8, f-2-8, L-40, L1-25, R-0-15, tmax-0-6,	approx. 4 working days	6.3	7	6.8	2.8	40	25	0.15	0.6		To order
RP50.7-30/P04Cright, cm-1, a-6-3, dh6-7, Dmin-6-8, f-2-8, L-45, L1-30, R-0-15, tmax-0-6,	approx. 4 working days	6.3	7	6.8	2.8	45	30	0.15	0.6		To order
RP50.7-35/P04Cright, cm-1, a-6-3, dh6-7, Dmin-6-8, f-2-8, L-50, L1-35, R-0-15, tmax-0-6,	approx. 4 working days	6.3	7	6.8	2.8	50	35	0.15	0.6		To order
RP50.7-40/P04Cright, cm-1, a-6-3, dh6-7, Dmin-6-8, f-2-8, L-55, L1-40, R-0-15, tmax-0-6,	approx. 4 working days	6.3	7	6.8	2.8	55	40	0.15	0.6		To order
RP50.7-45/P04Cright, cm-1, a-6-3, dh6-7, Dmin-6-8, f-2-8, L-60, L1-45, R-0-15, tmax-0-6,	approx. 4 working days	6.3	7	6.8	2.8	60	45	0.15	0.6		To order
RP50.7-50/P04Cright, cm-1, a-6-3, dh6-7, Dmin-6-8, f-2-8, L-65, L1-50, R-0-15, tmax-0-6,	approx. 4 working days	6.3	7	6.8	2.8	65	50	0.15	0.6		To order
