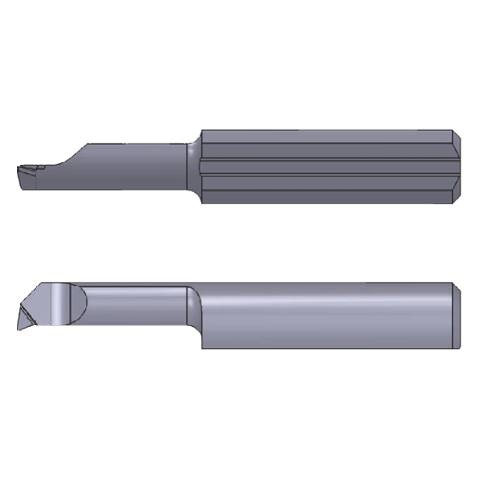

Copy turning cutter type 055

COATED

Ordering by Catalog

Copy turning cutter type 055

Catalog Order List

Execution
- Left
- Right
Grade

Search Start search

	Filter
	Filter
Order Designation	Stock	a	dh6	Dmin	f	L	L1	R	tmax	CAD Data	Selection
L.055.2-10 AL41Fleft, cm-1, a-1-7, dh6-4, Dmin-2, L-24, L1-10, R-0-05, tmax-0-1,	approx. 4 working days	1.7	4	2		24	10	0.05	0.1		To order
L.055.2-15 AL41Fleft, cm-1, a-1-7, dh6-4, Dmin-2, L-29, L1-15, R-0-05, tmax-0-1,	approx. 4 working days	1.7	4	2		29	15	0.05	0.1		To order
L.055.2-5 AL41Fleft, cm-1, a-1-7, dh6-4, Dmin-2, L-19, L1-5, R-0-05, tmax-0-1,	approx. 4 working days	1.7	4	2		19	5	0.05	0.1		To order
L.055.3-10 AL41Fleft, cm-1, a-2-6, dh6-4, Dmin-2-8, f-0-6, L-24, L1-10, R-0-05, tmax-0-2,	approx. 4 working days	2.6	4	2.8	0.6	24	10	0.05	0.2		To order
L.055.3-16 AL41Fleft, cm-1, a-2-6, dh6-4, Dmin-2-8, f-0-6, L-30, L1-16, R-0-05, tmax-0-2,	approx. 2 working days	2.6	4	2.8	0.6	30	16	0.05	0.2		To order
L.055.3-20 AL41Fleft, cm-1, a-2-6, dh6-4, Dmin-2-8, f-0-6, L-34, L1-20, R-0-05, tmax-0-2,	approx. 4 working days	2.6	4	2.8	0.6	34	20	0.05	0.2		To order
L.055.4-10 AL41Fleft, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-24, L1-10, R-0-05, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	24	10	0.05	0.3		To order
L.055.4-16 AL41Fleft, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-30, L1-16, R-0-05, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	30	16	0.05	0.3		To order
L.055.4-20 AL41Fleft, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-34, L1-20, R-0-05, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	34	20	0.05	0.3		To order
L.055.4-24 AL41Fleft, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-38, L1-24, R-0-05, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	38	24	0.05	0.3		To order
L.055.4-28 AL41Fleft, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-42, L1-28, R-0-05, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	42	28	0.05	0.3		To order
L.055.5-10 AL41Fleft, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-25, L1-10, R-0-05, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	25	10	0.05	0.5		To order
L.055.5-15 AL41Fleft, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-30, L1-15, R-0-05, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	30	15	0.05	0.5		To order
L.055.5-20 AL41Fleft, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-35, L1-20, R-0-05, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	35	20	0.05	0.5		To order
L.055.5-25 AL41Fleft, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-40, L1-25, R-0-05, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	40	25	0.05	0.5		To order
L.055.5-30 AL41Fleft, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-45, L1-30, R-0-05, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	45	30	0.05	0.5		To order
L.055.5-35 AL41Fleft, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-50, L1-35, R-0-05, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	50	35	0.05	0.5		To order
L.055.6-15 AL41Fleft, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-30, L1-15, R-0-05, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	30	15	0.05	0.5		To order
L.055.6-22 AL41Fleft, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-37, L1-22, R-0-05, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	37	22	0.05	0.5		To order
L.055.6-25 AL41Fleft, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-40, L1-25, R-0-05, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	40	25	0.05	0.5		To order
L.055.6-30 AL41Fleft, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-45, L1-30, R-0-05, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	45	30	0.05	0.5		To order
L.055.6-35 AL41Fleft, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-50, L1-35, R-0-05, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	50	35	0.05	0.5		To order
L.055.6-42 AL41Fleft, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-57, L1-42, R-0-05, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	57	42	0.05	0.5		To order
R.055.2-10 AL41Fright, cm-1, a-1-7, dh6-4, Dmin-2, L-24, L1-10, R-0-05, tmax-0-1,	approx. 4 working days	1.7	4	2		24	10	0.05	0.1		To order
R.055.2-15 AL41Fright, cm-1, a-1-7, dh6-4, Dmin-2, L-29, L1-15, R-0-05, tmax-0-1,	6 pieces	1.7	4	2		29	15	0.05	0.1		To order
R.055.2-5 AL41Fright, cm-1, a-1-7, dh6-4, Dmin-2, L-19, L1-5, R-0-05, tmax-0-1,	approx. 2 working days	1.7	4	2		19	5	0.05	0.1		To order
R.055.3-10 AL41Fright, cm-1, a-2-6, dh6-4, Dmin-2-8, f-0-6, L-24, L1-10, R-0-05, tmax-0-2,	approx. 2 working days	2.6	4	2.8	0.6	24	10	0.05	0.2		To order
R.055.3-16 AL41Fright, cm-1, a-2-6, dh6-4, Dmin-2-8, f-0-6, L-30, L1-16, R-0-05, tmax-0-2,	approx. 4 working days	2.6	4	2.8	0.6	30	16	0.05	0.2		To order
R.055.3-20 AL41Fright, cm-1, a-2-6, dh6-4, Dmin-2-8, f-0-6, L-34, L1-20, R-0-05, tmax-0-2,	2 pieces	2.6	4	2.8	0.6	34	20	0.05	0.2		To order
R.055.4-10 AL41Fright, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-24, L1-10, R-0-05, tmax-0-3,	approx. 5 working days	3.5	4	4	1.5	24	10	0.05	0.3		To order
R.055.4-16 AL41Fright, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-30, L1-16, R-0-05, tmax-0-3,	approx. 6 working days	3.5	4	4	1.5	30	16	0.05	0.3		To order
R.055.4-20 AL41Fright, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-34, L1-20, R-0-05, tmax-0-3,	approx. 5 working days	3.5	4	4	1.5	34	20	0.05	0.3		To order
R.055.4-24 AL41Fright, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-38, L1-24, R-0-05, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	38	24	0.05	0.3		To order
R.055.4-28 AL41Fright, cm-1, a-3-5, dh6-4, Dmin-4, f-1-5, L-42, L1-28, R-0-05, tmax-0-3,	approx. 4 working days	3.5	4	4	1.5	42	28	0.05	0.3		To order
R.055.5-10 AL41Fright, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-25, L1-10, R-0-05, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	25	10	0.05	0.5		To order
R.055.5-15 AL41Fright, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-30, L1-15, R-0-05, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	30	15	0.05	0.5		To order
R.055.5-20 AL41Fright, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-35, L1-20, R-0-05, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	35	20	0.05	0.5		To order
R.055.5-25 AL41Fright, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-40, L1-25, R-0-05, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	40	25	0.05	0.5		To order
R.055.5-30 AL41Fright, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-45, L1-30, R-0-05, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	45	30	0.05	0.5		To order
R.055.5-35 AL41Fright, cm-1, a-4-4, dh6-5, Dmin-5, f-1-9, L-50, L1-35, R-0-05, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	50	35	0.05	0.5		To order
R.055.5-35 K10Fright, cm-2, a-4-4, dh6-5, Dmin-5, f-1-9, L-50, L1-35, R-0-05, tmax-0-5,	approx. 4 working days	4.4	5	5	1.9	50	35	0.05	0.5		To order
R.055.6-15 AL41Fright, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-30, L1-15, R-0-05, tmax-0-5,	2 pieces	5.3	6	6	2.3	30	15	0.05	0.5		To order
R.055.6-15 K10F, cm-2, a-5-3, dh6-6, Dmin-6, f-2-3, L-30, L1-15, R-0-05, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	30	15	0.05	0.5		To order
R.055.6-22 AL41Fright, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-37, L1-22, R-0-05, tmax-0-5,	3 pieces	5.3	6	6	2.3	37	22	0.05	0.5		To order
R.055.6-25 AL41Fright, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-40, L1-25, R-0-05, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	40	25	0.05	0.5		To order
R.055.6-30 AL41Fright, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-45, L1-30, R-0-05, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	45	30	0.05	0.5		To order
R.055.6-35 AL41Fright, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-50, L1-35, R-0-05, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	50	35	0.05	0.5		To order
R.055.6-42 AL41Fright, cm-1, a-5-3, dh6-6, Dmin-6, f-2-3, L-57, L1-42, R-0-05, tmax-0-5,	approx. 4 working days	5.3	6	6	2.3	57	42	0.05	0.5		To order
