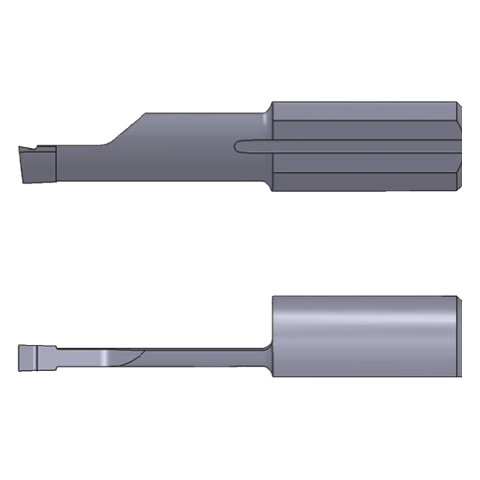

Face-grooving insert axial type 015

COATED TYPE 015

Ordering by Catalog

Face-grooving insert axial type 015

Catalog Order List

Execution
- Left
- Right
Grade

Search Start search

	Filter
	Filter

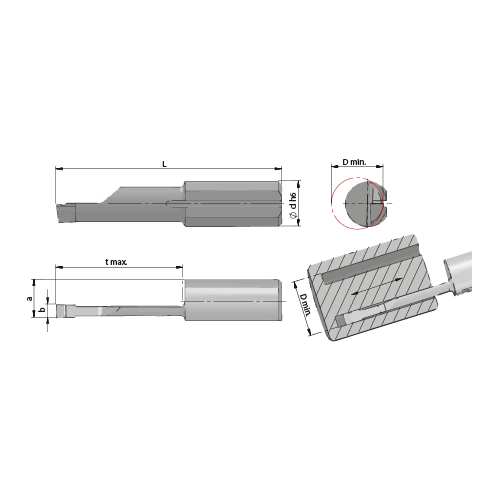

Order Designation	Stock	a	b (+0.05)	dh6	Dmin	L	tmax	CAD Data	Selection
L.015.1515-10 AL41Fleft, cm-1, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-26, tmax-10,	approx. 4 working days	5.9	1.5	7	8	26	10		To order
L.015.1515-10 CN45Fleft, cm-2, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-26, tmax-10,	approx. 4 working days	5.9	1.5	7	8	26	10		To order
L.015.1515-10 K10Fleft, cm-3, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-26, tmax-10,	approx. 2 working days	5.9	1.5	7	8	26	10		To order
L.015.2015-15 AL41Fleft, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-30, tmax-15,	approx. 4 working days	5.9	2	7	8	30	15		To order
L.015.2015-15 CN45Fleft, cm-2, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-30, tmax-15,	approx. 4 working days	5.9	2	7	8	30	15		To order
L.015.2015-20 AL41Fleft, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-35, tmax-20,	approx. 4 working days	5.9	2	7	8	35	20		To order
L.015.2015-20 CN45Fleft, cm-2, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-35, tmax-20,	approx. 4 working days	5.9	2	7	8	35	20		To order
L.015.2015-20 K10Fleft, cm-3, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-35, tmax-20,	approx. 4 working days	5.9	2	7	8	35	20		To order
L.015.2515-20 AL41Fleft, cm-1, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-35, tmax-20,	approx. 4 working days	5.9	2.5	7	8	35	20		To order
L.015.2515-20 CN45Fleft, cm-2, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-35, tmax-20,	approx. 4 working days	5.9	2.5	7	8	35	20		To order
L.015.3015-20 AL41Fleft, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-35, tmax-20,	approx. 4 working days	5.9	3	7	8	35	20		To order
L.015.3015-20 CN45Fleft, cm-2, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-35, tmax-20,	approx. 4 working days	5.9	3	7	8	35	20		To order
L.015.3015-20 K10Fleft, cm-3, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-35, tmax-20,	approx. 4 working days	5.9	3	7	8	35	20		To order
L.015.3015-30 AL41Fleft, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-45, tmax-30,	approx. 2 working days	5.9	3	7	8	45	30		To order
L.015.3015-30 CN45Fleft, cm-2, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-45, tmax-30,	approx. 4 working days	5.9	3	7	8	45	30		To order
R.015.1515-10 AL41Fright, cm-1, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-26, tmax-10,	6 pieces	5.9	1.5	7	8	26	10		To order
R.015.1515-10 CN45Fright, cm-2, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-26, tmax-10,	approx. 2 working days	5.9	1.5	7	8	26	10		To order
R.015.1515-10 K10Fright, cm-3, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-26, tmax-10,	approx. 4 working days	5.9	1.5	7	8	26	10		To order
R.015.2015-15 AL41Fright, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-30, tmax-15,	approx. 4 working days	5.9	2	7	8	30	15		To order
R.015.2015-15 CN45Fright, cm-2, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-30, tmax-15,	approx. 4 working days	5.9	2	7	8	30	15		To order
R.015.2015-20 AL41Fright, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-35, tmax-20,	approx. 2 working days	5.9	2	7	8	35	20		To order
R.015.2015-20 CN45Fright, cm-2, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-35, tmax-20,	approx. 4 working days	5.9	2	7	8	35	20		To order
R.015.2015-20 K10Fright, cm-3, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-35, tmax-20,	approx. 4 working days	5.9	2	7	8	35	20		To order
R.015.2515-20 AL41Fright, cm-1, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-35, tmax-20,	6 pieces	5.9	2.5	7	8	35	20		To order
R.015.2515-20 CN45Fright, cm-2, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-35, tmax-20,	approx. 4 working days	5.9	2.5	7	8	35	20		To order
R.015.3015-20 AL41Fright, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-35, tmax-20,	2 pieces	5.9	3	7	8	35	20		To order
R.015.3015-20 CN45Fright, cm-2, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-35, tmax-20,	approx. 4 working days	5.9	3	7	8	35	20		To order
R.015.3015-20 K10Fright, cm-3, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-35, tmax-20,	approx. 4 working days	5.9	3	7	8	35	20		To order
R.015.3015-30 AL41Fright, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-45, tmax-30,	approx. 4 working days	5.9	3	7	8	45	30		To order
R.015.3015-30 CN45Fright, cm-2, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-45, tmax-30,	approx. 4 working days	5.9	3	7	8	45	30		To order
