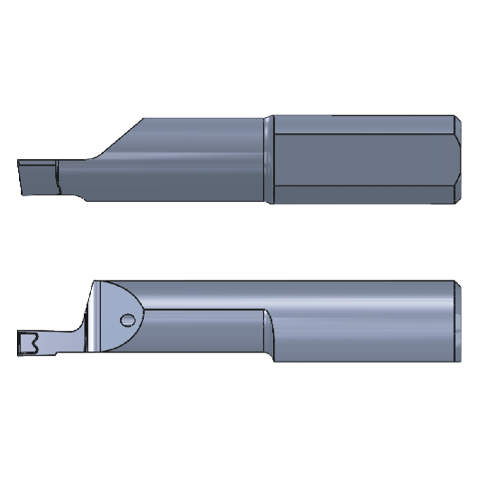

Face grooving insert type 010P

COATED

Ordering by Catalog

Face grooving insert type 010P

Catalog Order List

Execution
- Left
- Right

Search Start search

	Filter
	Filter
Order Designation	Stock	a	b (+0.05)	dh6	Dmin	L	L1	R	tmax	CAD Data	Selection
L010P1508-10 AL41Fleft, cm-1, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-26, L1-11, R-0-1, tmax-3,	approx. 4 working days	5.9	1.5	7	8	26	11	0.1	3		To order
L010P1508-20 AL41Fleft, cm-1, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-35, L1-20, R-0-1, tmax-3,	approx. 4 working days	5.9	1.5	7	8	35	20	0.1	3		To order
L010P1508-30 AL41Fleft, cm-1, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-45, L1-30, R-0-1, tmax-3,	approx. 4 working days	5.9	1.5	7	8	45	30	0.1	3		To order
L010P2008-10 AL41Fleft, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-26, L1-11, R-0-1, tmax-4,	approx. 4 working days	5.9	2	7	8	26	11	0.1	4		To order
L010P2008-20 AL41Fleft, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-35, L1-20, R-0-1, tmax-4,	approx. 4 working days	5.9	2	7	8	35	20	0.1	4		To order
L010P2008-30 AL41Fleft, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-45, L1-30, R-0-1, tmax-4,	approx. 4 working days	5.9	2	7	8	45	30	0.1	4		To order
L010P2508-10 AL41Fleft, cm-1, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-26, L1-11, R-0-1, tmax-5,	approx. 4 working days	5.9	2.5	7	8	26	11	0.1	5		To order
L010P2508-20AL41Fleft, cm-1, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-35, L1-20, R-0-1, tmax-5,	approx. 4 working days	5.9	2.5	7	8	35	20	0.1	5		To order
L010P2508-30AL41Fleft, cm-1, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-45, L1-30, R-0-1, tmax-5,	approx. 4 working days	5.9	2.5	7	8	45	30	0.1	5		To order
L010P3008-10AL41Fleft, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-26, L1-11, R-0-1, tmax-6,	approx. 4 working days	5.9	3	7	8	26	11	0.1	6		To order
L010P3008-20AL41Fleft, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-35, L1-20, R-0-1, tmax-6,	approx. 4 working days	5.9	3	7	8	35	20	0.1	6		To order
L010P3008-30AL41Fleft, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-45, L1-30, R-0-1, tmax-6,	approx. 4 working days	5.9	3	7	8	45	30	0.1	6		To order
R010P1508-10 AL41Fright, cm-1, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-26, L1-11, R-0-1, tmax-3,	approx. 4 working days	5.9	1.5	7	8	26	11	0.1	3		To order
R010P1508-20 AL41Fright, cm-1, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-35, L1-20, R-0-1, tmax-3,	approx. 4 working days	5.9	1.5	7	8	35	20	0.1	3		To order
R010P1508-30 AL41Fright, cm-1, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-45, L1-30, R-0-1, tmax-3,	approx. 4 working days	5.9	1.5	7	8	45	30	0.1	3		To order
R010P2008-10 AL41Fright, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-26, L1-11, R-0-1, tmax-4,	approx. 4 working days	5.9	2	7	8	26	11	0.1	4		To order
R010P2008-20 AL41Fright, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-35, L1-20, R-0-1, tmax-4,	approx. 4 working days	5.9	2	7	8	35	20	0.1	4		To order
R010P2008-30 AL41Fright, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-45, L1-30, R-0-1, tmax-4,	approx. 4 working days	5.9	2	7	8	45	30	0.1	4		To order
R010P2508-10 AL41Fright, cm-1, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-26, L1-11, R-0-1, tmax-5,	approx. 4 working days	5.9	2.5	7	8	26	11	0.1	5		To order
R010P2508-20AL41Fright, cm-1, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-35, L1-20, R-0-1, tmax-5,	approx. 4 working days	5.9	2.5	7	8	35	20	0.1	5		To order
R010P2508-30AL41Fright, cm-1, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-45, L1-30, R-0-1, tmax-5,	approx. 4 working days	5.9	2.5	7	8	45	30	0.1	5		To order
R010P3008-10AL41Fright, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-26, L1-11, R-0-1, tmax-6,	approx. 4 working days	5.9	3	7	8	26	11	0.1	6		To order
R010P3008-20AL41Fright, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-35, L1-20, R-0-1, tmax-6,	approx. 4 working days	5.9	3	7	8	35	20	0.1	6		To order
R010P3008-30AL41Fright, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-45, L1-30, R-0-1, tmax-6,	approx. 4 working days	5.9	3	7	8	45	30	0.1	6		To order
