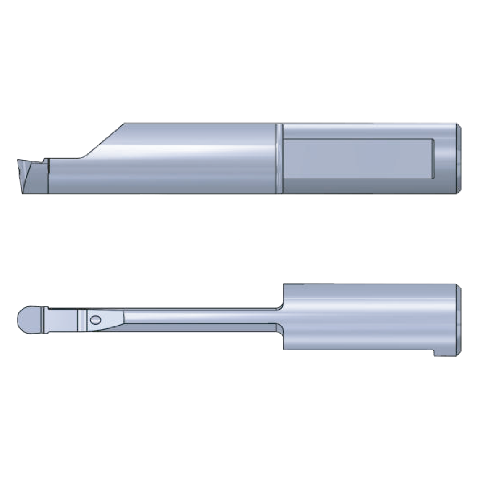

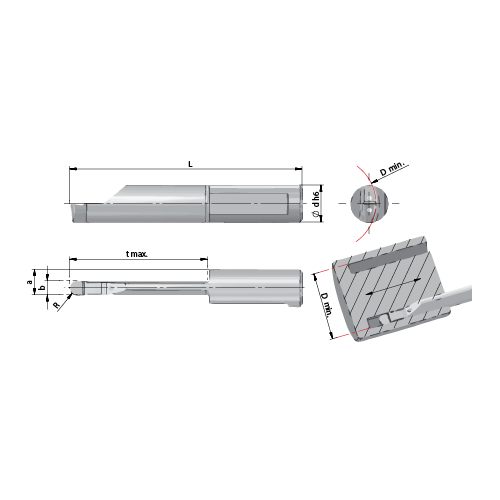

Face grooving insert type 012/020

COATED

Ordering by Catalog

Catalog Order List

	Filter
	Filter
Order Designation	Stock	a	b (+0.05)	dh6	Dmin	L	R	tmax	CAD Data	Selection
L012.2010-15 AL41Fleft, cm-1, a-5, b (+0.05)-2, dh6-8, Dmin-12, L-35, R-1, tmax-15,	approx. 4 working days	5	2	8	12	35	1	15		To order
L012.2512-20 AL41Fleft, cm-1, a-5-25, b (+0.05)-2-5, dh6-8, Dmin-12, L-40, R-1-25, tmax-20,	approx. 4 working days	5.25	2.5	8	12	40	1.25	20		To order
L012.3015-20 AL41Fleft, cm-1, a-5-5, b (+0.05)-3, dh6-8, Dmin-12, L-40, R-1-5, tmax-20,	approx. 4 working days	5.5	3	8	12	40	1.5	20		To order
L020.3015-30 AL41Fleft, cm-1, a-5-5, b (+0.05)-3, dh6-8, Dmin-20, L-50, R-1-5, tmax-30,	approx. 4 working days	5.5	3	8	20	50	1.5	30		To order
L020.4020-30 AL41Fleft, cm-1, a-6, b (+0.05)-4, dh6-8, Dmin-20, L-50, R-2, tmax-30,	approx. 4 working days	6	4	8	20	50	2	30		To order
R012.2010-15 AL41Fright, cm-1, a-5, b (+0.05)-2, dh6-8, Dmin-12, L-35, R-1, tmax-15,	approx. 4 working days	5	2	8	12	35	1	15		To order
R012.2512-20 AL41Fright, cm-1, a-5-25, b (+0.05)-2-5, dh6-8, Dmin-12, L-40, R-1-25, tmax-20,	approx. 4 working days	5.25	2.5	8	12	40	1.25	20		To order
R012.3015-20 AL41Fright, cm-1, a-5-5, b (+0.05)-3, dh6-8, Dmin-12, L-40, R-1-5, tmax-20,	approx. 4 working days	5.5	3	8	12	40	1.5	20		To order
R020.3015-30 AL41Fright, cm-1, a-5-5, b (+0.05)-3, dh6-8, Dmin-20, L-50, R-1-5, tmax-30,	approx. 2 working days	5.5	3	8	20	50	1.5	30		To order
R020.4020-30 AL41Fright, cm-1, a-6, b (+0.05)-4, dh6-8, Dmin-20, L-50, R-2, tmax-30,	approx. 4 working days	6	4	8	20	50	2	30		To order
