Face turning-chamfering cutter type 520

COATED TYPE 520

Ordering by Catalog

Catalog Order List

	Filter
	Filter

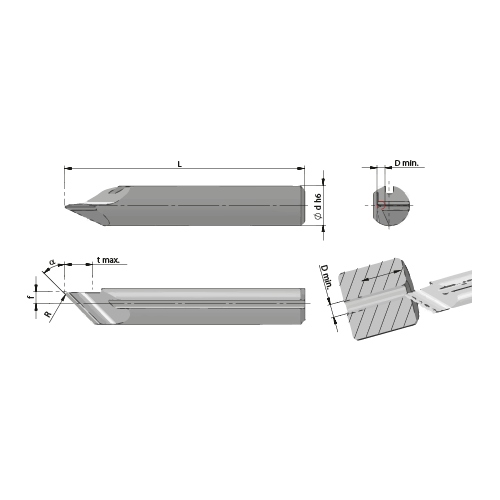

Order Designation	Stock	dh6	Dmin	f	L	R	tmax	α	CAD Data	Selection
L 520 0060-15 K10Fleft, cm-1, dh6-5, Dmin-1, f-1-5, L-30, R-0-2, tmax-4, α-60°,	approx. 4 working days	5	1	1.5	30	0.2	4	60°		To order
L 520.0045-15 AL41Fleft, cm-2, dh6-5, Dmin-1, f-1-5, L-30, R-0-2, tmax-3-5, α-45°,	approx. 4 working days	5	1	1.5	30	0.2	3.5	45°		To order
L 520.0060-15 AL41Fleft, cm-2, dh6-5, Dmin-1, f-1-5, L-30, R-0-2, tmax-4, α-60°,	approx. 4 working days	5	1	1.5	30	0.2	4	60°		To order
R 520 0045-15 AL41Fright, cm-2, dh6-5, Dmin-1, f-1-5, L-30, R-0-2, tmax-3-5, α-45°,	4 pieces	5	1	1.5	30	0.2	3.5	45°		To order
R 520 0060-15 AL41Fright, cm-2, dh6-5, Dmin-1, f-1-5, L-30, R-0-2, tmax-4, α-60°,	6 pieces	5	1	1.5	30	0.2	4	60°		To order
R 520 0060-15 K10Fright, cm-1, dh6-5, Dmin-1, f-1-5, L-30, R-0-2, tmax-4, α-60°,	approx. 4 working days	5	1	1.5	30	0.2	4	60°		To order
