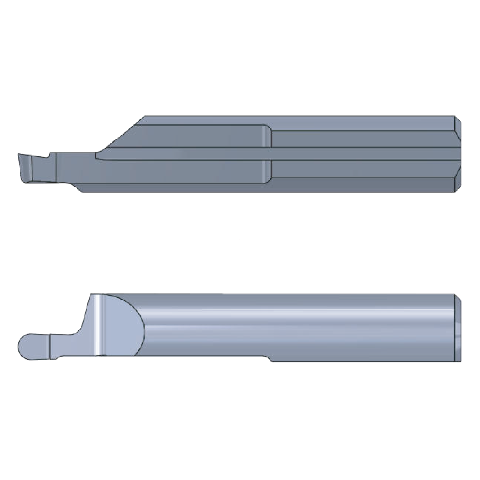

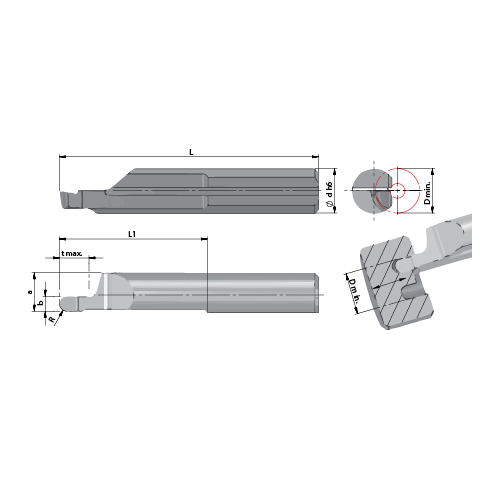

Type 620 Full-Radius Axial Reamer

COATED TYPE 620

Ordering by Catalog

Catalog Order List

	Filter
	Filter
Order Designation	Stock	a	b (+0.05)	dh6	Dmin	L	L1	R	tmax	CAD Data	Selection
L620.1005-20 AL41Fleft, cm-1, a-5-2, b (+0.05)-1, dh6-6, Dmin-6, L-35, L1-20, R-0-5, tmax-2,	approx. 4 working days	5.2	1	6	6	35	20	0.5	2		To order
L620.1608-20 AL41Fleft, cm-1, a-5-2, b (+0.05)-1-6, dh6-7, Dmin-8, L-35, L1-20, R-0-8, tmax-3,	approx. 4 working days	5.2	1.6	7	8	35	20	0.8	3		To order
L620.2010-20 AL41Fleft, cm-1, a-5-2, b (+0.05)-2, dh6-7, Dmin-8, L-35, L1-20, R-1, tmax-4,	approx. 4 working days	5.2	2	7	8	35	20	1	4		To order
L620.2512-20 AL41Fleft, cm-1, a-5-2, b (+0.05)-2-5, dh6-7, Dmin-8, L-35, L1-20, R-1-25, tmax-5,	approx. 4 working days	5.2	2.5	7	8	35	20	1.25	5		To order
L620.3015-20 AL41Fleft, cm-1, a-5-2, b (+0.05)-3, dh6-7, Dmin-8, L-35, L1-20, R-1-5, tmax-6,	approx. 4 working days	5.2	3	7	8	35	20	1.5	6		To order
R620.1005-20 AL41Fright, cm-1, a-5-2, b (+0.05)-1, dh6-6, Dmin-6, L-35, L1-20, R-0-5, tmax-2,	approx. 4 working days	5.2	1	6	6	35	20	0.5	2		To order
R620.1608-20 AL41Fright, cm-1, a-5-2, b (+0.05)-1-6, dh6-7, Dmin-8, L-35, L1-20, R-0-8, tmax-3,	approx. 4 working days	5.2	1.6	7	8	35	20	0.8	3		To order
R620.2010-20 AL41Fright, cm-1, a-5-2, b (+0.05)-2, dh6-7, Dmin-8, L-35, L1-20, R-1, tmax-4,	approx. 4 working days	5.2	2	7	8	35	20	1	4		To order
R620.2512-20 AL41Fright, cm-1, a-5-2, b (+0.05)-2-5, dh6-7, Dmin-8, L-35, L1-20, R-1-25, tmax-5,	approx. 4 working days	5.2	2.5	7	8	35	20	1.25	5		To order
R620.3015-20 AL41Fright, cm-1, a-5-2, b (+0.05)-3, dh6-7, Dmin-8, L-35, L1-20, R-1-5, tmax-6,	approx. 4 working days	5.2	3	7	8	35	20	1.5	6		To order
