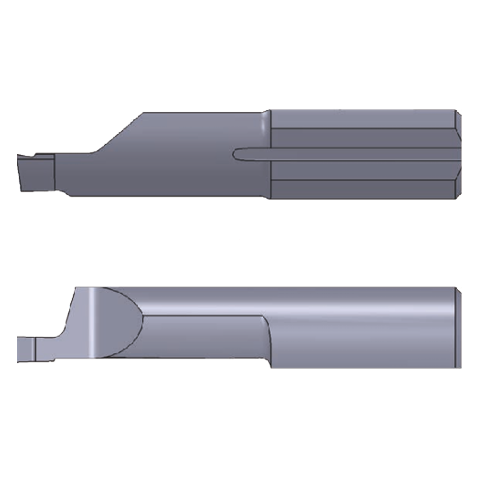

Face-grooving insert type 010

DED

Ordering by Catalog

Face-grooving insert type 010

Catalog Order List

Execution
- Left
- Right
Grade

Search Start search

	Filter
	Filter
Order Designation	Stock	a	b (+0.05)	dh6	Dmin	L	L1	tmax	CAD Data	Selection
L.010.1006-10 AL41Fleft, cm-1, a-5-2, b (+0.05)-1, dh6-6, Dmin-6, L-26, L1-11, tmax-1-5,	approx. 4 working days	5.2	1	6	6	26	11	1.5		To order
L.010.1006-10 CN45Fleft, cm-2, a-5-2, b (+0.05)-1, dh6-6, Dmin-6, L-26, L1-11, tmax-1-5,	approx. 4 working days	5.2	1	6	6	26	11	1.5		To order
L.010.1008-10 AL41Fleft, cm-1, a-5-9, b (+0.05)-1, dh6-7, Dmin-8, L-26, L1-11, tmax-1-5,	approx. 4 working days	5.9	1	7	8	26	11	1.5		To order
L.010.1008-10 CN45Fleft, cm-2, a-5-9, b (+0.05)-1, dh6-7, Dmin-8, L-26, L1-11, tmax-1-5,	approx. 4 working days	5.9	1	7	8	26	11	1.5		To order
L.010.1008-20 AL41Fleft, cm-1, a-5-9, b (+0.05)-1, dh6-7, Dmin-8, L-35, L1-20, tmax-1-5,	approx. 4 working days	5.9	1	7	8	35	20	1.5		To order
L.010.1008-20 CN45Fleft, cm-2, a-5-9, b (+0.05)-1, dh6-7, Dmin-8, L-35, L1-20, tmax-1-5,	approx. 4 working days	5.9	1	7	8	35	20	1.5		To order
L.010.1008-30 AL41Fleft, cm-1, a-5-9, b (+0.05)-1, dh6-7, Dmin-8, L-45, L1-30, tmax-1-5,	approx. 4 working days	5.9	1	7	8	45	30	1.5		To order
L.010.1008-30 CN45Fleft, cm-2, a-5-9, b (+0.05)-1, dh6-7, Dmin-8, L-45, L1-30, tmax-1-5,	approx. 4 working days	5.9	1	7	8	45	30	1.5		To order
L.010.1506-10 AL41Fleft, cm-1, a-5-2, b (+0.05)-1-5, dh6-6, Dmin-6, L-26, L1-11, tmax-2,	approx. 4 working days	5.2	1.5	6	6	26	11	2		To order
L.010.1506-10 CN45Fleft, cm-2, a-5-2, b (+0.05)-1-5, dh6-6, Dmin-6, L-26, L1-11, tmax-2,	approx. 4 working days	5.2	1.5	6	6	26	11	2		To order
L.010.1508-10 AL41Fleft, cm-1, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-26, L1-11, tmax-2-5,	approx. 4 working days	5.9	1.5	7	8	26	11	2.5		To order
L.010.1508-10 CN45Fleft, cm-2, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-26, L1-11, tmax-2-5,	approx. 4 working days	5.9	1.5	7	8	26	11	2.5		To order
L.010.1508-20 AL41Fleft, cm-1, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-35, L1-20, tmax-2-5,	approx. 4 working days	5.9	1.5	7	8	35	20	2.5		To order
L.010.1508-20 CN45Fleft, cm-2, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-35, L1-20, tmax-2-5,	approx. 4 working days	5.9	1.5	7	8	35	20	2.5		To order
L.010.1508-30 AL41Fleft, cm-1, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-45, L1-30, tmax-2-5,	approx. 4 working days	5.9	1.5	7	8	45	30	2.5		To order
L.010.1508-30 CN45Fleft, cm-2, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-45, L1-30, tmax-2-5,	approx. 4 working days	5.9	1.5	7	8	45	30	2.5		To order
L.010.2008-10 AL41Fleft, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-26, L1-11, tmax-3,	approx. 4 working days	5.9	2	7	8	26	11	3		To order
L.010.2008-10 CN45Fleft, cm-2, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-26, L1-11, tmax-3,	approx. 4 working days	5.9	2	7	8	26	11	3		To order
L.010.2008-20 AL41Fleft, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-35, L1-20, tmax-3,	approx. 4 working days	5.9	2	7	8	35	20	3		To order
L.010.2008-20 CN45Fleft, cm-2, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-35, L1-20, tmax-3,	1 piece	5.9	2	7	8	35	20	3		To order
L.010.2008-30 AL41Fleft, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-45, L1-30, tmax-3,	approx. 4 working days	5.9	2	7	8	45	30	3		To order
L.010.2008-30 CN45Fleft, cm-2, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-45, L1-30, tmax-3,	approx. 4 working days	5.9	2	7	8	45	30	3		To order
L.010.2508-10 AL41Fleft, cm-1, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-26, L1-11, tmax-3-5,	approx. 4 working days	5.9	2.5	7	8	26	11	3.5		To order
L.010.2508-10 CN45Fleft, cm-2, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-26, L1-11, tmax-3-5,	approx. 4 working days	5.9	2.5	7	8	26	11	3.5		To order
L.010.2508-20 AL41Fleft, cm-1, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-35, L1-20, tmax-3-5,	approx. 4 working days	5.9	2.5	7	8	35	20	3.5		To order
L.010.2508-20 CN45Fleft, cm-2, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-35, L1-20, tmax-3-5,	approx. 4 working days	5.9	2.5	7	8	35	20	3.5		To order
L.010.2508-30 AL41Fleft, cm-1, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-45, L1-30, tmax-3-5,	approx. 4 working days	5.9	2.5	7	8	45	30	3.5		To order
L.010.2508-30 CN45Fleft, cm-2, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-45, L1-30, tmax-3-5,	approx. 4 working days	5.9	2.5	7	8	45	30	3.5		To order
L.010.3008-10 AL41Fleft, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-26, L1-11, tmax-3-5,	approx. 4 working days	5.9	3	7	8	26	11	3.5		To order
L.010.3008-10 CN45Fleft, cm-2, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-26, L1-11, tmax-3-5,	approx. 4 working days	5.9	3	7	8	26	11	3.5		To order
L.010.3008-20 AL41Fleft, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-35, L1-20, tmax-3-5,	approx. 4 working days	5.9	3	7	8	35	20	3.5		To order
L.010.3008-20 CN45Fleft, cm-2, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-35, L1-20, tmax-3-5,	approx. 4 working days	5.9	3	7	8	35	20	3.5		To order
L.010.3008-30 AL41Fleft, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-45, L1-30, tmax-3-5,	approx. 4 working days	5.9	3	7	8	45	30	3.5		To order
L.010.3008-30 CN45Fleft, cm-2, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-45, L1-30, tmax-3-5,	approx. 4 working days	5.9	3	7	8	45	30	3.5		To order
R.010.1006-10 AL41Fright, cm-1, a-5-2, b (+0.05)-1, dh6-6, Dmin-6, L-26, L1-11, tmax-1-5,	approx. 4 working days	5.2	1	6	6	26	11	1.5		To order
R.010.1006-10 CN45Fright, cm-2, a-5-2, b (+0.05)-1, dh6-6, Dmin-6, L-26, L1-11, tmax-1-5,	approx. 4 working days	5.2	1	6	6	26	11	1.5		To order
R.010.1008-10 AL41Fright, cm-1, a-5-9, b (+0.05)-1, dh6-7, Dmin-8, L-26, L1-11, tmax-1-5,	approx. 2 working days	5.9	1	7	8	26	11	1.5		To order
R.010.1008-10 CN45Fright, cm-2, a-5-9, b (+0.05)-1, dh6-7, Dmin-8, L-26, L1-11, tmax-1-5,	approx. 4 working days	5.9	1	7	8	26	11	1.5		To order
R.010.1008-20 AL41Fright, cm-1, a-5-9, b (+0.05)-1, dh6-7, Dmin-8, L-35, L1-20, tmax-1-5,	approx. 4 working days	5.9	1	7	8	35	20	1.5		To order
R.010.1008-20 CN45Fright, cm-2, a-5-9, b (+0.05)-1, dh6-7, Dmin-8, L-35, L1-20, tmax-1-5,	approx. 4 working days	5.9	1	7	8	35	20	1.5		To order
R.010.1008-30 AL41Fright, cm-1, a-5-9, b (+0.05)-1, dh6-7, Dmin-8, L-45, L1-30, tmax-1-5,	approx. 4 working days	5.9	1	7	8	45	30	1.5		To order
R.010.1008-30 CN45Fright, cm-2, a-5-9, b (+0.05)-1, dh6-7, Dmin-8, L-45, L1-30, tmax-1-5,	approx. 4 working days	5.9	1	7	8	45	30	1.5		To order
R.010.1506-10 AL41Fright, cm-1, a-5-2, b (+0.05)-1-5, dh6-6, Dmin-6, L-26, L1-11, tmax-2,	approx. 4 working days	5.2	1.5	6	6	26	11	2		To order
R.010.1506-10 CN45Fright, cm-2, a-5-2, b (+0.05)-1-5, dh6-6, Dmin-6, L-26, L1-11, tmax-2,	approx. 4 working days	5.2	1.5	6	6	26	11	2		To order
R.010.1508-10 AL41Fright, cm-1, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-26, L1-11, tmax-2-5,	approx. 4 working days	5.9	1.5	7	8	26	11	2.5		To order
R.010.1508-10 CN45Fright, cm-2, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-26, L1-11, tmax-2-5,	approx. 3 working days	5.9	1.5	7	8	26	11	2.5		To order
R.010.1508-20 AL41Fright, cm-1, a-5-9, b (+0.05)-15, dh6-7, Dmin-8, L-35, L1-20, tmax-2-5,	approx. 4 working days	5.9	15	7	8	35	20	2.5		To order
R.010.1508-20 CN45Fright, cm-2, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-35, L1-20, tmax-2-5,	approx. 4 working days	5.9	1.5	7	8	35	20	2.5		To order
R.010.1508-30 AL41Fright, cm-1, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-45, L1-30, tmax-2-5,	approx. 4 working days	5.9	1.5	7	8	45	30	2.5		To order
R.010.1508-30 CN45Fright, cm-2, a-5-9, b (+0.05)-1-5, dh6-7, Dmin-8, L-45, L1-30, tmax-2-5,	approx. 4 working days	5.9	1.5	7	8	45	30	2.5		To order
R.010.2008-10 AL41Fright, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-26, L1-11, tmax-3,	2 pieces	5.9	2	7	8	26	11	3		To order
R.010.2008-10 CN45Fright, cm-2, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-26, L1-11, tmax-3,	approx. 4 working days	5.9	2	7	8	26	11	3		To order
R.010.2008-20 AL41Fright, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-35, L1-20, tmax-3,	approx. 4 working days	5.9	2	7	8	35	20	3		To order
R.010.2008-20 CN45Fright, cm-2, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-35, L1-20, tmax-3,	2 pieces	5.9	2	7	8	35	20	3		To order
R.010.2008-30 AL41Fright, cm-1, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-45, L1-30, tmax-3,	approx. 4 working days	5.9	2	7	8	45	30	3		To order
R.010.2008-30 CN45Fright, cm-2, a-5-9, b (+0.05)-2, dh6-7, Dmin-8, L-45, L1-30, tmax-3,	approx. 4 working days	5.9	2	7	8	45	30	3		To order
R.010.2508-10 AL41Fright, cm-1, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-26, L1-11, tmax-3-5,	2 pieces	5.9	2.5	7	8	26	11	3.5		To order
R.010.2508-10 CN45Fright, cm-2, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-26, L1-11, tmax-3-5,	approx. 2 working days	5.9	2.5	7	8	26	11	3.5		To order
R.010.2508-20 AL41Fright, cm-1, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-35, L1-20, tmax-3-5,	approx. 4 working days	5.9	2.5	7	8	35	20	3.5		To order
R.010.2508-20 CN45Fright, cm-2, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-35, L1-20, tmax-3-5,	approx. 4 working days	5.9	2.5	7	8	35	20	3.5		To order
R.010.2508-30 AL41Fright, cm-1, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-45, L1-30, tmax-3-5,	approx. 4 working days	5.9	2.5	7	8	45	30	3.5		To order
R.010.2508-30 CN45Fright, cm-2, a-5-9, b (+0.05)-2-5, dh6-7, Dmin-8, L-45, L1-30, tmax-3-5,	approx. 4 working days	5.9	2.5	7	8	45	30	3.5		To order
R.010.3008-10 AL41Fright, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-26, L1-11, tmax-3-5,	approx. 4 working days	5.9	3	7	8	26	11	3.5		To order
R.010.3008-10 CN45Fright, cm-2, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-26, L1-11, tmax-3-5,	approx. 4 working days	5.9	3	7	8	26	11	3.5		To order
R.010.3008-20 AL41Fright, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-35, L1-20, tmax-3-5,	approx. 4 working days	5.9	3	7	8	35	20	3.5		To order
R.010.3008-20 CN45Fright, cm-2, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-35, L1-20, tmax-3-5,	approx. 4 working days	5.9	3	7	8	35	20	3.5		To order
R.010.3008-30 AL41Fright, cm-1, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-45, L1-30, tmax-3-5,	approx. 4 working days	5.9	3	7	8	45	30	3.5		To order
R.010.3008-30 CN45Fright, cm-2, a-5-9, b (+0.05)-3, dh6-7, Dmin-8, L-45, L1-30, tmax-3-5,	approx. 4 working days	5.9	3	7	8	45	30	3.5		To order
