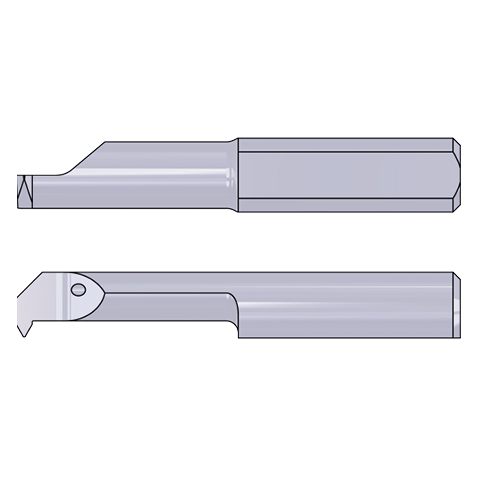

Threading cutter PL metric ISO-thread PP

PARTIAL PROFILE

Ordering by Catalog

Threading cutter PL metric ISO-thread PP

Catalog Order List

Execution
- Left
- Right

Search Start search

	Filter
	Filter
Order Designation	Stock	a	b	dh6	Dmin	E	f	L	L1	P	Regular thread	t	CAD Data	Selection
LP02.0204-5/P04Cleft, cm-1, a-1-4, b-0-05, dh6-4, Dmin-1-56, E-0-2, L-20, L1-5, P-0-4-0-45, Regular thread-M2, t-0-22,	approx. 4 working days	1.4	0.05	4	1.56	0.2		20	5	0.4-0.45	M2	0.22		To order
LP02.02045-6/P04Cleft, cm-1, a-1-45, b-0-06, dh6-4, Dmin-1-7, E-0-22, L-22, L1-6, P-0-45-0-5, Regular thread-M2-5, t-0-24,	approx. 4 working days	1.45	0.06	4	1.7	0.22		22	6	0.45-0.5	M2.5	0.24		To order
LP03.0105-8/P04Cleft, cm-1, a-2-3, b-0-04, dh6-4, Dmin-2-4, E-0-33, f-0-3, L-22, L1-8, P-0-5-0-7, Regular thread-M3, t-0-27,	approx. 4 working days	2.3	0.04	4	2.4	0.33	0.3	22	8	0.5-0.7	M3	0.27		To order
LP04.0105-10/P04Cleft, cm-1, a-3, b-0-09, dh6-4, Dmin-3-2, E-0-44, f-1, L-24, L1-10, P-0-5-0-75, t-0-27,	approx. 4 working days	3	0.09	4	3.2	0.44	1	24	10	0.5-0.75		0.27		To order
LP04.0205-15/P04Cleft, cm-1, a-3-5, b-0-06, dh6-4, Dmin-4, E-0-35, f-1-5, L-30, L1-15, P-0-5-0-75, t-0-27,	approx. 4 working days	3.5	0.06	4	4	0.35	1.5	30	15	0.5-0.75		0.27		To order
LP04.0307-10/P04Cleft, cm-1, a-2-9, b-0-09, dh6-4, Dmin-3-2, E-0-32, f-0-9, L-24, L1-10, P-0-7-0-8, Regular thread-M4, t-0-38,	approx. 4 working days	2.9	0.09	4	3.2	0.32	0.9	24	10	0.7-0.8	M4	0.38		To order
LP04.0408-15/P04Cleft, cm-1, a-3-5, b-0-1, dh6-4, Dmin-4, E-0-45, f-1-5, L-30, L1-15, P-0-8-1-0, Regular thread-M5, t-0-43,	approx. 4 working days	3.5	0.1	4	4	0.45	1.5	30	15	0.8-1.0	M5	0.43		To order
LP05.0205-15/P04Cleft, cm-1, a-4-4, b-0-06, dh6-5, Dmin-5, E-0-35, f-1-9, L-30, L1-15, P-0-5-0-75, t-0-27,	approx. 4 working days	4.4	0.06	5	5	0.35	1.9	30	15	0.5-0.75		0.27		To order
LP05.0205-20/P04Cleft, cm-1, a-4-4, b-0-06, dh6-5, Dmin-5, E-0-35, f-1-9, L-35, L1-20, P-0-5-0-75, t-0-27,	approx. 4 working days	4.4	0.06	5	5	0.35	1.9	35	20	0.5-0.75		0.27		To order
LP05.0407-15/P04Cleft, cm-1, a-4-4, b-0-09, dh6-5, Dmin-5, E-0-45, f-1-9, L-30, L1-15, P-0-75-1-0, t-0-4,	approx. 4 working days	4.4	0.09	5	5	0.45	1.9	30	15	0.75-1.0		0.4		To order
LP05.0407-20/P04Cleft, cm-1, a-4-4, b-0-09, dh6-5, Dmin-5, E-0-45, f-1-9, L-35, L1-20, P-0-75-1-0, t-0-4,	approx. 4 working days	4.4	0.09	5	5	0.45	1.9	35	20	0.75-1.0		0.4		To order
LP05.0510-15/P04Cleft, cm-1, a-4-4, b-0-12, dh6-5, Dmin-5, E-0-55, f-1-9, L-30, L1-15, P-1-0-1-25, Regular thread-M6, t-0-55,	approx. 4 working days	4.4	0.12	5	5	0.55	1.9	30	15	1.0-1.25	M6	0.55		To order
LP05.0510-20/P04Cleft, cm-1, a-4-4, b-0-12, dh6-5, Dmin-5, E-0-55, f-1-9, L-35, L1-20, P-1-0-1-25, Regular thread-M6, t-0-55,	approx. 4 working days	4.4	0.12	5	5	0.55	1.9	35	20	1.0-1.25	M6	0.55		To order
LP06.0510-15/P04Cleft, cm-1, a-5-3, b-0-12, dh6-6, Dmin-6, E-0-55, f-2-3, L-30, L1-15, P-1-0-1-25, t-0-55,	approx. 4 working days	5.3	0.12	6	6	0.55	2.3	30	15	1.0-1.25		0.55		To order
LP06.0510-22/P04Cleft, cm-1, a-5-3, b-0-12, dh6-6, Dmin-6, E-0-55, f-2-3, L-37, L1-22, P-1-0-1-25, t-0-55,	approx. 4 working days	5.3	0.12	6	6	0.55	2.3	37	22	1.0-1.25		0.55		To order
LP06.0612-15/P04Cleft, cm-1, a-5-3, b-0-15, dh6-6, Dmin-6, E-0-65, f-2-3, L-30, L1-15, P-1-25-1-5, Regular thread-M8, t-0-68,	approx. 4 working days	5.3	0.15	6	6	0.65	2.3	30	15	1.25-1.5	M8	0.68		To order
LP06.0612-22/P04Cleft, cm-1, a-5-3, b-0-15, dh6-6, Dmin-6, E-0-65, f-2-3, L-37, L1-22, P-1-25-1-5, Regular thread-M8, t-0-68,	approx. 4 working days	5.3	0.15	6	6	0.65	2.3	37	22	1.25-1.5	M8	0.68		To order
LP06.0815-15/P04Cleft, cm-1, a-5-3, b-0-18, dh6-6, Dmin-6, E-0-75, f-2-3, L-30, L1-15, P-1-5-1-75, Regular thread-M10, t-0-81,	approx. 4 working days	5.3	0.18	6	6	0.75	2.3	30	15	1.5-1.75	M10	0.81		To order
LP06.0815-22/P04Cleft, cm-1, a-5-3, b-0-18, dh6-6, Dmin-6, E-0-75, f-2-3, L-37, L1-22, P-1-5-1-75, Regular thread-M10, t-0-81,	approx. 4 working days	5.3	0.18	6	6	0.75	2.3	37	22	1.5-1.75	M10	0.81		To order
LP07.0815-15/P04Cleft, cm-1, a-6-3, b-0-18, dh6-7, Dmin-7, E-0-75, f-2-7, L-30, L1-15, P-1-5-1-75, Regular thread-M10, t-0-81,	approx. 4 working days	6.3	0.18	7	7	0.75	2.7	30	15	1.5-1.75	M10	0.81		To order
LP07.0815-25/P04Cleft, cm-1, a-6-3, b-0-18, dh6-7, Dmin-7, E-0-75, f-2-7, L-40, L1-25, P-1-5-1-75, Regular thread-M10, t-0-81,	approx. 4 working days	6.3	0.18	7	7	0.75	2.7	40	25	1.5-1.75	M10	0.81		To order
RP02.0204-5/P04Cright, cm-1, a-1-4, b-0-05, dh6-4, Dmin-1-56, E-0-2, L-20, L1-5, P-0-4-0-45, Regular thread-M2, t-0-22,	approx. 4 working days	1.4	0.05	4	1.56	0.2		20	5	0.4-0.45	M2	0.22		To order
RP02.02045-6/P04Cright, cm-1, a-1-45, b-0-06, dh6-4, Dmin-1-7, E-0-22, L-22, L1-6, P-0-45-0-5, Regular thread-M2-5, t-0-24,	approx. 4 working days	1.45	0.06	4	1.7	0.22		22	6	0.45-0.5	M2.5	0.24		To order
RP03.0105-8/P04Cright, cm-1, a-2-3, b-0-04, dh6-4, Dmin-2-4, E-0-33, f-0-3, L-22, L1-8, P-0-5-0-7, Regular thread-M3, t-0-27,	approx. 4 working days	2.3	0.04	4	2.4	0.33	0.3	22	8	0.5-0.7	M3	0.27		To order
RP04.0105-10/P04Cright, cm-1, a-3, b-0-09, dh6-4, Dmin-3-2, E-0-44, f-1, L-24, L1-10, P-0-5-0-75, t-0-27,	approx. 4 working days	3	0.09	4	3.2	0.44	1	24	10	0.5-0.75		0.27		To order
RP04.0205-15/P04Cright, cm-1, a-3-5, b-0-06, dh6-4, Dmin-4, E-0-35, f-1-5, L-30, L1-15, P-0-5-0-75, t-0-27,	approx. 4 working days	3.5	0.06	4	4	0.35	1.5	30	15	0.5-0.75		0.27		To order
RP04.0307-10/P04Cright, cm-1, a-2-9, b-0-09, dh6-4, Dmin-3-2, E-0-32, f-0-9, L-24, L1-10, P-0-7-0-8, Regular thread-M4, t-0-38,	approx. 4 working days	2.9	0.09	4	3.2	0.32	0.9	24	10	0.7-0.8	M4	0.38		To order
RP04.0408-15/P04Cright, cm-1, a-3-5, b-0-1, dh6-4, Dmin-4, E-0-45, f-1-5, L-30, L1-15, P-0-8-1-0, Regular thread-M5, t-0-43,	approx. 4 working days	3.5	0.1	4	4	0.45	1.5	30	15	0.8-1.0	M5	0.43		To order
RP05.0205-15/P04Cright, cm-1, a-4-4, b-0-06, dh6-5, Dmin-5, E-0-35, f-1-9, L-30, L1-15, P-0-5-0-75, t-0-27,	approx. 4 working days	4.4	0.06	5	5	0.35	1.9	30	15	0.5-0.75		0.27		To order
RP05.0205-20/P04Cright, cm-1, a-4-4, b-0-06, dh6-5, Dmin-5, E-0-35, f-1-9, L-35, L1-20, P-0-5-0-75, t-0-27,	approx. 4 working days	4.4	0.06	5	5	0.35	1.9	35	20	0.5-0.75		0.27		To order
RP05.0407-15/P04Cright, cm-1, a-4-4, b-0-09, dh6-5, Dmin-5, E-0-45, f-1-9, L-30, L1-15, P-0-75-1-0, t-0-4,	approx. 4 working days	4.4	0.09	5	5	0.45	1.9	30	15	0.75-1.0		0.4		To order
RP05.0407-20/P04Cright, cm-1, a-4-4, b-0-09, dh6-5, Dmin-5, E-0-45, f-1-9, L-35, L1-20, P-0-75-1-0, t-0-4,	approx. 4 working days	4.4	0.09	5	5	0.45	1.9	35	20	0.75-1.0		0.4		To order
RP05.0510-15/P04Cright, cm-1, a-4-4, b-0-12, dh6-5, Dmin-5, E-0-55, f-1-9, L-30, L1-15, P-1-0-1-25, Regular thread-M6, t-0-55,	approx. 4 working days	4.4	0.12	5	5	0.55	1.9	30	15	1.0-1.25	M6	0.55		To order
RP05.0510-20/P04Cright, cm-1, a-4-4, b-0-12, dh6-5, Dmin-5, E-0-55, f-1-9, L-35, L1-20, P-1-0-1-25, Regular thread-M6, t-0-55,	approx. 4 working days	4.4	0.12	5	5	0.55	1.9	35	20	1.0-1.25	M6	0.55		To order
RP06.0510-15/P04Cright, cm-1, a-5-3, b-0-12, dh6-6, Dmin-6, E-0-55, f-2-3, L-30, L1-15, P-1-0-1-25, t-0-55,	approx. 4 working days	5.3	0.12	6	6	0.55	2.3	30	15	1.0-1.25		0.55		To order
RP06.0510-22/P04Cright, cm-1, a-5-3, b-0-12, dh6-6, Dmin-6, E-0-55, f-2-3, L-37, L1-22, P-1-0-1-25, t-0-55,	approx. 4 working days	5.3	0.12	6	6	0.55	2.3	37	22	1.0-1.25		0.55		To order
RP06.0612-15/P04Cright, cm-1, a-5-3, b-0-15, dh6-6, Dmin-6, E-0-65, f-2-3, L-30, L1-15, P-1-25-1-5, Regular thread-M8, t-0-68,	approx. 4 working days	5.3	0.15	6	6	0.65	2.3	30	15	1.25-1.5	M8	0.68		To order
RP06.0612-22/P04Cright, cm-1, a-5-3, b-0-15, dh6-6, Dmin-6, E-0-65, f-2-3, L-37, L1-22, P-1-25-1-5, Regular thread-M8, t-0-68,	approx. 4 working days	5.3	0.15	6	6	0.65	2.3	37	22	1.25-1.5	M8	0.68		To order
RP06.0815-15/P04Cright, cm-1, a-5-3, b-0-18, dh6-6, Dmin-6, E-0-75, f-2-3, L-30, L1-15, P-1-5-1-75, Regular thread-M10, t-0-81,	approx. 4 working days	5.3	0.18	6	6	0.75	2.3	30	15	1.5-1.75	M10	0.81		To order
RP06.0815-22/P04Cright, cm-1, a-5-3, b-0-18, dh6-6, Dmin-6, E-0-75, f-2-3, L-37, L1-22, P-1-5-1-75, Regular thread-M10, t-0-81,	approx. 4 working days	5.3	0.18	6	6	0.75	2.3	37	22	1.5-1.75	M10	0.81		To order
RP07.0815-15/P04Cright, cm-1, a-6-3, b-0-18, dh6-7, Dmin-7, E-0-75, f-2-7, L-30, L1-15, P-1-5-1-75, Regular thread-M10, t-0-81,	approx. 4 working days	6.3	0.18	7	7	0.75	2.7	30	15	1.5-1.75	M10	0.81		To order
RP07.0815-25/P04Cright, cm-1, a-6-3, b-0-18, dh6-7, Dmin-7, E-0-75, f-2-7, L-40, L1-25, P-1-5-1-75, Regular thread-M10, t-0-81,	approx. 4 working days	6.3	0.18	7	7	0.75	2.7	40	25	1.5-1.75	M10	0.81		To order
