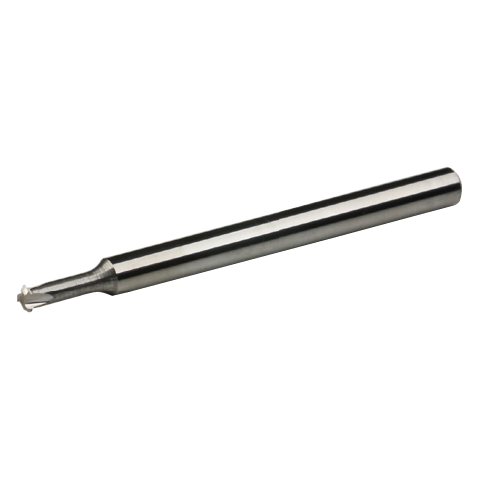

Thread milling cutter WHC UNC short version

ANSI 1 Z. SERIES

Ordering by Catalog

Thread milling cutter WHC UNC short version

Catalog Order List

Grade

Search Start search

	Filter
	Filter
Order Designation	Stock	ANSIB11	d0	d1	d2	d3	d3 Tol	l0	l1	P	P (T/Inch)	α	CAD Data	Selection
WHC 338-01-64 UNC UHM20, cm-1, d0-3, d1-1-36, d2-0-81, d3-1-5, d3 Tol-0/+0-04, l0-38, l1-4-2, P-0-397, P (T/Inch)-64, α-60°,	about 2 weeks	1-64	3	1.36	0.81	1.5	0/+0.04	38	4.2	0.397	64	60°		To order
WHC 338-01-64 UNC UHM20 HX, cm-2, d0-3, d1-1-36, d2-0-81, d3-1-5, d3 Tol-0/+0-04, l0-38, l1-4-2, P-0-397, P (T/Inch)-64, α-60°,	about 2 weeks	1-64	3	1.36	0.81	1.5	0/+0.04	38	4.2	0.397	64	60°		To order
WHC 338-01-64 UNC UHM20 TX+, cm-3, d0-3, d1-1-36, d2-0-81, d3-1-5, d3 Tol-0/+0-04, l0-38, l1-4-2, P-0-397, P (T/Inch)-64, α-60°,	about 2 weeks	1-64	3	1.36	0.81	1.5	0/+0.04	38	4.2	0.397	64	60°		To order
WHC 338-02-56 UNC UHM20, cm-1, d0-3, d1-1-62, d2-1, d3-1-78, d3 Tol-0/+0-05, l0-38, l1-4-9, P-0-454, P (T/Inch)-56, α-60°,	2 pieces	2-56	3	1.62	1	1.78	0/+0.05	38	4.9	0.454	56	60°		To order
WHC 338-02-56 UNC UHM20 HX, cm-2, d0-3, d1-1-62, d2-1, d3-1-78, d3 Tol-0/+0-05, l0-38, l1-4-9, P-0-454, P (T/Inch)-56, α-60°,	about 2 weeks	2-56	3	1.62	1	1.78	0/+0.05	38	4.9	0.454	56	60°		To order
WHC 338-02-56 UNC UHM20 TX+, cm-3, d0-3, d1-1-62, d2-1, d3-1-78, d3 Tol-0/+0-05, l0-38, l1-4-9, P-0-454, P (T/Inch)-56, α-60°,	about 2 weeks	2-56	3	1.62	1	1.78	0/+0.05	38	4.9	0.454	56	60°		To order
WHC 338-03-48 UNC UHM20, cm-1, d0-3, d1-1-86, d2-1-15, d3-2-05, d3 Tol-0/+0-05, l0-38, l1-5-7, P-0-529, P (T/Inch)-48, α-60°,	about 2 weeks	3-48	3	1.86	1.15	2.05	0/+0.05	38	5.7	0.529	48	60°		To order
WHC 338-03-48 UNC UHM20 HX, cm-2, d0-3, d1-1-86, d2-1-15, d3-2-05, d3 Tol-0/+0-05, l0-38, l1-5-7, P-0-529, P (T/Inch)-48, α-60°,	about 2 weeks	3-48	3	1.86	1.15	2.05	0/+0.05	38	5.7	0.529	48	60°		To order
WHC 338-03-48 UNC UHM20 TX+, cm-3, d0-3, d1-1-86, d2-1-15, d3-2-05, d3 Tol-0/+0-05, l0-38, l1-5-7, P-0-529, P (T/Inch)-48, α-60°,	about 2 weeks	3-48	3	1.86	1.15	2.05	0/+0.05	38	5.7	0.529	48	60°		To order
WHC 442-04-40 UNC UHM20, cm-1, d0-4, d1-2-06, d2-1-22, d3-2-27, d3 Tol-0/+0-06, l0-42, l1-6-7, P-0-635, P (T/Inch)-40, α-60°,	2 pieces	4-40	4	2.06	1.22	2.27	0/+0.06	42	6.7	0.635	40	60°		To order
WHC 442-04-40 UNC UHM20 HX, cm-2, d0-4, d1-2-06, d2-1-22, d3-2-27, d3 Tol-0/+0-06, l0-42, l1-6-7, P-0-635, P (T/Inch)-40, α-60°,	3 pieces	4-40	4	2.06	1.22	2.27	0/+0.06	42	6.7	0.635	40	60°		To order
WHC 442-04-40 UNC UHM20 TX+, cm-3, d0-4, d1-2-06, d2-1-22, d3-2-27, d3 Tol-0/+0-06, l0-42, l1-6-7, P-0-635, P (T/Inch)-40, α-60°,	about 2 weeks	4-40	4	2.06	1.22	2.27	0/+0.06	42	6.7	0.635	40	60°		To order
WHC 442-05-40 UNC UHM20, cm-1, d0-4, d1-2-39, d2-1-55, d3-2-59, d3 Tol-0/+0-06, l0-42, l1-7, P-0-635, P (T/Inch)-40, α-60°,	about 2 weeks	5-40	4	2.39	1.55	2.59	0/+0.06	42	7	0.635	40	60°		To order
WHC 442-05-40 UNC UHM20 HX, cm-2, d0-4, d1-2-39, d2-1-55, d3-2-59, d3 Tol-0/+0-06, l0-42, l1-7, P-0-635, P (T/Inch)-40, α-60°,	about 2 weeks	5-40	4	2.39	1.55	2.59	0/+0.06	42	7	0.635	40	60°		To order
WHC 442-05-40 UNC UHM20 TX+, cm-3, d0-4, d1-2-39, d2-1-55, d3-2-59, d3 Tol-0/+0-06, l0-42, l1-7, P-0-635, P (T/Inch)-40, α-60°,	about 2 weeks	5-40	4	2.39	1.55	2.59	0/+0.06	42	7	0.635	40	60°		To order
WHC 442-06-32 UNC UHM20, cm-1, d0-4, d1-2-52, d2-1-49, d3-2-77, d3 Tol-0/+0-07, l0-42, l1-8-3, P-0-794, P (T/Inch)-32, α-60°,	about 2 weeks	6-32	4	2.52	1.49	2.77	0/+0.07	42	8.3	0.794	32	60°		To order
WHC 442-06-32 UNC UHM20 HX, cm-2, d0-4, d1-2-52, d2-1-49, d3-2-77, d3 Tol-0/+0-07, l0-42, l1-8-3, P-0-794, P (T/Inch)-32, α-60°,	about 2 weeks	6-32	4	2.52	1.49	2.77	0/+0.07	42	8.3	0.794	32	60°		To order
WHC 442-06-32 UNC UHM20 TX+, cm-3, d0-4, d1-2-52, d2-1-49, d3-2-77, d3 Tol-0/+0-07, l0-42, l1-8-3, P-0-794, P (T/Inch)-32, α-60°,	about 2 weeks	6-32	4	2.52	1.49	2.77	0/+0.07	42	8.3	0.794	32	60°		To order
WHC 442-08-32 UNC UHM20, cm-1, d0-4, d1-3-18, d2-2-16, d3-3-42, d3 Tol-0/+0-07, l0-42, l1-8-9, P-0-794, P (T/Inch)-32, α-60°,	about 2 weeks	8-32	4	3.18	2.16	3.42	0/+0.07	42	8.9	0.794	32	60°		To order
WHC 442-08-32 UNC UHM20 HX, cm-2, d0-4, d1-3-18, d2-2-16, d3-3-42, d3 Tol-0/+0-07, l0-42, l1-8-9, P-0-794, P (T/Inch)-32, α-60°,	about 2 weeks	8-32	4	3.18	2.16	3.42	0/+0.07	42	8.9	0.794	32	60°		To order
WHC 442-08-32 UNC UHM20 TX+, cm-3, d0-4, d1-3-18, d2-2-16, d3-3-42, d3 Tol-0/+0-07, l0-42, l1-8-9, P-0-794, P (T/Inch)-32, α-60°,	about 2 weeks	8-32	4	3.18	2.16	3.42	0/+0.07	42	8.9	0.794	32	60°		To order
