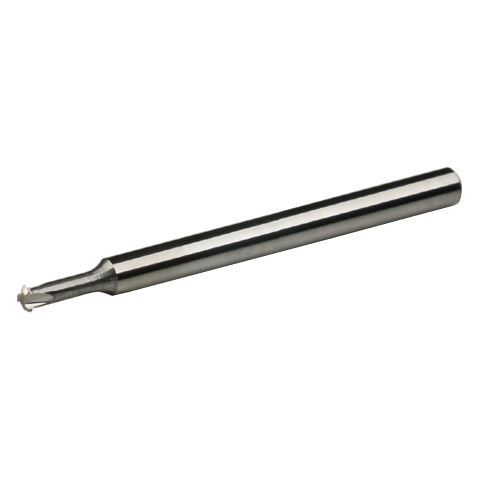

Thread milling cutter WHD UNF long version

ANSI 1 Z. SERIES

Ordering by Catalog

Thread milling cutter WHD UNF long version

Catalog Order List

Grade

Search Start search

	Filter
	Filter
Order Designation	Stock	ANSIB11	d0	d1	d2	d3	d3 Tol	l0	l1	P	P (T/Inch)	α	CAD Data	Selection
WHD 338-00-80 UNF UHM20, cm-1, d0-3, d1-1-12, d2-0-67, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-5, P-0-317, P (T/Inch)-80, α-60°,	about 2 weeks	0-80	3	1.12	0.67	1.25	0/+0.04	38	5	0.317	80	60°		To order
WHD 338-00-80 UNF UHM20 HX, cm-2, d0-3, d1-1-12, d2-0-67, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-5, P-0-317, P (T/Inch)-80, α-60°,	about 2 weeks	0-80	3	1.12	0.67	1.25	0/+0.04	38	5	0.317	80	60°		To order
WHD 338-00-80 UNF UHM20 TX+, cm-3, d0-3, d1-1-12, d2-0-67, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-5, P-0-317, P (T/Inch)-80, α-60°,	about 2 weeks	0-80	3	1.12	0.67	1.25	0/+0.04	38	5	0.317	80	60°		To order
WHD 338-01-72 UNF UHM20, cm-1, d0-3, d1-1-41, d2-0-91, d3-1-55, d3 Tol-0/+0-04, l0-38, l1-5-8, P-0-353, P (T/Inch)-72, α-60°,	3 pieces	1-72	3	1.41	0.91	1.55	0/+0.04	38	5.8	0.353	72	60°		To order
WHD 338-01-72 UNF UHM20 HX, cm-2, d0-3, d1-1-41, d2-0-91, d3-1-55, d3 Tol-0/+0-04, l0-38, l1-5-8, P-0-353, P (T/Inch)-72, α-60°,	3 pieces	1-72	3	1.41	0.91	1.55	0/+0.04	38	5.8	0.353	72	60°		To order
WHD 338-01-72 UNF UHM20 TX+, cm-3, d0-3, d1-1-41, d2-0-91, d3-1-55, d3 Tol-0/+0-04, l0-38, l1-5-8, P-0-353, P (T/Inch)-72, α-60°,	about 2 weeks	1-72	3	1.41	0.91	1.55	0/+0.04	38	5.8	0.353	72	60°		To order
WHD 338-02-64 UNF UHM20, cm-1, d0-3, d1-1-69, d2-1-14, d3-1-9, d3 Tol-0/+0-04, l0-38, l1-6-8, P-0-396, P (T/Inch)-64, α-60°,	about 2 weeks	2-64	3	1.69	1.14	1.9	0/+0.04	38	6.8	0.396	64	60°		To order
WHD 338-02-64 UNF UHM20 HX, cm-2, d0-3, d1-1-69, d2-1-14, d3-1-9, d3 Tol-0/+0-04, l0-38, l1-6-8, P-0-396, P (T/Inch)-64, α-60°,	about 2 weeks	2-64	3	1.69	1.14	1.9	0/+0.04	38	6.8	0.396	64	60°		To order
WHD 338-02-64 UNF UHM20 TX+, cm-3, d0-3, d1-1-69, d2-1-14, d3-1-9, d3 Tol-0/+0-04, l0-38, l1-6-8, P-0-396, P (T/Inch)-64, α-60°,	about 2 weeks	2-64	3	1.69	1.14	1.9	0/+0.04	38	6.8	0.396	64	60°		To order
WHD 338-03-56 UNF UHM20, cm-1, d0-3, d1-1-95, d2-1-32, d3-2-15, d3 Tol-0/+0-05, l0-38, l1-7-8, P-0-453, P (T/Inch)-56, α-60°,	about 2 weeks	3-56	3	1.95	1.32	2.15	0/+0.05	38	7.8	0.453	56	60°		To order
WHD 338-03-56 UNF UHM20 HX, cm-2, d0-3, d1-1-95, d2-1-32, d3-2-15, d3 Tol-0/+0-05, l0-38, l1-7-8, P-0-453, P (T/Inch)-56, α-60°,	about 2 weeks	3-56	3	1.95	1.32	2.15	0/+0.05	38	7.8	0.453	56	60°		To order
WHD 338-03-56 UNF UHM20 TX+, cm-3, d0-3, d1-1-95, d2-1-32, d3-2-15, d3 Tol-0/+0-05, l0-38, l1-7-8, P-0-453, P (T/Inch)-56, α-60°,	about 2 weeks	3-56	3	1.95	1.32	2.15	0/+0.05	38	7.8	0.453	56	60°		To order
WHD 338-04-48 UNF UHM20, cm-1, d0-3, d1-2-19, d2-1-46, d3-2-4, d3 Tol-0/+0-05, l0-38, l1-8-9, P-0-529, P (T/Inch)-48, α-60°,	about 2 weeks	4-48	3	2.19	1.46	2.4	0/+0.05	38	8.9	0.529	48	60°		To order
WHD 338-04-48 UNF UHM20 HX, cm-2, d0-3, d1-2-19, d2-1-46, d3-2-4, d3 Tol-0/+0-05, l0-38, l1-8-9, P-0-529, P (T/Inch)-48, α-60°,	about 2 weeks	4-48	3	2.19	1.46	2.4	0/+0.05	38	8.9	0.529	48	60°		To order
WHD 338-04-48 UNF UHM20 TX+, cm-3, d0-3, d1-2-19, d2-1-46, d3-2-4, d3 Tol-0/+0-05, l0-38, l1-8-9, P-0-529, P (T/Inch)-48, α-60°,	about 2 weeks	4-48	3	2.19	1.46	2.4	0/+0.05	38	8.9	0.529	48	60°		To order
WHD 338-05-44 UNF UHM20, cm-1, d0-3, d1-2-46, d2-1-68, d3-2-7, d3 Tol-0/+0-05, l0-38, l1-9-8, P-0-577, P (T/Inch)-44, α-60°,	about 2 weeks	5-44	3	2.46	1.68	2.7	0/+0.05	38	9.8	0.577	44	60°		To order
WHD 338-05-44 UNF UHM20 HX, cm-2, d0-3, d1-2-46, d2-1-68, d3-2-7, d3 Tol-0/+0-05, l0-38, l1-9-8, P-0-577, P (T/Inch)-44, α-60°,	about 2 weeks	5-44	3	2.46	1.68	2.7	0/+0.05	38	9.8	0.577	44	60°		To order
WHD 338-05-44 UNF UHM20 TX+, cm-3, d0-3, d1-2-46, d2-1-68, d3-2-7, d3 Tol-0/+0-05, l0-38, l1-9-8, P-0-577, P (T/Inch)-44, α-60°,	about 2 weeks	5-44	3	2.46	1.68	2.7	0/+0.05	38	9.8	0.577	44	60°		To order
WHD 442-06-40 UNF UHM20, cm-1, d0-4, d1-2-72, d2-1-87, d3-2-95, d3 Tol-0/+0-06, l0-42, l1-10-8, P-0-635, P (T/Inch)-40, α-60°,	about 2 weeks	6-40	4	2.72	1.87	2.95	0/+0.06	42	10.8	0.635	40	60°		To order
WHD 442-06-40 UNF UHM20 HX, cm-2, d0-4, d1-2-72, d2-1-87, d3-2-95, d3 Tol-0/+0-06, l0-42, l1-10-8, P-0-635, P (T/Inch)-40, α-60°,	about 2 weeks	6-40	4	2.72	1.87	2.95	0/+0.06	42	10.8	0.635	40	60°		To order
WHD 442-06-40 UNF UHM20 TX+, cm-3, d0-4, d1-2-72, d2-1-87, d3-2-95, d3 Tol-0/+0-06, l0-42, l1-10-8, P-0-635, P (T/Inch)-40, α-60°,	about 2 weeks	6-40	4	2.72	1.87	2.95	0/+0.06	42	10.8	0.635	40	60°		To order
WHD 442-08-36 UNF UHM20, cm-1, d0-4, d1-3-29, d2-2-37, d3-3-5, d3 Tol-0/+0-06, l0-42, l1-12-6, P-0-705, P (T/Inch)-36, α-60°,	about 2 weeks	8-36	4	3.29	2.37	3.5	0/+0.06	42	12.6	0.705	36	60°		To order
WHD 442-08-36 UNF UHM20 HX, cm-2, d0-4, d1-3-29, d2-2-37, d3-3-5, d3 Tol-0/+0-06, l0-42, l1-12-6, P-0-705, P (T/Inch)-36, α-60°,	about 2 weeks	8-36	4	3.29	2.37	3.5	0/+0.06	42	12.6	0.705	36	60°		To order
WHD 442-08-36 UNF UHM20 TX+, cm-3, d0-4, d1-3-29, d2-2-37, d3-3-5, d3 Tol-0/+0-06, l0-42, l1-12-6, P-0-705, P (T/Inch)-36, α-60°,	about 2 weeks	8-36	4	3.29	2.37	3.5	0/+0.06	42	12.6	0.705	36	60°		To order
WHD 442-10-32 UNF UHM20, cm-1, d0-4, d1-3-84, d2-2-82, d3-4-1, d3 Tol-0/+0-07, l0-42, l1-14-4, P-0-794, P (T/Inch)-32, α-60°,	about 2 weeks	10-32	4	3.84	2.82	4.1	0/+0.07	42	14.4	0.794	32	60°		To order
WHD 442-10-32 UNF UHM20 HX, cm-2, d0-4, d1-3-84, d2-2-82, d3-4-1, d3 Tol-0/+0-07, l0-42, l1-14-4, P-0-794, P (T/Inch)-32, α-60°,	about 2 weeks	10-32	4	3.84	2.82	4.1	0/+0.07	42	14.4	0.794	32	60°		To order
WHD 442-10-32 UNF UHM20 TX+, cm-3, d0-4, d1-3-84, d2-2-82, d3-4-1, d3 Tol-0/+0-07, l0-42, l1-14-4, P-0-794, P (T/Inch)-32, α-60°,	about 2 weeks	10-32	4	3.84	2.82	4.1	0/+0.07	42	14.4	0.794	32	60°		To order
