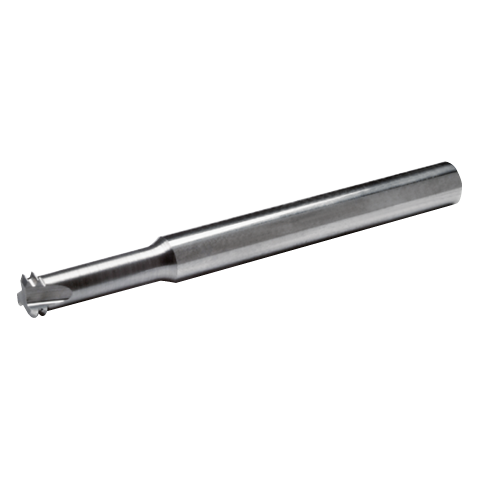

Thread milling cutter WHA short version (reinforc.)

METRIC 2 Z. SERIES

Ordering by Catalog

Thread milling cutter WHA short version (reinforc.)

Catalog Order List

Grade

Search Start search

	Filter
	Filter
Order Designation	Stock	ISODIN13	a	d0	d1	d2	d3	d3 Tol	l0	l1	P	α	CAD Data	Selection
WHA 338 010 025 UHM20, cm-1, a-0-03, d0-3, d1-0-83, d2-0-41, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-2-3, P-0-25, α-60°,	1 piece	M1.0	0.03	3	0.83	0.41	0.75	0/+0.03	38	2.3	0.25	60°		To order
WHA 338 010 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-0-83, d2-0-41, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-2-3, P-0-25, α-60°,	1 piece	M1.0	0.03	3	0.83	0.41	0.75	0/+0.03	38	2.3	0.25	60°		To order
WHA 338 010 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-0-83, d2-0-41, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-2-3, P-0-25, α-60°,	2 pieces	M1.0	0.03	3	0.83	0.41	0.75	0/+0.03	38	2.3	0.25	60°		To order
WHA 338 012 025 UHM20, cm-1, a-0-03, d0-3, d1-1-03, d2-0-61, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-2-8, P-0-25, α-60°,	about 2 weeks	M1.2	0.03	3	1.03	0.61	0.95	0/+0.03	38	2.8	0.25	60°		To order
WHA 338 012 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-03, d2-0-61, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-2-8, P-0-25, α-60°,	about 2 weeks	M1.2	0.03	3	1.03	0.61	0.95	0/+0.03	38	2.8	0.25	60°		To order
WHA 338 012 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-03, d2-0-61, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-2-8, P-0-25, α-60°,	about 2 weeks	M1.2	0.03	3	1.03	0.61	0.95	0/+0.03	38	2.8	0.25	60°		To order
WHA 338 014 030 UHM20, cm-1, a-0-03, d0-3, d1-1-21, d2-0-74, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-3-2, P-0-3, α-60°,	3 pieces	M1.4	0.03	3	1.21	0.74	1.1	0/+0.04	38	3.2	0.3	60°		To order
WHA 338 014 030 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-21, d2-0-74, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-3-2, P-0-3, α-60°,	about 2 weeks	M1.4	0.03	3	1.21	0.74	1.1	0/+0.04	38	3.2	0.3	60°		To order
WHA 338 014 030 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-21, d2-0-74, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-3-2, P-0-3, α-60°,	2 pieces	M1.4	0.03	3	1.21	0.74	1.1	0/+0.04	38	3.2	0.3	60°		To order
WHA 338 016 035 UHM20, cm-1, a-0-03, d0-3, d1-1-39, d2-0-88, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-3-7, P-0-35, α-60°,	about 2 weeks	M1.6	0.03	3	1.39	0.88	1.25	0/+0.04	38	3.7	0.35	60°		To order
WHA 338 016 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-39, d2-0-88, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-3-7, P-0-35, α-60°,	about 2 weeks	M1.6	0.03	3	1.39	0.88	1.25	0/+0.04	38	3.7	0.35	60°		To order
WHA 338 016 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-39, d2-0-88, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-3-7, P-0-35, α-60°,	about 2 weeks	M1.6	0.03	3	1.39	0.88	1.25	0/+0.04	38	3.7	0.35	60°		To order
WHA 338 018 035 UHM20, cm-1, a-0-03, d0-3, d1-1-59, d2-1-08, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-4-1, P-0-35, α-60°,	2 pieces	M1.8	0.03	3	1.59	1.08	1.45	0/+0.04	38	4.1	0.35	60°		To order
WHA 338 018 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-59, d2-1-08, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-4-1, P-0-35, α-60°,	about 2 weeks	M1.8	0.03	3	1.59	1.08	1.45	0/+0.04	38	4.1	0.35	60°		To order
WHA 338 018 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-59, d2-1-08, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-4-1, P-0-35, α-60°,	approx. 12 working days	M1.8	0.03	3	1.59	1.08	1.45	0/+0.04	38	4.1	0.35	60°		To order
WHA 338 020 040 UHM20, cm-1, a-0-03, d0-3, d1-1-76, d2-1-19, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-4-6, P-0-4, α-60°,	2 pieces	M2.0	0.03	3	1.76	1.19	1.6	0/+0.05	38	4.6	0.4	60°		To order
WHA 338 020 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-76, d2-1-19, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-4-6, P-0-4, α-60°,	2 pieces	M2.0	0.03	3	1.76	1.19	1.6	0/+0.05	38	4.6	0.4	60°		To order
WHA 338 020 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-76, d2-1-19, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-4-6, P-0-4, α-60°,	about 2 weeks	M2.0	0.03	3	1.76	1.19	1.6	0/+0.05	38	4.6	0.4	60°		To order
WHA 338 022 045 UHM20, cm-1, a-0-03, d0-3, d1-1-94, d2-1-31, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-5-1, P-0-45, α-60°,	about 2 weeks	M2.2	0.03	3	1.94	1.31	1.75	0/+0.05	38	5.1	0.45	60°		To order
WHA 338 022 045 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-94, d2-1-31, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-5-1, P-0-45, α-60°,	about 2 weeks	M2.2	0.03	3	1.94	1.31	1.75	0/+0.05	38	5.1	0.45	60°		To order
WHA 338 022 045 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-94, d2-1-31, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-5-1, P-0-45, α-60°,	about 2 weeks	M2.2	0.03	3	1.94	1.31	1.75	0/+0.05	38	5.1	0.45	60°		To order
WHA 338 023 040 UHM20, cm-1, a-0-03, d0-3, d1-2-06, d2-1-49, d3-1-9, d3 Tol-0/+0-05, l0-38, l1-5-2, P-0-4, α-60°,	about 2 weeks	M2.3	0.03	3	2.06	1.49	1.9	0/+0.05	38	5.2	0.4	60°		To order
WHA 338 023 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-06, d2-1-49, d3-1-9, d3 Tol-0/+0-05, l0-38, l1-5-2, P-0-4, α-60°,	about 2 weeks	M2.3	0.03	3	2.06	1.49	1.9	0/+0.05	38	5.2	0.4	60°		To order
WHA 338 023 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-06, d2-1-49, d3-1-9, d3 Tol-0/+0-05, l0-38, l1-5-2, P-0-4, α-60°,	about 2 weeks	M2.3	0.03	3	2.06	1.49	1.9	0/+0.05	38	5.2	0.4	60°		To order
