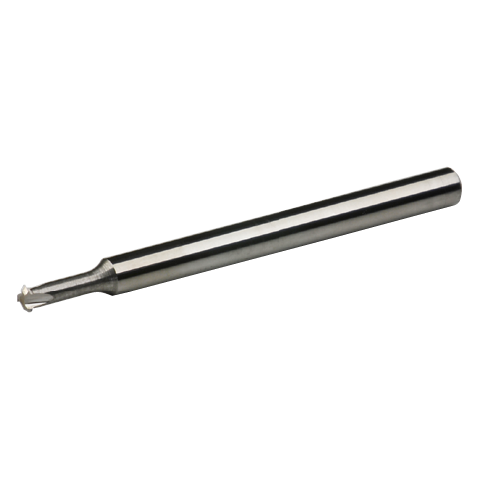

Thread milling cutter WHC short version

METRIC 1 Z. SERIES

Ordering by Catalog

Thread milling cutter WHC short version

Catalog Order List

Grade

Search Start search

	Filter
	Filter
Order Designation	Stock	ISODIN13	a	d0	d1	d2	d3	d3 Tol	l0	l1	P	α	CAD Data	Selection
WHC 338 010 025 UHM20, cm-1, a-0-03, d0-3, d1-0-68, d2-0-3, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-2-5, P-0-25, α-60°,	about 2 weeks	M1.0	0.03	3	0.68	0.3	0.75	0/+0.03	38	2.5	0.25	60°		To order
WHC 338 010 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-0-68, d2-0-3, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-2-5, P-0-25, α-60°,	4 pieces	M1.0	0.03	3	0.68	0.3	0.75	0/+0.03	38	2.5	0.25	60°		To order
WHC 338 010 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-0-68, d2-0-3, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-2-5, P-0-25, α-60°,	about 2 weeks	M1.0	0.03	3	0.68	0.3	0.75	0/+0.03	38	2.5	0.25	60°		To order
WHC 338 012 025 UHM20, cm-1, a-0-03, d0-3, d1-0-88, d2-0-5, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-2-7, P-0-25, α-60°,	1 piece	M1.2	0.03	3	0.88	0.5	0.95	0/+0.03	38	2.7	0.25	60°		To order
WHC 338 012 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-0-88, d2-0-5, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-2-7, P-0-25, α-60°,	2 pieces	M1.2	0.03	3	0.88	0.5	0.95	0/+0.03	38	2.7	0.25	60°		To order
WHC 338 012 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-0-88, d2-0-5, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-2-7, P-0-25, α-60°,	about 2 weeks	M1.2	0.03	3	0.88	0.5	0.95	0/+0.03	38	2.7	0.25	60°		To order
WHC 338 014 025 UHM20, cm-1, a-0-03, d0-3, d1-1-08, d2-0-7, d3-1-15, d3 Tol-0/+0-03, l0-38, l1-2-9, P-0-25, α-60°,	approx. 6 working days	M1.4	0.03	3	1.08	0.7	1.15	0/+0.03	38	2.9	0.25	60°		To order
WHC 338 014 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-08, d2-0-7, d3-1-15, d3 Tol-0/+0-03, l0-38, l1-2-9, P-0-25, α-60°,	about 2 weeks	M1.4	0.03	3	1.08	0.7	1.15	0/+0.03	38	2.9	0.25	60°		To order
WHC 338 014 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-08, d2-0-7, d3-1-15, d3 Tol-0/+0-03, l0-38, l1-2-9, P-0-25, α-60°,	1 piece	M1.4	0.03	3	1.08	0.7	1.15	0/+0.03	38	2.9	0.25	60°		To order
WHC 338 014 030 UHM20, cm-1, a-0-03, d0-3, d1-1-02, d2-0-58, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-3-2, P-0-3, α-60°,	about 2 weeks	M1.4	0.03	3	1.02	0.58	1.1	0/+0.04	38	3.2	0.3	60°		To order
WHC 338 014 030 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-02, d2-0-58, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-3-2, P-0-3, α-60°,	1 piece	M1.4	0.03	3	1.02	0.58	1.1	0/+0.04	38	3.2	0.3	60°		To order
WHC 338 014 030 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-02, d2-0-58, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-3-2, P-0-3, α-60°,	about 2 weeks	M1.4	0.03	3	1.02	0.58	1.1	0/+0.04	38	3.2	0.3	60°		To order
WHC 338 016 025 UHM20, cm-1, a-0-03, d0-3, d1-1-28, d2-0-9, d3-1-35, d3 Tol-0/+0-03, l0-38, l1-3-1, P-0-25, α-60°,	about 2 weeks	M1.6	0.03	3	1.28	0.9	1.35	0/+0.03	38	3.1	0.25	60°		To order
WHC 338 016 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-28, d2-0-9, d3-1-35, d3 Tol-0/+0-03, l0-38, l1-3-1, P-0-25, α-60°,	2 pieces	M1.6	0.03	3	1.28	0.9	1.35	0/+0.03	38	3.1	0.25	60°		To order
WHC 338 016 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-28, d2-0-9, d3-1-35, d3 Tol-0/+0-03, l0-38, l1-3-1, P-0-25, α-60°,	about 2 weeks	M1.6	0.03	3	1.28	0.9	1.35	0/+0.03	38	3.1	0.25	60°		To order
WHC 338 016 030 UHM20, cm-1, a-0-03, d0-3, d1-1-22, d2-0-78, d3-1-3, d3 Tol-0/+0-04, l0-38, l1-3-4, P-0-3, α-60°,	about 2 weeks	M1.6	0.03	3	1.22	0.78	1.3	0/+0.04	38	3.4	0.3	60°		To order
WHC 338 016 030 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-22, d2-0-78, d3-1-3, d3 Tol-0/+0-04, l0-38, l1-3-4, P-0-3, α-60°,	1 piece	M1.6	0.03	3	1.22	0.78	1.3	0/+0.04	38	3.4	0.3	60°		To order
WHC 338 016 030 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-22, d2-0-78, d3-1-3, d3 Tol-0/+0-04, l0-38, l1-3-4, P-0-3, α-60°,	about 2 weeks	M1.6	0.03	3	1.22	0.78	1.3	0/+0.04	38	3.4	0.3	60°		To order
WHC 338 016 035 UHM20, cm-1, a-0-03, d0-3, d1-1-16, d2-0-65, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-3-7, P-0-35, α-60°,	1 piece	M1.6	0.03	3	1.16	0.65	1.25	0/+0.04	38	3.7	0.35	60°		To order
WHC 338 016 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-16, d2-0-65, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-3-7, P-0-35, α-60°,	2 pieces	M1.6	0.03	3	1.16	0.65	1.25	0/+0.04	38	3.7	0.35	60°		To order
WHC 338 016 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-16, d2-0-65, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-3-7, P-0-35, α-60°,	about 2 weeks	M1.6	0.03	3	1.16	0.65	1.25	0/+0.04	38	3.7	0.35	60°		To order
WHC 338 018 025 UHM20, cm-1, a-0-03, d0-3, d1-1-48, d2-1-1, d3-1-55, d3 Tol-0/+0-03, l0-38, l1-3-3, P-0-25, α-60°,	about 2 weeks	M1.8	0.03	3	1.48	1.1	1.55	0/+0.03	38	3.3	0.25	60°		To order
WHC 338 018 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-48, d2-1-1, d3-1-55, d3 Tol-0/+0-03, l0-38, l1-3-3, P-0-25, α-60°,	about 2 weeks	M1.8	0.03	3	1.48	1.1	1.55	0/+0.03	38	3.3	0.25	60°		To order
WHC 338 018 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-48, d2-1-1, d3-1-55, d3 Tol-0/+0-03, l0-38, l1-3-3, P-0-25, α-60°,	about 2 weeks	M1.8	0.03	3	1.48	1.1	1.55	0/+0.03	38	3.3	0.25	60°		To order
WHC 338 018 030 UHM20, cm-1, a-0-03, d0-3, d1-1-42, d2-0-98, d3-1-5, d3 Tol-0/+0-04, l0-38, l1-3-6, P-0-3, α-60°,	about 2 weeks	M1.8	0.03	3	1.42	0.98	1.5	0/+0.04	38	3.6	0.3	60°		To order
WHC 338 018 030 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-42, d2-0-98, d3-1-5, d3 Tol-0/+0-04, l0-38, l1-3-6, P-0-3, α-60°,	about 2 weeks	M1.8	0.03	3	1.42	0.98	1.5	0/+0.04	38	3.6	0.3	60°		To order
WHC 338 018 030 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-42, d2-0-98, d3-1-5, d3 Tol-0/+0-04, l0-38, l1-3-6, P-0-3, α-60°,	about 2 weeks	M1.8	0.03	3	1.42	0.98	1.5	0/+0.04	38	3.6	0.3	60°		To order
WHC 338 018 035 UHM20, cm-1, a-0-03, d0-3, d1-1-36, d2-0-85, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-3-9, P-0-35, α-60°,	2 pieces	M1.8	0.03	3	1.36	0.85	1.45	0/+0.04	38	3.9	0.35	60°		To order
WHC 338 018 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-36, d2-0-85, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-3-9, P-0-35, α-60°,	7 pieces	M1.8	0.03	3	1.36	0.85	1.45	0/+0.04	38	3.9	0.35	60°		To order
WHC 338 018 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-36, d2-0-85, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-3-9, P-0-35, α-60°,	about 2 weeks	M1.8	0.03	3	1.36	0.85	1.45	0/+0.04	38	3.9	0.35	60°		To order
WHC 338 020 025 UHM20, cm-1, a-0-03, d0-3, d1-1-68, d2-1-3, d3-1-75, d3 Tol-0/+0-03, l0-38, l1-3-5, P-0-25, α-60°,	about 2 weeks	M2.0	0.03	3	1.68	1.3	1.75	0/+0.03	38	3.5	0.25	60°		To order
WHC 338 020 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-68, d2-1-3, d3-1-75, d3 Tol-0/+0-03, l0-38, l1-3-5, P-0-25, α-60°,	about 2 weeks	M2.0	0.03	3	1.68	1.3	1.75	0/+0.03	38	3.5	0.25	60°		To order
WHC 338 020 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-68, d2-1-3, d3-1-75, d3 Tol-0/+0-03, l0-38, l1-3-5, P-0-25, α-60°,	about 2 weeks	M2.0	0.03	3	1.68	1.3	1.75	0/+0.03	38	3.5	0.25	60°		To order
WHC 338 020 030 UHM20, cm-1, a-0-03, d0-3, d1-1-62, d2-1-18, d3-1-7, d3 Tol-0/+0-04, l0-38, l1-3-8, P-0-3, α-60°,	3 pieces	M2.0	0.03	3	1.62	1.18	1.7	0/+0.04	38	3.8	0.3	60°		To order
WHC 338 020 030 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-62, d2-1-18, d3-1-7, d3 Tol-0/+0-04, l0-38, l1-3-8, P-0-3, α-60°,	about 2 weeks	M2.0	0.03	3	1.62	1.18	1.7	0/+0.04	38	3.8	0.3	60°		To order
WHC 338 020 030 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-62, d2-1-18, d3-1-7, d3 Tol-0/+0-04, l0-38, l1-3-8, P-0-3, α-60°,	about 2 weeks	M2.0	0.03	3	1.62	1.18	1.7	0/+0.04	38	3.8	0.3	60°		To order
WHC 338 020 035 UHM20, cm-1, a-0-03, d0-3, d1-1-56, d2-1-05, d3-1-65, d3 Tol-0/+0-04, l0-38, l1-4-1, P-0-35, α-60°,	about 2 weeks	M2.0	0.03	3	1.56	1.05	1.65	0/+0.04	38	4.1	0.35	60°		To order
WHC 338 020 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-56, d2-1-05, d3-1-65, d3 Tol-0/+0-04, l0-38, l1-4-1, P-0-35, α-60°,	about 2 weeks	M2.0	0.03	3	1.56	1.05	1.65	0/+0.04	38	4.1	0.35	60°		To order
WHC 338 020 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-56, d2-1-05, d3-1-65, d3 Tol-0/+0-04, l0-38, l1-4-1, P-0-35, α-60°,	about 2 weeks	M2.0	0.03	3	1.56	1.05	1.65	0/+0.04	38	4.1	0.35	60°		To order
WHC 338 020 040 UHM20, cm-1, a-0-03, d0-3, d1-1-5, d2-0-92, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-4-4, P-0-4, α-60°,	about 2 weeks	M2.0	0.03	3	1.5	0.92	1.6	0/+0.05	38	4.4	0.4	60°		To order
WHC 338 020 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-5, d2-0-92, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-4-4, P-0-4, α-60°,	1 piece	M2.0	0.03	3	1.5	0.92	1.6	0/+0.05	38	4.4	0.4	60°		To order
WHC 338 020 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-5, d2-0-92, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-4-4, P-0-4, α-60°,	about 2 weeks	M2.0	0.03	3	1.5	0.92	1.6	0/+0.05	38	4.4	0.4	60°		To order
WHC 338 022 030 UHM20, cm-1, a-0-03, d0-3, d1-1-82, d2-1-38, d3-1-9, d3 Tol-0/+0-04, l0-38, l1-4, P-0-3, α-60°,	about 2 weeks	M2.2	0.03	3	1.82	1.38	1.9	0/+0.04	38	4	0.3	60°		To order
WHC 338 022 030 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-82, d2-1-38, d3-1-9, d3 Tol-0/+0-04, l0-38, l1-4, P-0-3, α-60°,	3 pieces	M2.2	0.03	3	1.82	1.38	1.9	0/+0.04	38	4	0.3	60°		To order
WHC 338 022 030 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-82, d2-1-38, d3-1-9, d3 Tol-0/+0-04, l0-38, l1-4, P-0-3, α-60°,	about 2 weeks	M2.2	0.03	3	1.82	1.38	1.9	0/+0.04	38	4	0.3	60°		To order
WHC 338 022 035 UHM20, cm-1, a-0-03, d0-3, d1-1-76, d2-1-25, d3-1-85, d3 Tol-0/+0-04, l0-38, l1-4-3, P-0-35, α-60°,	about 2 weeks	M2.2	0.03	3	1.76	1.25	1.85	0/+0.04	38	4.3	0.35	60°		To order
WHC 338 022 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-76, d2-1-25, d3-1-85, d3 Tol-0/+0-04, l0-38, l1-4-3, P-0-35, α-60°,	about 2 weeks	M2.2	0.03	3	1.76	1.25	1.85	0/+0.04	38	4.3	0.35	60°		To order
WHC 338 022 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-76, d2-1-25, d3-1-85, d3 Tol-0/+0-04, l0-38, l1-4-3, P-0-35, α-60°,	about 2 weeks	M2.2	0.03	3	1.76	1.25	1.85	0/+0.04	38	4.3	0.35	60°		To order
WHC 338 022 040 UHM20, cm-1, a-0-03, d0-3, d1-1-7, d2-1-12, d3-1-8, d3 Tol-0/+0-05, l0-38, l1-4-6, P-0-4, α-60°,	about 2 weeks	M2.2	0.03	3	1.7	1.12	1.8	0/+0.05	38	4.6	0.4	60°		To order
WHC 338 022 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-7, d2-1-12, d3-1-8, d3 Tol-0/+0-05, l0-38, l1-4-6, P-0-4, α-60°,	about 2 weeks	M2.2	0.03	3	1.7	1.12	1.8	0/+0.05	38	4.6	0.4	60°		To order
WHC 338 022 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-7, d2-1-12, d3-1-8, d3 Tol-0/+0-05, l0-38, l1-4-6, P-0-4, α-60°,	about 2 weeks	M2.2	0.03	3	1.7	1.12	1.8	0/+0.05	38	4.6	0.4	60°		To order
WHC 338 022 045 UHM20, cm-1, a-0-03, d0-3, d1-1-64, d2-1, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-4-9, P-0-45, α-60°,	1 piece	M2.2	0.03	3	1.64	1	1.75	0/+0.05	38	4.9	0.45	60°		To order
WHC 338 022 045 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-64, d2-1, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-4-9, P-0-45, α-60°,	1 piece	M2.2	0.03	3	1.64	1	1.75	0/+0.05	38	4.9	0.45	60°		To order
WHC 338 022 045 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-64, d2-1, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-4-9, P-0-45, α-60°,	about 2 weeks	M2.2	0.03	3	1.64	1	1.75	0/+0.05	38	4.9	0.45	60°		To order
WHC 338 025 035 UHM20, cm-1, a-0-03, d0-3, d1-2-06, d2-1-55, d3-2-15, d3 Tol-0/+0-04, l0-38, l1-4-6, P-0-35, α-60°,	about 2 weeks	M2.5	0.03	3	2.06	1.55	2.15	0/+0.04	38	4.6	0.35	60°		To order
WHC 338 025 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-06, d2-1-55, d3-2-15, d3 Tol-0/+0-04, l0-38, l1-4-6, P-0-35, α-60°,	about 2 weeks	M2.5	0.03	3	2.06	1.55	2.15	0/+0.04	38	4.6	0.35	60°		To order
WHC 338 025 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-06, d2-1-55, d3-2-15, d3 Tol-0/+0-04, l0-38, l1-4-6, P-0-35, α-60°,	about 2 weeks	M2.5	0.03	3	2.06	1.55	2.15	0/+0.04	38	4.6	0.35	60°		To order
WHC 338 025 040 UHM20, cm-1, a-0-03, d0-3, d1-2, d2-1-42, d3-2-1, d3 Tol-0/+0-05, l0-38, l1-4-9, P-0-4, α-60°,	about 2 weeks	M2.5	0.03	3	2	1.42	2.1	0/+0.05	38	4.9	0.4	60°		To order
WHC 338 025 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-2, d2-1-42, d3-2-1, d3 Tol-0/+0-05, l0-38, l1-4-9, P-0-4, α-60°,	about 2 weeks	M2.5	0.03	3	2	1.42	2.1	0/+0.05	38	4.9	0.4	60°		To order
WHC 338 025 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2, d2-1-42, d3-2-1, d3 Tol-0/+0-05, l0-38, l1-4-9, P-0-4, α-60°,	about 2 weeks	M2.5	0.03	3	2	1.42	2.1	0/+0.05	38	4.9	0.4	60°		To order
WHC 338 025 045 UHM20, cm-1, a-0-03, d0-3, d1-1-94, d2-1-3, d3-2-05, d3 Tol-0/+0-05, l0-38, l1-5-2, P-0-45, α-60°,	about 2 weeks	M2.5	0.03	3	1.94	1.3	2.05	0/+0.05	38	5.2	0.45	60°		To order
WHC 338 025 045 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-94, d2-1-3, d3-2-05, d3 Tol-0/+0-05, l0-38, l1-5-2, P-0-45, α-60°,	1 piece	M2.5	0.03	3	1.94	1.3	2.05	0/+0.05	38	5.2	0.45	60°		To order
WHC 338 025 045 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-94, d2-1-3, d3-2-05, d3 Tol-0/+0-05, l0-38, l1-5-2, P-0-45, α-60°,	about 2 weeks	M2.5	0.03	3	1.94	1.3	2.05	0/+0.05	38	5.2	0.45	60°		To order
WHC 338 030 035 UHM20, cm-1, a-0-03, d0-3, d1-2-56, d2-2-05, d3-2-65, d3 Tol-0/+0-04, l0-38, l1-5-1, P-0-35, α-60°,	2 pieces	M3.0	0.03	3	2.56	2.05	2.65	0/+0.04	38	5.1	0.35	60°		To order
WHC 338 030 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-56, d2-2-05, d3-2-65, d3 Tol-0/+0-04, l0-38, l1-5-1, P-0-35, α-60°,	2 pieces	M3.0	0.03	3	2.56	2.05	2.65	0/+0.04	38	5.1	0.35	60°		To order
WHC 338 030 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-56, d2-2-05, d3-2-65, d3 Tol-0/+0-04, l0-38, l1-5-1, P-0-35, α-60°,	about 2 weeks	M3.0	0.03	3	2.56	2.05	2.65	0/+0.04	38	5.1	0.35	60°		To order
WHC 338 030 040 UHM20, cm-1, a-0-03, d0-3, d1-2-5, d2-1-92, d3-2-6, d3 Tol-0/+0-05, l0-38, l1-5-4, P-0-4, α-60°,	about 2 weeks	M3	0.03	3	2.5	1.92	2.6	0/+0.05	38	5.4	0.4	60°		To order
WHC 338 030 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-5, d2-1-92, d3-2-6, d3 Tol-0/+0-05, l0-38, l1-5-4, P-0-4, α-60°,	about 2 weeks	M3	0.03	3	2.5	1.92	2.6	0/+0.05	38	5.4	0.4	60°		To order
WHC 338 030 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-5, d2-1-92, d3-2-6, d3 Tol-0/+0-05, l0-38, l1-5-4, P-0-4, α-60°,	about 2 weeks	M3	0.03	3	2.5	1.92	2.6	0/+0.05	38	5.4	0.4	60°		To order
WHC 338 030 045 UHM20, cm-1, a-0-03, d0-3, d1-2-44, d2-1-8, d3-2-55, d3 Tol-0/+0-05, l0-38, l1-5-7, P-0-45, α-60°,	about 2 weeks	M3	0.03	3	2.44	1.8	2.55	0/+0.05	38	5.7	0.45	60°		To order
WHC 338 030 045 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-44, d2-1-8, d3-2-55, d3 Tol-0/+0-05, l0-38, l1-5-7, P-0-45, α-60°,	about 2 weeks	M3	0.03	3	2.44	1.8	2.55	0/+0.05	38	5.7	0.45	60°		To order
WHC 338 030 045 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-44, d2-1-8, d3-2-55, d3 Tol-0/+0-05, l0-38, l1-5-7, P-0-45, α-60°,	about 2 weeks	M3	0.03	3	2.44	1.8	2.55	0/+0.05	38	5.7	0.45	60°		To order
WHC 338 030 050 UHM20, cm-1, a-0-03, d0-3, d1-2-38, d2-1-68, d3-2-5, d3 Tol-0/+0-05, l0-38, l1-6, P-0-5, α-60°,	3 pieces	M3	0.03	3	2.38	1.68	2.5	0/+0.05	38	6	0.5	60°		To order
WHC 338 030 050 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-38, d2-1-68, d3-2-5, d3 Tol-0/+0-05, l0-38, l1-6, P-0-5, α-60°,	2 pieces	M3	0.03	3	2.38	1.68	2.5	0/+0.05	38	6	0.5	60°		To order
WHC 338 030 050 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-38, d2-1-68, d3-2-5, d3 Tol-0/+0-05, l0-38, l1-6, P-0-5, α-60°,	about 2 weeks	M3	0.03	3	2.38	1.68	2.5	0/+0.05	38	6	0.5	60°		To order
WHC 338 035 035 UHM20, cm-1, a-0-03, d0-3, d1-3-06, d2-2-55, d3-3-15, d3 Tol-0/+0-04, l0-38, l1-5-6, P-0-35, α-60°,	about 2 weeks	M3.5	0.03	3	3.06	2.55	3.15	0/+0.04	38	5.6	0.35	60°		To order
WHC 338 035 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-3-06, d2-2-55, d3-3-15, d3 Tol-0/+0-04, l0-38, l1-5-6, P-0-35, α-60°,	about 2 weeks	M3.5	0.03	3	3.06	2.55	3.15	0/+0.04	38	5.6	0.35	60°		To order
WHC 338 035 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-3-06, d2-2-55, d3-3-15, d3 Tol-0/+0-04, l0-38, l1-5-6, P-0-35, α-60°,	about 2 weeks	M3.5	0.03	3	3.06	2.55	3.15	0/+0.04	38	5.6	0.35	60°		To order
WHC 338 035 040 UHM20, cm-1, a-0-03, d0-3, d1-2-98, d2-2-4, d3-3-1, d3 Tol-0/+0-05, l0-38, l1-5-9, P-0-4, α-60°,	about 2 weeks	M3.5	0.03	3	2.98	2.4	3.1	0/+0.05	38	5.9	0.4	60°		To order
WHC 338 035 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-98, d2-2-4, d3-3-1, d3 Tol-0/+0-05, l0-38, l1-5-9, P-0-4, α-60°,	about 2 weeks	M3.5	0.03	3	2.98	2.4	3.1	0/+0.05	38	5.9	0.4	60°		To order
WHC 338 035 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-98, d2-2-4, d3-3-1, d3 Tol-0/+0-05, l0-38, l1-5-9, P-0-4, α-60°,	about 2 weeks	M3.5	0.03	3	2.98	2.4	3.1	0/+0.05	38	5.9	0.4	60°		To order
WHC 338 035 045 UHM20, cm-1, a-0-03, d0-3, d1-2-94, d2-2-3, d3-3-05, d3 Tol-0/+0-05, l0-38, l1-6-2, P-0-45, α-60°,	about 2 weeks	M3.5	0.03	3	2.94	2.3	3.05	0/+0.05	38	6.2	0.45	60°		To order
WHC 338 035 045 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-94, d2-2-3, d3-3-05, d3 Tol-0/+0-05, l0-38, l1-6-2, P-0-45, α-60°,	about 2 weeks	M3.5	0.03	3	2.94	2.3	3.05	0/+0.05	38	6.2	0.45	60°		To order
WHC 338 035 045 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-94, d2-2-3, d3-3-05, d3 Tol-0/+0-05, l0-38, l1-6-2, P-0-45, α-60°,	about 2 weeks	M3.5	0.03	3	2.94	2.3	3.05	0/+0.05	38	6.2	0.45	60°		To order
WHC 338 035 050 UHM20, cm-1, a-0-03, d0-3, d1-2-88, d2-2-18, d3-3, d3 Tol-0/+0-05, l0-38, l1-6-5, P-0-5, α-60°,	about 2 weeks	M3.5	0.03	3	2.88	2.18	3	0/+0.05	38	6.5	0.5	60°		To order
WHC 338 035 050 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-88, d2-2-18, d3-3, d3 Tol-0/+0-05, l0-38, l1-6-5, P-0-5, α-60°,	about 2 weeks	M3.5	0.03	3	2.88	2.18	3	0/+0.05	38	6.5	0.5	60°		To order
WHC 338 035 050 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-88, d2-2-18, d3-3, d3 Tol-0/+0-05, l0-38, l1-6-5, P-0-5, α-60°,	about 2 weeks	M3.5	0.03	3	2.88	2.18	3	0/+0.05	38	6.5	0.5	60°		To order
WHC 442 035 060 UHM20, cm-1, a-0-03, d0-4, d1-2-75, d2-1-95, d3-2-9, d3 Tol-0/+0-06, l0-42, l1-7-1, P-0-6, α-60°,	2 pieces	M3.5	0.03	4	2.75	1.95	2.9	0/+0.06	42	7.1	0.6	60°		To order
WHC 442 035 060 UHM20 HX, cm-2, a-0-03, d0-4, d1-2-75, d2-1-95, d3-2-9, d3 Tol-0/+0-06, l0-42, l1-7-1, P-0-6, α-60°,	about 2 weeks	M3.5	0.03	4	2.75	1.95	2.9	0/+0.06	42	7.1	0.6	60°		To order
WHC 442 035 060 UHM20 TX+, cm-3, a-0-03, d0-4, d1-2-75, d2-1-95, d3-2-9, d3 Tol-0/+0-06, l0-42, l1-7-1, P-0-6, α-60°,	about 2 weeks	M3.5	0.03	4	2.75	1.95	2.9	0/+0.06	42	7.1	0.6	60°		To order
WHC 442 040 045 UHM20, cm-1, a-0-03, d0-3, d1-3-44, d2-2-8, d3-3-55, d3 Tol-0/+0-05, l0-38, l1-6-7, P-0-45, α-60°,	3 pieces	M4	0.03	3	3.44	2.8	3.55	0/+0.05	38	6.7	0.45	60°		To order
WHC 442 040 045 UHM20 HX, cm-2, a-0-03, d0-3, d1-3-44, d2-2-8, d3-3-55, d3 Tol-0/+0-05, l0-38, l1-6-7, P-0-45, α-60°,	about 2 weeks	M4	0.03	3	3.44	2.8	3.55	0/+0.05	38	6.7	0.45	60°		To order
WHC 442 040 045 UHM20 TX+, cm-3, a-0-03, d0-3, d1-3-44, d2-2-8, d3-3-55, d3 Tol-0/+0-05, l0-38, l1-6-7, P-0-45, α-60°,	about 2 weeks	M4	0.03	3	3.44	2.8	3.55	0/+0.05	38	6.7	0.45	60°		To order
WHC 442 040 050 UHM20, cm-1, a-0-03, d0-4, d1-3-38, d2-2-68, d3-3-5, d3 Tol-0/+0-05, l0-42, l1-7, P-0-5, α-60°,	about 2 weeks	M4	0.03	4	3.38	2.68	3.5	0/+0.05	42	7	0.5	60°		To order
WHC 442 040 050 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-38, d2-2-68, d3-3-5, d3 Tol-0/+0-05, l0-42, l1-7, P-0-5, α-60°,	about 2 weeks	M4	0.03	4	3.38	2.68	3.5	0/+0.05	42	7	0.5	60°		To order
WHC 442 040 050 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-38, d2-2-68, d3-3-5, d3 Tol-0/+0-05, l0-42, l1-7, P-0-5, α-60°,	about 2 weeks	M4	0.03	4	3.38	2.68	3.5	0/+0.05	42	7	0.5	60°		To order
WHC 442 040 060 UHM20, cm-1, a-0-03, d0-4, d1-3-25, d2-2-45, d3-3-4, d3 Tol-0/+0-06, l0-42, l1-7-6, P-0-6, α-60°,	about 2 weeks	M4	0.03	4	3.25	2.45	3.4	0/+0.06	42	7.6	0.6	60°		To order
WHC 442 040 060 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-25, d2-2-45, d3-3-4, d3 Tol-0/+0-06, l0-42, l1-7-6, P-0-6, α-60°,	about 2 weeks	M4	0.03	4	3.25	2.45	3.4	0/+0.06	42	7.6	0.6	60°		To order
WHC 442 040 060 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-25, d2-2-45, d3-3-4, d3 Tol-0/+0-06, l0-42, l1-7-6, P-0-6, α-60°,	about 2 weeks	M4	0.03	4	3.25	2.45	3.4	0/+0.06	42	7.6	0.6	60°		To order
WHC 442 040 070 UHM20, cm-1, a-0-03, d0-4, d1-3-13, d2-2-19, d3-3-3, d3 Tol-0/+0-06, l0-42, l1-8-2, P-0-7, α-60°,	1 piece	M4	0.03	4	3.13	2.19	3.3	0/+0.06	42	8.2	0.7	60°		To order
WHC 442 040 070 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-13, d2-2-19, d3-3-3, d3 Tol-0/+0-06, l0-42, l1-8-2, P-0-7, α-60°,	2 pieces	M4	0.03	4	3.13	2.19	3.3	0/+0.06	42	8.2	0.7	60°		To order
WHC 442 040 070 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-13, d2-2-19, d3-3-3, d3 Tol-0/+0-06, l0-42, l1-8-2, P-0-7, α-60°,	about 2 weeks	M4	0.03	4	3.13	2.19	3.3	0/+0.06	42	8.2	0.7	60°		To order
WHC 442 045 050 UHM20, cm-1, a-0-03, d0-4, d1-3-88, d2-3-18, d3-4, d3 Tol-0/+0-05, l0-42, l1-7-5, P-0-5, α-60°,	1 piece	M4.5	0.03	4	3.88	3.18	4	0/+0.05	42	7.5	0.5	60°		To order
WHC 442 045 050 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-88, d2-3-18, d3-4, d3 Tol-0/+0-05, l0-42, l1-7-5, P-0-5, α-60°,	2 pieces	M4.5	0.03	4	3.88	3.18	4	0/+0.05	42	7.5	0.5	60°		To order
WHC 442 045 050 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-88, d2-3-18, d3-4, d3 Tol-0/+0-05, l0-42, l1-7-5, P-0-5, α-60°,	about 2 weeks	M4.5	0.03	4	3.88	3.18	4	0/+0.05	42	7.5	0.5	60°		To order
WHC 442 045 060 UHM20, cm-1, a-0-03, d0-4, d1-3-75, d2-2-95, d3-3-9, d3 Tol-0/+0-06, l0-42, l1-8-1, P-0-6, α-60°,	about 2 weeks	M4.5	0.03	4	3.75	2.95	3.9	0/+0.06	42	8.1	0.6	60°		To order
WHC 442 045 060 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-75, d2-2-95, d3-3-9, d3 Tol-0/+0-06, l0-42, l1-8-1, P-0-6, α-60°,	about 2 weeks	M4.5	0.03	4	3.75	2.95	3.9	0/+0.06	42	8.1	0.6	60°		To order
WHC 442 045 060 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-75, d2-2-95, d3-3-9, d3 Tol-0/+0-06, l0-42, l1-8-1, P-0-6, α-60°,	about 2 weeks	M4.5	0.03	4	3.75	2.95	3.9	0/+0.06	42	8.1	0.6	60°		To order
WHC 442 045 070 UHM20, cm-1, a-0-03, d0-4, d1-3-63, d2-2-71, d3-3-8, d3 Tol-0/+0-06, l0-42, l1-8-7, P-0-7, α-60°,	about 2 weeks	M4.5	0.03	4	3.63	2.71	3.8	0/+0.06	42	8.7	0.7	60°		To order
WHC 442 045 070 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-63, d2-2-71, d3-3-8, d3 Tol-0/+0-06, l0-42, l1-8-7, P-0-7, α-60°,	about 2 weeks	M4.5	0.03	4	3.63	2.71	3.8	0/+0.06	42	8.7	0.7	60°		To order
WHC 442 045 070 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-63, d2-2-71, d3-3-8, d3 Tol-0/+0-06, l0-42, l1-8-7, P-0-7, α-60°,	about 2 weeks	M4.5	0.03	4	3.63	2.71	3.8	0/+0.06	42	8.7	0.7	60°		To order
WHC 442 045 075 UHM20, cm-1, a-0-03, d0-4, d1-3-57, d2-2-57, d3-3-75, d3 Tol-0/+0-07, l0-42, l1-9, P-0-75, α-60°,	about 2 weeks	M4.5	0.03	4	3.57	2.57	3.75	0/+0.07	42	9	0.75	60°		To order
WHC 442 045 075 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-57, d2-2-57, d3-3-75, d3 Tol-0/+0-07, l0-42, l1-9, P-0-75, α-60°,	about 2 weeks	M4.5	0.03	4	3.57	2.57	3.75	0/+0.07	42	9	0.75	60°		To order
WHC 442 045 075 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-57, d2-2-57, d3-3-75, d3 Tol-0/+0-07, l0-42, l1-9, P-0-75, α-60°,	about 2 weeks	M4.5	0.03	4	3.57	2.57	3.75	0/+0.07	42	9	0.75	60°		To order
WHC 442 050 075 UHM20, cm-1, a-0-03, d0-4, d1-3-98, d2-2-98, d3-4-25, d3 Tol-0/+0-07, l0-42, l1-9-5, P-0-75, α-60°,	about 2 weeks	M5	0.03	4	3.98	2.98	4.25	0/+0.07	42	9.5	0.75	60°		To order
WHC 442 050 075 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-98, d2-2-98, d3-4-25, d3 Tol-0/+0-07, l0-42, l1-9-5, P-0-75, α-60°,	about 2 weeks	M5	0.03	4	3.98	2.98	4.25	0/+0.07	42	9.5	0.75	60°		To order
WHC 442 050 075 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-98, d2-2-98, d3-4-25, d3 Tol-0/+0-07, l0-42, l1-9-5, P-0-75, α-60°,	about 2 weeks	M5	0.03	4	3.98	2.98	4.25	0/+0.07	42	9.5	0.75	60°		To order
WHC 442 050 080 UHM20, cm-1, a-0-03, d0-4, d1-3-98, d2-2-92, d3-4-2, d3 Tol-0/+0-07, l0-42, l1-9-8, P-0-8, α-60°,	about 2 weeks	M5	0.03	4	3.98	2.92	4.2	0/+0.07	42	9.8	0.8	60°		To order
WHC 442 050 080 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-98, d2-2-92, d3-4-2, d3 Tol-0/+0-07, l0-42, l1-9-8, P-0-8, α-60°,	2 pieces	M5	0.03	4	3.98	2.92	4.2	0/+0.07	42	9.8	0.8	60°		To order
WHC 442 050 080 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-98, d2-2-92, d3-4-2, d3 Tol-0/+0-07, l0-42, l1-9-8, P-0-8, α-60°,	about 2 weeks	M5	0.03	4	3.98	2.92	4.2	0/+0.07	42	9.8	0.8	60°		To order
