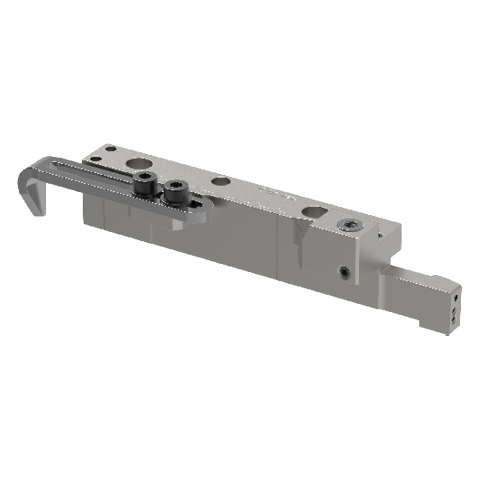

LUB Clamping shim MLU IC (CITIZEN)

WEDGES

Ordering by Catalog

LUB Clamping shim MLU IC (CITIZEN)

Catalog Order List

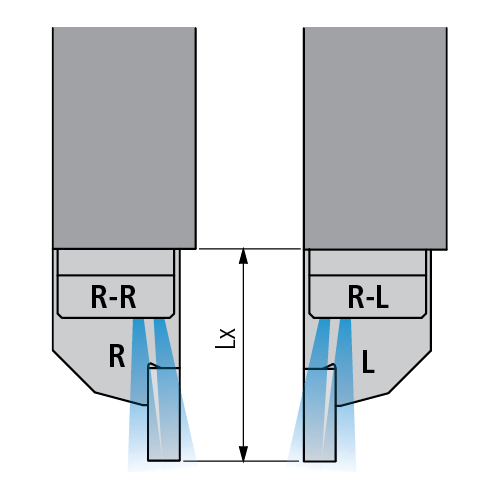

Execution
- Left
- Right

Search Start search

	Filter
	Filter
Order Designation	Stock	Lx	Positions	Toolholder	Tool plate	Type of machine	CAD Data	Selection
MLU CI-01 R-L IC-Fleft, cm-1, Lx-20, Positions-T1-T6, T2-T5, Toolholder-5/8",12x12, 16x16, Tool plate-BTF1012, BTF2212, BTF2412, GTF3612, GTF3812, Type of machine-A20/L, K12, K16/E, L20/E/X, M16,	1 piece	20	T1-T6, T2-T5	5/8",12x12, 16x16	BTF1012, BTF2212, BTF2412, GTF3612, GTF3812	A20/L, K12, K16/E, L20/E/X, M16	(Register & Download)	To order
MLU CI-01 R-R IC-Fright, cm-1, Lx-20, Positions-T1-T6, T2-T5, Toolholder-5/8",12x12, 16x16, Tool plate-BTF1012, BTF2212, BTF2412, GTF3612, GTF3812, Type of machine-A20/L, K12, K16/E, L20/E/X, M16,	11 pieces	20	T1-T6, T2-T5	5/8",12x12, 16x16	BTF1012, BTF2212, BTF2412, GTF3612, GTF3812	A20/L, K12, K16/E, L20/E/X, M16	(Register & Download)	To order
MLU CI-02 R-L IC-Fleft, cm-1, Lx-20, Positions-T1-T5, T1-T6, T1-T7, Toolholder-10x10, Tool plate-BTF1010, GTF5110(5J003 M), GTF5210, GTF6010, Type of machine-C16, K12/E, K16, M16, M4-16-V/VIII,	8 pieces	20	T1-T5, T1-T6, T1-T7	10x10	BTF1010, GTF5110(5J003 M), GTF5210, GTF6010	C16, K12/E, K16, M16, M4-16-V/VIII	(Register & Download)	To order
MLU CI-02 R-R IC-Fright, cm-1, Lx-20, Positions-T1-T5, T1-T6, T1-T7, Toolholder-10x10, Tool plate-BTF1010, GTF5110(5J003 M), GTF5210, GTF6010, Type of machine-C16, K12/E, K16, M16, M4-16-V/VIII,	23 pieces	20	T1-T5, T1-T6, T1-T7	10x10	BTF1010, GTF5110(5J003 M), GTF5210, GTF6010	C16, K12/E, K16, M16, M4-16-V/VIII	(Register & Download)	To order
MLU CI-03 R-L IC-Fleft, cm-1, Lx-20, Positions-T2-T5, T2-T6, Toolholder-1/2", Tool plate-BFT2213, BFT2413, GTF3113, Type of machine-A20 L, L20/X,	1 piece	20	T2-T5, T2-T6	1/2"	BFT2213, BFT2413, GTF3113	A20 L, L20/X	(Register & Download)	To order
MLU CI-03 R-R IC-Fright, cm-1, Lx-20, Positions-T2-T5, T2-T6, Toolholder-1/2", Tool plate-BFT2213, BFT2413, GTF3113, Type of machine-A20 L, L20/X,	9 pieces	20	T2-T5, T2-T6	1/2"	BFT2213, BFT2413, GTF3113	A20 L, L20/X	(Register & Download)	To order
MLU CI-05 R-L IC-Fleft, cm-1, Lx-30, Positions-T1-T5, T1-T6, Toolholder-12x12, 1/2", Tool plate-BTF2413, GTF2513, Type of machine-A20, M20,	9 pieces	30	T1-T5, T1-T6	12x12, 1/2"	BTF2413, GTF2513	A20, M20	(Register & Download)	To order
MLU CI-05 R-R IC-Fright, cm-1, Lx-30, Positions-T1-T5, T1-T6, Toolholder-12x12, 1/2", Tool plate-BTF2413, GTF2513, Type of machine-A20, M20,	4 pieces	30	T1-T5, T1-T6	12x12, 1/2"	BTF2413, GTF2513	A20, M20	(Register & Download)	To order
MLU CI-07 R-L IC-Fleft, cm-1, Lx-17-5, Positions-T1-T6, Toolholder-3/8", Tool plate-GTF7010L, Type of machine-L12,	1 piece	17.5	T1-T6	3/8"	GTF7010L	L12	(Register & Download)	To order
MLU CI-07 R-R IC-Fright, cm-1, Lx-17-5, Positions-T1-T6, Toolholder-3/8", Tool plate-GTF7010L, Type of machine-L12,	7 pieces	17.5	T1-T6	3/8"	GTF7010L	L12	(Register & Download)	To order
MLU CI-08 R-L IC-Fleft, cm-1, Lx-25, Positions-T1 (Cut Off), T1-T5, T1-T6, T11-T15, Toolholder-5/8",12x12, 16x16, Tool plate-BTF2413, GTF3612, GTF4016, GTF4516, GTF5216/L, GTF5816, Type of machine-A20, L4-25, L20/E/X, L25, L32, M32/V, M432-V/VIII,	8 pieces	25	T1 (Cut Off), T1-T5, T1-T6, T11-T15	5/8",12x12, 16x16	BTF2413, GTF3612, GTF4016, GTF4516, GTF5216/L, GTF5816	A20, L4-25, L20/E/X, L25, L32, M32/V, M432-V/VIII	(Register & Download)	To order
MLU CI-08 R-R IC-Fright, cm-1, Lx-25, Positions-T1 (Cut Off), T1-T5, T1-T6, T11-T15, Toolholder-5/8",12x12, 16x16, Tool plate-BTF2413, GTF3612, GTF4016, GTF4516, GTF5216/L, GTF5816, Type of machine-A20, L4-25, L20/E/X, L25, L32, M32/V, M432-V/VIII,	5 pieces	25	T1 (Cut Off), T1-T5, T1-T6, T11-T15	5/8",12x12, 16x16	BTF2413, GTF3612, GTF4016, GTF4516, GTF5216/L, GTF5816	A20, L4-25, L20/E/X, L25, L32, M32/V, M432-V/VIII	(Register & Download)	To order
MLU CI-09 R-L IC-Fleft, cm-1, Lx-17-5, Positions-T1-T6, Toolholder-10x10, Tool plate-GTF7010, Type of machine-K12, L12,	7 pieces	17.5	T1-T6	10x10	GTF7010	K12, L12	(Register & Download)	To order
MLU CI-09 R-R IC-Fright, cm-1, Lx-17-5, Positions-T1-T6, Toolholder-10x10, Tool plate-GTF7010, Type of machine-K12, L12,	5 pieces	17.5	T1-T6	10x10	GTF7010	K12, L12	(Register & Download)	To order
MLU CI-10 R-L IC-Fleft, cm-1, Lx-13, Positions-T1-T6, Toolholder-8x8, Tool plate-GTF7020, Type of machine-L12,	7 pieces	13	T1-T6	8x8	GTF7020	L12	(Register & Download)	To order
MLU CI-10 R-R IC-Fright, cm-1, Lx-13, Positions-T1-T6, Toolholder-8x8, Tool plate-GTF7020, Type of machine-L12,	5 pieces	13	T1-T6	8x8	GTF7020	L12	(Register & Download)	To order
MLU CI-11 R-L IC-Fleft, cm-1, Lx-22, Positions-T1-T5, Toolholder-5/8", Tool plate-GTF3613, Type of machine-L20E,	3 pieces	22	T1-T5	5/8"	GTF3613	L20E	(Register & Download)	To order
MLU CI-11 R-R IC-Fright, cm-1, Lx-22, Positions-T1-T5, Toolholder-5/8", Tool plate-GTF3613, Type of machine-L20E,	7 pieces	22	T1-T5	5/8"	GTF3613	L20E	(Register & Download)	To order
MLU CI-12 R-L IC-Fleft, cm-1, Lx-13, Positions-T11-T12, Toolholder-8x8, Tool plate-QFT4308, Type of machine-R07,	4 pieces	13	T11-T12	8x8	QFT4308	R07	(Register & Download)	To order
MLU CI-12 R-R IC-Fright, cm-1, Lx-13, Positions-T11-T12, Toolholder-8x8, Tool plate-QFT4308, Type of machine-R07,	3 pieces	13	T11-T12	8x8	QFT4308	R07	(Register & Download)	To order
MLU CI-14 R-L IC-Fleft, cm-1, Lx-20, Positions-T1-T4, Toolholder-10x10, Tool plate-GTF3110, Type of machine-L16,	9 pieces	20	T1-T4	10x10	GTF3110	L16	(Register & Download)	To order
MLU CI-14 R-R IC-Fright, cm-1, Lx-20, Positions-T1-T4, Toolholder-10x10, Tool plate-GTF3110, Type of machine-L16,	17 pieces	20	T1-T4	10x10	GTF3110	L16	(Register & Download)	To order
MLU CI-18 R-R IC-Fright, cm-1, Lx-13, Positions-T1-T6, Toolholder-8x8, Tool plate-GTF7020, Type of machine-L12,	13 pieces	13	T1-T6	8x8	GTF7020	L12	(Register & Download)	To order
