- Order Designation
- WHD 338 016 025 UHM20
- Item no.
- 114180

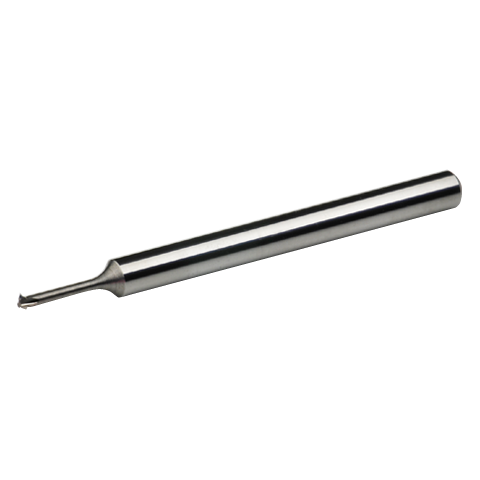

Thread milling cutter WHD long version
METRIC 1 Z. SERIES
95.00 CHF Single Price Net excl. Shipping costs
You find more products while useing the catalog or the Multidec order assistant.
Customers Also Bought
Thread milling cutter WHD long version
Catalog Order List
| Filter | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filter | ||||||||||||||
| Order Designation | Stock | ISODIN13 | a | d0 | d1 | d2 | d3 | d3 Tol | l0 | l1 | P | α | CAD Data | Selection |
| WHD 338 010 025 UHM20, cm-1, a-0-03, d0-3, d1-0-68, d2-0-3, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-3-5, P-0-25, α-60°, | about 2 weeks | M1.0 | 0.03 | 3 | 0.68 | 0.3 | 0.75 | 0/+0.03 | 38 | 3.5 | 0.25 | 60° | To order | |
| WHD 338 010 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-0-68, d2-0-3, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-3-5, P-0-25, α-60°, | 3 pieces | M1.0 | 0.03 | 3 | 0.68 | 0.3 | 0.75 | 0/+0.03 | 38 | 3.5 | 0.25 | 60° | To order | |
| WHD 338 010 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-0-68, d2-0-3, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-3-5, P-0-25, α-60°, | about 2 weeks | M1.0 | 0.03 | 3 | 0.68 | 0.3 | 0.75 | 0/+0.03 | 38 | 3.5 | 0.25 | 60° | To order | |
| WHD 338 012 025 UHM20, cm-1, a-0-03, d0-3, d1-0-88, d2-0-5, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-3-9, P-0-25, α-60°, | about 2 weeks | M1.2 | 0.03 | 3 | 0.88 | 0.5 | 0.95 | 0/+0.03 | 38 | 3.9 | 0.25 | 60° | To order | |
| WHD 338 012 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-0-88, d2-0-5, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-3-9, P-0-25, α-60°, | about 2 weeks | M1.2 | 0.03 | 3 | 0.88 | 0.5 | 0.95 | 0/+0.03 | 38 | 3.9 | 0.25 | 60° | To order | |
| WHD 338 012 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-0-88, d2-0-5, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-3-9, P-0-25, α-60°, | about 2 weeks | M1.2 | 0.03 | 3 | 0.88 | 0.5 | 0.95 | 0/+0.03 | 38 | 3.9 | 0.25 | 60° | To order | |
| WHD 338 014 025 UHM20, cm-1, a-0-03, d0-3, d1-1-08, d2-0-7, d3-1-15, d3 Tol-0/+0-03, l0-38, l1-4-3, P-0-25, α-60°, | about 2 weeks | M1.4 | 0.03 | 3 | 1.08 | 0.7 | 1.15 | 0/+0.03 | 38 | 4.3 | 0.25 | 60° | To order | |
| WHD 338 014 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-08, d2-0-7, d3-1-15, d3 Tol-0/+0-03, l0-38, l1-4-3, P-0-25, α-60°, | about 2 weeks | M1.4 | 0.03 | 3 | 1.08 | 0.7 | 1.15 | 0/+0.03 | 38 | 4.3 | 0.25 | 60° | To order | |
| WHD 338 014 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-08, d2-0-7, d3-1-15, d3 Tol-0/+0-03, l0-38, l1-4-3, P-0-25, α-60°, | about 2 weeks | M1.4 | 0.03 | 3 | 1.08 | 0.7 | 1.15 | 0/+0.03 | 38 | 4.3 | 0.25 | 60° | To order | |
| WHD 338 014 030 UHM20, cm-1, a-0-03, d0-3, d1-1-02, d2-0-58, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-4-6, P-0-3, α-60°, | about 2 weeks | M1.4 | 0.03 | 3 | 1.02 | 0.58 | 1.1 | 0/+0.04 | 38 | 4.6 | 0.3 | 60° | To order | |
| WHD 338 014 030 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-02, d2-0-58, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-4-6, P-0-3, α-60°, | about 2 weeks | M1.4 | 0.03 | 3 | 1.02 | 0.58 | 1.1 | 0/+0.04 | 38 | 4.6 | 0.3 | 60° | To order | |
| WHD 338 014 030 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-02, d2-0-58, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-4-6, P-0-3, α-60°, | about 2 weeks | M1.4 | 0.03 | 3 | 1.02 | 0.58 | 1.1 | 0/+0.04 | 38 | 4.6 | 0.3 | 60° | To order | |
| WHD 338 016 025 UHM20, cm-1, a-0-03, d0-3, d1-1-28, d2-0-9, d3-1-35, d3 Tol-0/+0-03, l0-38, l1-4-7, P-0-25, α-60°, | 4 pieces | M1.6 | 0.03 | 3 | 1.28 | 0.9 | 1.35 | 0/+0.03 | 38 | 4.7 | 0.25 | 60° | To order | |
| WHD 338 016 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-28, d2-0-9, d3-1-35, d3 Tol-0/+0-03, l0-38, l1-4-7, P-0-25, α-60°, | 2 pieces | M1.6 | 0.03 | 3 | 1.28 | 0.9 | 1.35 | 0/+0.03 | 38 | 4.7 | 0.25 | 60° | To order | |
| WHD 338 016 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-28, d2-0-9, d3-1-35, d3 Tol-0/+0-03, l0-38, l1-4-7, P-0-25, α-60°, | about 2 weeks | M1.6 | 0.03 | 3 | 1.28 | 0.9 | 1.35 | 0/+0.03 | 38 | 4.7 | 0.25 | 60° | To order | |
| WHD 338 016 030 UHM20, cm-1, a-0-03, d0-3, d1-1-22, d2-0-78, d3-1-3, d3 Tol-0/+0-04, l0-38, l1-5, P-0-3, α-60°, | 2 pieces | M1.6 | 0.03 | 3 | 1.22 | 0.78 | 1.3 | 0/+0.04 | 38 | 5 | 0.3 | 60° | To order | |
| WHD 338 016 030 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-22, d2-0-78, d3-1-3, d3 Tol-0/+0-04, l0-38, l1-5, P-0-3, α-60°, | 1 piece | M1.6 | 0.03 | 3 | 1.22 | 0.78 | 1.3 | 0/+0.04 | 38 | 5 | 0.3 | 60° | To order | |
| WHD 338 016 030 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-22, d2-0-78, d3-1-3, d3 Tol-0/+0-04, l0-38, l1-5, P-0-3, α-60°, | about 2 weeks | M1.6 | 0.03 | 3 | 1.22 | 0.78 | 1.3 | 0/+0.04 | 38 | 5 | 0.3 | 60° | To order | |
| WHD 338 016 035 UHM20, cm-1, a-0-03, d0-3, d1-1-16, d2-0-65, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-5-3, P-0-35, α-60°, | 1 piece | M1.6 | 0.03 | 3 | 1.16 | 0.65 | 1.25 | 0/+0.04 | 38 | 5.3 | 0.35 | 60° | To order | |
| WHD 338 016 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-16, d2-0-65, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-5-3, P-0-35, α-60°, | 1 piece | M1.6 | 0.03 | 3 | 1.16 | 0.65 | 1.25 | 0/+0.04 | 38 | 5.3 | 0.35 | 60° | To order | |
| WHD 338 016 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-16, d2-0-65, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-5-3, P-0-35, α-60°, | approx. 14 working days | M1.6 | 0.03 | 3 | 1.16 | 0.65 | 1.25 | 0/+0.04 | 38 | 5.3 | 0.35 | 60° | To order | |
| WHD 338 018 025 UHM20, cm-1, a-0-03, d0-3, d1-1-48, d2-1-1, d3-1-55, d3 Tol-0/+0-03, l0-38, l1-5-1, P-0-25, α-60°, | 1 piece | M1.8 | 0.03 | 3 | 1.48 | 1.1 | 1.55 | 0/+0.03 | 38 | 5.1 | 0.25 | 60° | To order | |
| WHD 338 018 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-48, d2-1-1, d3-1-55, d3 Tol-0/+0-03, l0-38, l1-5-1, P-0-25, α-60°, | 3 pieces | M1.8 | 0.03 | 3 | 1.48 | 1.1 | 1.55 | 0/+0.03 | 38 | 5.1 | 0.25 | 60° | To order | |
| WHD 338 018 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-48, d2-1-1, d3-1-55, d3 Tol-0/+0-03, l0-38, l1-5-1, P-0-25, α-60°, | about 2 weeks | M1.8 | 0.03 | 3 | 1.48 | 1.1 | 1.55 | 0/+0.03 | 38 | 5.1 | 0.25 | 60° | To order | |
| WHD 338 018 030 UHM20, cm-1, a-0-03, d0-3, d1-1-42, d2-0-98, d3-1-5, d3 Tol-0/+0-04, l0-38, l1-5-4, P-0-3, α-60°, | about 2 weeks | M1.8 | 0.03 | 3 | 1.42 | 0.98 | 1.5 | 0/+0.04 | 38 | 5.4 | 0.3 | 60° | To order | |
| WHD 338 018 030 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-42, d2-0-98, d3-1-5, d3 Tol-0/+0-04, l0-38, l1-5-4, P-0-3, α-60°, | about 2 weeks | M1.8 | 0.03 | 3 | 1.42 | 0.98 | 1.5 | 0/+0.04 | 38 | 5.4 | 0.3 | 60° | To order | |
| WHD 338 018 030 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-42, d2-0-98, d3-1-5, d3 Tol-0/+0-04, l0-38, l1-5-4, P-0-3, α-60°, | about 2 weeks | M1.8 | 0.03 | 3 | 1.42 | 0.98 | 1.5 | 0/+0.04 | 38 | 5.4 | 0.3 | 60° | To order | |
| WHD 338 018 035 UHM20, cm-1, a-0-03, d0-3, d1-1-36, d2-0-85, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-5-7, P-0-35, α-60°, | 2 pieces | M1.8 | 0.03 | 3 | 1.36 | 0.85 | 1.45 | 0/+0.04 | 38 | 5.7 | 0.35 | 60° | To order | |
| WHD 338 018 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-36, d2-0-85, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-5-7, P-0-35, α-60°, | 3 pieces | M1.8 | 0.03 | 3 | 1.36 | 0.85 | 1.45 | 0/+0.04 | 38 | 5.7 | 0.35 | 60° | To order | |
| WHD 338 018 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-36, d2-0-85, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-5-7, P-0-35, α-60°, | about 2 weeks | M1.8 | 0.03 | 3 | 1.36 | 0.85 | 1.45 | 0/+0.04 | 38 | 5.7 | 0.35 | 60° | To order | |
| WHD 338 020 025 UHM20, cm-1, a-0-03, d0-3, d1-1-68, d2-1-3, d3-1-75, d3 Tol-0/+0-03, l0-38, l1-5-7, P-0-25, α-60°, | about 2 weeks | M2.0 | 0.03 | 3 | 1.68 | 1.3 | 1.75 | 0/+0.03 | 38 | 5.7 | 0.25 | 60° | To order | |
| WHD 338 020 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-68, d2-1-3, d3-1-75, d3 Tol-0/+0-03, l0-38, l1-5-7, P-0-25, α-60°, | about 2 weeks | M2.0 | 0.03 | 3 | 1.68 | 1.3 | 1.75 | 0/+0.03 | 38 | 5.7 | 0.25 | 60° | To order | |
| WHD 338 020 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-68, d2-1-3, d3-1-75, d3 Tol-0/+0-03, l0-38, l1-5-7, P-0-25, α-60°, | about 2 weeks | M2.0 | 0.03 | 3 | 1.68 | 1.3 | 1.75 | 0/+0.03 | 38 | 5.7 | 0.25 | 60° | To order | |
| WHD 338 020 030 UHM20, cm-1, a-0-03, d0-3, d1-1-62, d2-1-18, d3-1-7, d3 Tol-0/+0-04, l0-38, l1-5-8, P-0-3, α-60°, | about 2 weeks | M2.0 | 0.03 | 3 | 1.62 | 1.18 | 1.7 | 0/+0.04 | 38 | 5.8 | 0.3 | 60° | To order | |
| WHD 338 020 030 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-62, d2-1-18, d3-1-7, d3 Tol-0/+0-04, l0-38, l1-5-8, P-0-3, α-60°, | about 2 weeks | M2.0 | 0.03 | 3 | 1.62 | 1.18 | 1.7 | 0/+0.04 | 38 | 5.8 | 0.3 | 60° | To order | |
| WHD 338 020 030 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-62, d2-1-18, d3-1-7, d3 Tol-0/+0-04, l0-38, l1-5-8, P-0-3, α-60°, | about 2 weeks | M2.0 | 0.03 | 3 | 1.62 | 1.18 | 1.7 | 0/+0.04 | 38 | 5.8 | 0.3 | 60° | To order | |
| WHD 338 020 035 UHM20, cm-1, a-0-03, d0-3, d1-1-56, d2-1-05, d3-1-65, d3 Tol-0/+0-04, l0-38, l1-6-1, P-0-35, α-60°, | about 2 weeks | M2.0 | 0.03 | 3 | 1.56 | 1.05 | 1.65 | 0/+0.04 | 38 | 6.1 | 0.35 | 60° | To order | |
| WHD 338 020 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-56, d2-1-05, d3-1-65, d3 Tol-0/+0-04, l0-38, l1-6-1, P-0-35, α-60°, | about 2 weeks | M2.0 | 0.03 | 3 | 1.56 | 1.05 | 1.65 | 0/+0.04 | 38 | 6.1 | 0.35 | 60° | To order | |
| WHD 338 020 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-56, d2-1-05, d3-1-65, d3 Tol-0/+0-04, l0-38, l1-6-1, P-0-35, α-60°, | about 2 weeks | M2.0 | 0.03 | 3 | 1.56 | 1.05 | 1.65 | 0/+0.04 | 38 | 6.1 | 0.35 | 60° | To order | |
| WHD 338 020 040 UHM20, cm-1, a-0-03, d0-3, d1-1-5, d2-0-93, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-6-4, P-0-4, α-60°, | 2 pieces | M2.0 | 0.03 | 3 | 1.5 | 0.93 | 1.6 | 0/+0.05 | 38 | 6.4 | 0.4 | 60° | To order | |
| WHD 338 020 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-5, d2-0-93, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-6-4, P-0-4, α-60°, | 2 pieces | M2.0 | 0.03 | 3 | 1.5 | 0.93 | 1.6 | 0/+0.05 | 38 | 6.4 | 0.4 | 60° | To order | |
| WHD 338 020 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-5, d2-0-93, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-6-4, P-0-4, α-60°, | about 2 weeks | M2.0 | 0.03 | 3 | 1.5 | 0.93 | 1.6 | 0/+0.05 | 38 | 6.4 | 0.4 | 60° | To order | |
| WHD 338 022 030 UHM20, cm-1, a-0-03, d0-3, d1-1-82, d2-1-38, d3-1-9, d3 Tol-0/+0-04, l0-38, l1-6-2, P-0-3, α-60°, | 3 pieces | M2.2 | 0.03 | 3 | 1.82 | 1.38 | 1.9 | 0/+0.04 | 38 | 6.2 | 0.3 | 60° | To order | |
| WHD 338 022 030 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-82, d2-1-38, d3-1-9, d3 Tol-0/+0-04, l0-38, l1-6-2, P-0-3, α-60°, | about 2 weeks | M2.2 | 0.03 | 3 | 1.82 | 1.38 | 1.9 | 0/+0.04 | 38 | 6.2 | 0.3 | 60° | To order | |
| WHD 338 022 030 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-82, d2-1-38, d3-1-9, d3 Tol-0/+0-04, l0-38, l1-6-2, P-0-3, α-60°, | about 2 weeks | M2.2 | 0.03 | 3 | 1.82 | 1.38 | 1.9 | 0/+0.04 | 38 | 6.2 | 0.3 | 60° | To order | |
| WHD 338 022 035 UHM20, cm-1, a-0-03, d0-3, d1-1-76, d2-1-25, d3-1-85, d3 Tol-0/+0-04, l0-38, l1-6-5, P-0-35, α-60°, | about 2 weeks | M2.2 | 0.03 | 3 | 1.76 | 1.25 | 1.85 | 0/+0.04 | 38 | 6.5 | 0.35 | 60° | To order | |
| WHD 338 022 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-76, d2-1-25, d3-1-85, d3 Tol-0/+0-04, l0-38, l1-6-5, P-0-35, α-60°, | about 2 weeks | M2.2 | 0.03 | 3 | 1.76 | 1.25 | 1.85 | 0/+0.04 | 38 | 6.5 | 0.35 | 60° | To order | |
| WHD 338 022 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-76, d2-1-25, d3-1-85, d3 Tol-0/+0-04, l0-38, l1-6-5, P-0-35, α-60°, | about 2 weeks | M2.2 | 0.03 | 3 | 1.76 | 1.25 | 1.85 | 0/+0.04 | 38 | 6.5 | 0.35 | 60° | To order | |
| WHD 338 022 040 UHM20, cm-1, a-0-03, d0-3, d1-1-7, d2-1-13, d3-1-8, d3 Tol-0/+0-05, l0-38, l1-6-8, P-0-4, α-60°, | about 2 weeks | M2.2 | 0.03 | 3 | 1.7 | 1.13 | 1.8 | 0/+0.05 | 38 | 6.8 | 0.4 | 60° | To order | |
| WHD 338 022 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-7, d2-1-13, d3-1-8, d3 Tol-0/+0-05, l0-38, l1-6-8, P-0-4, α-60°, | about 2 weeks | M2.2 | 0.03 | 3 | 1.7 | 1.13 | 1.8 | 0/+0.05 | 38 | 6.8 | 0.4 | 60° | To order | |
| WHD 338 022 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-7, d2-1-13, d3-1-8, d3 Tol-0/+0-05, l0-38, l1-6-8, P-0-4, α-60°, | about 2 weeks | M2.2 | 0.03 | 3 | 1.7 | 1.13 | 1.8 | 0/+0.05 | 38 | 6.8 | 0.4 | 60° | To order | |
| WHD 338 022 045 UHM20, cm-1, a-0-03, d0-3, d1-1-64, d2-1-01, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-7-1, P-0-45, α-60°, | 2 pieces | M2.2 | 0.03 | 3 | 1.64 | 1.01 | 1.75 | 0/+0.05 | 38 | 7.1 | 0.45 | 60° | To order | |
| WHD 338 022 045 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-64, d2-1-01, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-7-1, P-0-45, α-60°, | 1 piece | M2.2 | 0.03 | 3 | 1.64 | 1.01 | 1.75 | 0/+0.05 | 38 | 7.1 | 0.45 | 60° | To order | |
| WHD 338 022 045 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-64, d2-1-01, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-7-1, P-0-45, α-60°, | about 2 weeks | M2.2 | 0.03 | 3 | 1.64 | 1.01 | 1.75 | 0/+0.05 | 38 | 7.1 | 0.45 | 60° | To order | |
| WHD 338 025 035 UHM20, cm-1, a-0-03, d0-3, d1-2-06, d2-1-55, d3-2-15, d3 Tol-0/+0-04, l0-38, l1-7-1, P-0-35, α-60°, | 3 pieces | M2.5 | 0.03 | 3 | 2.06 | 1.55 | 2.15 | 0/+0.04 | 38 | 7.1 | 0.35 | 60° | To order | |
| WHD 338 025 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-06, d2-1-55, d3-2-15, d3 Tol-0/+0-04, l0-38, l1-7-1, P-0-35, α-60°, | about 2 weeks | M2.5 | 0.03 | 3 | 2.06 | 1.55 | 2.15 | 0/+0.04 | 38 | 7.1 | 0.35 | 60° | To order | |
| WHD 338 025 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-06, d2-1-55, d3-2-15, d3 Tol-0/+0-04, l0-38, l1-7-1, P-0-35, α-60°, | about 2 weeks | M2.5 | 0.03 | 3 | 2.06 | 1.55 | 2.15 | 0/+0.04 | 38 | 7.1 | 0.35 | 60° | To order | |
| WHD 338 025 040 UHM20, cm-1, a-0-03, d0-3, d1-2, d2-1-43, d3-2-1, d3 Tol-0/+0-05, l0-38, l1-7-4, P-0-4, α-60°, | about 2 weeks | M2.5 | 0.03 | 3 | 2 | 1.43 | 2.1 | 0/+0.05 | 38 | 7.4 | 0.4 | 60° | To order | |
| WHD 338 025 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-2, d2-1-43, d3-2-1, d3 Tol-0/+0-05, l0-38, l1-7-4, P-0-4, α-60°, | about 2 weeks | M2.5 | 0.03 | 3 | 2 | 1.43 | 2.1 | 0/+0.05 | 38 | 7.4 | 0.4 | 60° | To order | |
| WHD 338 025 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2, d2-1-43, d3-2-1, d3 Tol-0/+0-05, l0-38, l1-7-4, P-0-4, α-60°, | about 2 weeks | M2.5 | 0.03 | 3 | 2 | 1.43 | 2.1 | 0/+0.05 | 38 | 7.4 | 0.4 | 60° | To order | |
| WHD 338 025 045 UHM20, cm-1, a-0-03, d0-3, d1-1-94, d2-1-31, d3-2-05, d3 Tol-0/+0-05, l0-38, l1-7-7, P-0-45, α-60°, | about 2 weeks | M2.5 | 0.03 | 3 | 1.94 | 1.31 | 2.05 | 0/+0.05 | 38 | 7.7 | 0.45 | 60° | To order | |
| WHD 338 025 045 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-94, d2-1-31, d3-2-05, d3 Tol-0/+0-05, l0-38, l1-7-7, P-0-45, α-60°, | about 2 weeks | M2.5 | 0.03 | 3 | 1.94 | 1.31 | 2.05 | 0/+0.05 | 38 | 7.7 | 0.45 | 60° | To order | |
| WHD 338 025 045 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-94, d2-1-31, d3-2-05, d3 Tol-0/+0-05, l0-38, l1-7-7, P-0-45, α-60°, | about 2 weeks | M2.5 | 0.03 | 3 | 1.94 | 1.31 | 2.05 | 0/+0.05 | 38 | 7.7 | 0.45 | 60° | To order | |
| WHD 338 030 035 UHM20, cm-1, a-0-03, d0-3, d1-2-56, d2-2-05, d3-2-65, d3 Tol-0/+0-04, l0-38, l1-8-1, P-0-35, α-60°, | about 2 weeks | M3.0 | 0.03 | 3 | 2.56 | 2.05 | 2.65 | 0/+0.04 | 38 | 8.1 | 0.35 | 60° | To order | |
| WHD 338 030 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-56, d2-2-05, d3-2-65, d3 Tol-0/+0-04, l0-38, l1-8-1, P-0-35, α-60°, | about 2 weeks | M3.0 | 0.03 | 3 | 2.56 | 2.05 | 2.65 | 0/+0.04 | 38 | 8.1 | 0.35 | 60° | To order | |
| WHD 338 030 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-56, d2-2-05, d3-2-65, d3 Tol-0/+0-04, l0-38, l1-8-1, P-0-35, α-60°, | about 2 weeks | M3.0 | 0.03 | 3 | 2.56 | 2.05 | 2.65 | 0/+0.04 | 38 | 8.1 | 0.35 | 60° | To order | |
| WHD 338 030 040 UHM20, cm-1, a-0-03, d0-3, d1-2-5, d2-1-93, d3-2-6, d3 Tol-0/+0-05, l0-38, l1-8-4, P-0-4, α-60°, | 47 pieces | M3 | 0.03 | 3 | 2.5 | 1.93 | 2.6 | 0/+0.05 | 38 | 8.4 | 0.4 | 60° | To order | |
| WHD 338 030 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-5, d2-1-93, d3-2-6, d3 Tol-0/+0-05, l0-38, l1-8-4, P-0-4, α-60°, | about 2 weeks | M3 | 0.03 | 3 | 2.5 | 1.93 | 2.6 | 0/+0.05 | 38 | 8.4 | 0.4 | 60° | To order | |
| WHD 338 030 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-5, d2-1-93, d3-2-6, d3 Tol-0/+0-05, l0-38, l1-8-4, P-0-4, α-60°, | 1 piece | M3 | 0.03 | 3 | 2.5 | 1.93 | 2.6 | 0/+0.05 | 38 | 8.4 | 0.4 | 60° | To order | |
| WHD 338 030 045 UHM20, cm-1, a-0-03, d0-3, d1-2-44, d2-1-81, d3-2-55, d3 Tol-0/+0-05, l0-38, l1-8-7, P-0-45, α-60°, | about 2 weeks | M3 | 0.03 | 3 | 2.44 | 1.81 | 2.55 | 0/+0.05 | 38 | 8.7 | 0.45 | 60° | To order | |
| WHD 338 030 045 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-44, d2-1-81, d3-2-55, d3 Tol-0/+0-05, l0-38, l1-8-7, P-0-45, α-60°, | about 2 weeks | M3 | 0.03 | 3 | 2.44 | 1.81 | 2.55 | 0/+0.05 | 38 | 8.7 | 0.45 | 60° | To order | |
| WHD 338 030 045 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-44, d2-1-81, d3-2-55, d3 Tol-0/+0-05, l0-38, l1-8-7, P-0-45, α-60°, | about 2 weeks | M3 | 0.03 | 3 | 2.44 | 1.81 | 2.55 | 0/+0.05 | 38 | 8.7 | 0.45 | 60° | To order | |
| WHD 338 030 050 UHM20, cm-1, a-0-03, d0-3, d1-2-38, d2-1-69, d3-2-5, d3 Tol-0/+0-05, l0-38, l1-9, P-0-5, α-60°, | about 2 weeks | M3 | 0.03 | 3 | 2.38 | 1.69 | 2.5 | 0/+0.05 | 38 | 9 | 0.5 | 60° | To order | |
| WHD 338 030 050 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-38, d2-1-69, d3-2-5, d3 Tol-0/+0-05, l0-38, l1-9, P-0-5, α-60°, | about 2 weeks | M3 | 0.03 | 3 | 2.38 | 1.69 | 2.5 | 0/+0.05 | 38 | 9 | 0.5 | 60° | To order | |
| WHD 338 030 050 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-38, d2-1-69, d3-2-5, d3 Tol-0/+0-05, l0-38, l1-9, P-0-5, α-60°, | about 2 weeks | M3 | 0.03 | 3 | 2.38 | 1.69 | 2.5 | 0/+0.05 | 38 | 9 | 0.5 | 60° | To order | |
| WHD 338 035 035 UHM20, cm-1, a-0-03, d0-3, d1-3-06, d2-2-55, d3-3-15, d3 Tol-0/+0-04, l0-38, l1-9-1, P-0-35, α-60°, | about 2 weeks | M3.5 | 0.03 | 3 | 3.06 | 2.55 | 3.15 | 0/+0.04 | 38 | 9.1 | 0.35 | 60° | To order | |
| WHD 338 035 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-3-06, d2-2-55, d3-3-15, d3 Tol-0/+0-04, l0-38, l1-9-1, P-0-35, α-60°, | about 2 weeks | M3.5 | 0.03 | 3 | 3.06 | 2.55 | 3.15 | 0/+0.04 | 38 | 9.1 | 0.35 | 60° | To order | |
| WHD 338 035 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-3-06, d2-2-55, d3-3-15, d3 Tol-0/+0-04, l0-38, l1-9-1, P-0-35, α-60°, | about 2 weeks | M3.5 | 0.03 | 3 | 3.06 | 2.55 | 3.15 | 0/+0.04 | 38 | 9.1 | 0.35 | 60° | To order | |
| WHD 338 035 040 UHM20, cm-1, a-0-03, d0-3, d1-2-98, d2-2-41, d3-3-1, d3 Tol-0/+0-05, l0-38, l1-9-4, P-0-4, α-60°, | about 2 weeks | M3.5 | 0.03 | 3 | 2.98 | 2.41 | 3.1 | 0/+0.05 | 38 | 9.4 | 0.4 | 60° | To order | |
| WHD 338 035 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-98, d2-2-41, d3-3-1, d3 Tol-0/+0-05, l0-38, l1-9-4, P-0-4, α-60°, | about 2 weeks | M3.5 | 0.03 | 3 | 2.98 | 2.41 | 3.1 | 0/+0.05 | 38 | 9.4 | 0.4 | 60° | To order | |
| WHD 338 035 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-98, d2-2-41, d3-3-1, d3 Tol-0/+0-05, l0-38, l1-9-4, P-0-4, α-60°, | about 2 weeks | M3.5 | 0.03 | 3 | 2.98 | 2.41 | 3.1 | 0/+0.05 | 38 | 9.4 | 0.4 | 60° | To order | |
| WHD 338 035 045 UHM20, cm-1, a-0-03, d0-3, d1-2-94, d2-2-31, d3-3-05, d3 Tol-0/+0-05, l0-38, l1-9-7, P-0-45, α-60°, | about 2 weeks | M3.5 | 0.03 | 3 | 2.94 | 2.31 | 3.05 | 0/+0.05 | 38 | 9.7 | 0.45 | 60° | To order | |
| WHD 338 035 045 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-94, d2-2-31, d3-3-05, d3 Tol-0/+0-05, l0-38, l1-9-7, P-0-45, α-60°, | about 2 weeks | M3.5 | 0.03 | 3 | 2.94 | 2.31 | 3.05 | 0/+0.05 | 38 | 9.7 | 0.45 | 60° | To order | |
| WHD 338 035 045 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-94, d2-2-31, d3-3-05, d3 Tol-0/+0-05, l0-38, l1-9-7, P-0-45, α-60°, | about 2 weeks | M3.5 | 0.03 | 3 | 2.94 | 2.31 | 3.05 | 0/+0.05 | 38 | 9.7 | 0.45 | 60° | To order | |
| WHD 338 035 050 UHM20, cm-1, a-0-03, d0-3, d1-2-88, d2-2-19, d3-3, d3 Tol-0/+0-05, l0-38, l1-10, P-0-5, α-60°, | about 2 weeks | M3.5 | 0.03 | 3 | 2.88 | 2.19 | 3 | 0/+0.05 | 38 | 10 | 0.5 | 60° | To order | |
| WHD 338 035 050 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-88, d2-2-19, d3-3, d3 Tol-0/+0-05, l0-38, l1-10, P-0-5, α-60°, | about 2 weeks | M3.5 | 0.03 | 3 | 2.88 | 2.19 | 3 | 0/+0.05 | 38 | 10 | 0.5 | 60° | To order | |
| WHD 338 035 050 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-88, d2-2-19, d3-3, d3 Tol-0/+0-05, l0-38, l1-10, P-0-5, α-60°, | about 2 weeks | M3.5 | 0.03 | 3 | 2.88 | 2.19 | 3 | 0/+0.05 | 38 | 10 | 0.5 | 60° | To order | |
| WHD 442 035 060 UHM20, cm-1, a-0-03, d0-4, d1-2-75, d2-1-95, d3-2-9, d3 Tol-0/+0-06, l0-42, l1-10-6, P-0-6, α-60°, | 2 pieces | M3.5 | 0.03 | 4 | 2.75 | 1.95 | 2.9 | 0/+0.06 | 42 | 10.6 | 0.6 | 60° | To order | |
| WHD 442 035 060 UHM20 HX, cm-2, a-0-03, d0-4, d1-2-75, d2-1-95, d3-2-9, d3 Tol-0/+0-06, l0-42, l1-10-6, P-0-6, α-60°, | about 2 weeks | M3.5 | 0.03 | 4 | 2.75 | 1.95 | 2.9 | 0/+0.06 | 42 | 10.6 | 0.6 | 60° | To order | |
| WHD 442 035 060 UHM20 TX+, cm-3, a-0-03, d0-4, d1-2-75, d2-1-95, d3-2-9, d3 Tol-0/+0-06, l0-42, l1-10-6, P-0-6, α-60°, | about 2 weeks | M3.5 | 0.03 | 4 | 2.75 | 1.95 | 2.9 | 0/+0.06 | 42 | 10.6 | 0.6 | 60° | To order | |
| WHD 442 040 045 UHM20, cm-1, a-0-03, d0-3, d1-3-44, d2-2-81, d3-3-55, d3 Tol-0/+0-05, l0-38, l1-10-7, P-0-45, α-60°, | about 2 weeks | M4 | 0.03 | 3 | 3.44 | 2.81 | 3.55 | 0/+0.05 | 38 | 10.7 | 0.45 | 60° | To order | |
| WHD 442 040 045 UHM20 HX, cm-2, a-0-03, d0-3, d1-3-44, d2-2-81, d3-3-55, d3 Tol-0/+0-05, l0-38, l1-10-7, P-0-45, α-60°, | about 2 weeks | M4 | 0.03 | 3 | 3.44 | 2.81 | 3.55 | 0/+0.05 | 38 | 10.7 | 0.45 | 60° | To order | |
| WHD 442 040 045 UHM20 TX+, cm-3, a-0-03, d0-3, d1-3-44, d2-2-81, d3-3-55, d3 Tol-0/+0-05, l0-38, l1-10-7, P-0-45, α-60°, | about 2 weeks | M4 | 0.03 | 3 | 3.44 | 2.81 | 3.55 | 0/+0.05 | 38 | 10.7 | 0.45 | 60° | To order | |
| WHD 442 040 050 UHM20, cm-1, a-0-03, d0-4, d1-3-38, d2-2-69, d3-3-5, d3 Tol-0/+0-05, l0-42, l1-11, P-0-5, α-60°, | 3 pieces | M4 | 0.03 | 4 | 3.38 | 2.69 | 3.5 | 0/+0.05 | 42 | 11 | 0.5 | 60° | To order | |
| WHD 442 040 050 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-38, d2-2-69, d3-3-5, d3 Tol-0/+0-05, l0-42, l1-11, P-0-5, α-60°, | 3 pieces | M4 | 0.03 | 4 | 3.38 | 2.69 | 3.5 | 0/+0.05 | 42 | 11 | 0.5 | 60° | To order | |
| WHD 442 040 050 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-38, d2-2-69, d3-3-5, d3 Tol-0/+0-05, l0-42, l1-11, P-0-5, α-60°, | about 2 weeks | M4 | 0.03 | 4 | 3.38 | 2.69 | 3.5 | 0/+0.05 | 42 | 11 | 0.5 | 60° | To order | |
| WHD 442 040 060 UHM20, cm-1, a-0-03, d0-4, d1-3-25, d2-2-45, d3-3-4, d3 Tol-0/+0-06, l0-42, l1-11-6, P-0-6, α-60°, | about 2 weeks | M4 | 0.03 | 4 | 3.25 | 2.45 | 3.4 | 0/+0.06 | 42 | 11.6 | 0.6 | 60° | To order | |
| WHD 442 040 060 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-25, d2-2-45, d3-3-4, d3 Tol-0/+0-06, l0-42, l1-11-6, P-0-6, α-60°, | about 2 weeks | M4 | 0.03 | 4 | 3.25 | 2.45 | 3.4 | 0/+0.06 | 42 | 11.6 | 0.6 | 60° | To order | |
| WHD 442 040 060 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-25, d2-2-45, d3-3-4, d3 Tol-0/+0-06, l0-42, l1-11-6, P-0-6, α-60°, | about 2 weeks | M4 | 0.03 | 4 | 3.25 | 2.45 | 3.4 | 0/+0.06 | 42 | 11.6 | 0.6 | 60° | To order | |
| WHD 442 040 070 UHM20, cm-1, a-0-03, d0-4, d1-3-13, d2-2-21, d3-3-3, d3 Tol-0/+0-06, l0-42, l1-12-2, P-0-7, α-60°, | about 2 weeks | M4 | 0.03 | 4 | 3.13 | 2.21 | 3.3 | 0/+0.06 | 42 | 12.2 | 0.7 | 60° | To order | |
| WHD 442 040 070 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-13, d2-2-21, d3-3-3, d3 Tol-0/+0-06, l0-42, l1-12-2, P-0-7, α-60°, | about 2 weeks | M4 | 0.03 | 4 | 3.13 | 2.21 | 3.3 | 0/+0.06 | 42 | 12.2 | 0.7 | 60° | To order | |
| WHD 442 040 070 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-13, d2-2-21, d3-3-3, d3 Tol-0/+0-06, l0-42, l1-12-2, P-0-7, α-60°, | about 2 weeks | M4 | 0.03 | 4 | 3.13 | 2.21 | 3.3 | 0/+0.06 | 42 | 12.2 | 0.7 | 60° | To order | |
| WHD 442 045 050 UHM20, cm-1, a-0-03, d0-4, d1-3-88, d2-3-19, d3-4, d3 Tol-0/+0-05, l0-42, l1-12, P-0-5, α-60°, | about 2 weeks | M4.5 | 0.03 | 4 | 3.88 | 3.19 | 4 | 0/+0.05 | 42 | 12 | 0.5 | 60° | To order | |
| WHD 442 045 050 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-88, d2-3-19, d3-4, d3 Tol-0/+0-05, l0-42, l1-12, P-0-5, α-60°, | 2 pieces | M4.5 | 0.03 | 4 | 3.88 | 3.19 | 4 | 0/+0.05 | 42 | 12 | 0.5 | 60° | To order | |
| WHD 442 045 050 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-88, d2-3-19, d3-4, d3 Tol-0/+0-05, l0-42, l1-12, P-0-5, α-60°, | about 2 weeks | M4.5 | 0.03 | 4 | 3.88 | 3.19 | 4 | 0/+0.05 | 42 | 12 | 0.5 | 60° | To order | |
| WHD 442 045 060 UHM20, cm-1, a-0-03, d0-4, d1-3-75, d2-2-95, d3-3-9, d3 Tol-0/+0-06, l0-42, l1-12-6, P-0-6, α-60°, | about 2 weeks | M4.5 | 0.03 | 4 | 3.75 | 2.95 | 3.9 | 0/+0.06 | 42 | 12.6 | 0.6 | 60° | To order | |
| WHD 442 045 060 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-75, d2-2-95, d3-3-9, d3 Tol-0/+0-06, l0-42, l1-12-6, P-0-6, α-60°, | about 2 weeks | M4.5 | 0.03 | 4 | 3.75 | 2.95 | 3.9 | 0/+0.06 | 42 | 12.6 | 0.6 | 60° | To order | |
| WHD 442 045 060 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-75, d2-2-95, d3-3-9, d3 Tol-0/+0-06, l0-42, l1-12-6, P-0-6, α-60°, | about 2 weeks | M4.5 | 0.03 | 4 | 3.75 | 2.95 | 3.9 | 0/+0.06 | 42 | 12.6 | 0.6 | 60° | To order | |
| WHD 442 045 070 UHM20, cm-1, a-0-03, d0-4, d1-3-63, d2-2-71, d3-3-8, d3 Tol-0/+0-06, l0-42, l1-13-2, P-0-7, α-60°, | about 2 weeks | M4.5 | 0.03 | 4 | 3.63 | 2.71 | 3.8 | 0/+0.06 | 42 | 13.2 | 0.7 | 60° | To order | |
| WHD 442 045 070 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-63, d2-2-71, d3-3-8, d3 Tol-0/+0-06, l0-42, l1-13-2, P-0-7, α-60°, | about 2 weeks | M4.5 | 0.03 | 4 | 3.63 | 2.71 | 3.8 | 0/+0.06 | 42 | 13.2 | 0.7 | 60° | To order | |
| WHD 442 045 070 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-63, d2-2-71, d3-3-8, d3 Tol-0/+0-06, l0-42, l1-13-2, P-0-7, α-60°, | about 2 weeks | M4.5 | 0.03 | 4 | 3.63 | 2.71 | 3.8 | 0/+0.06 | 42 | 13.2 | 0.7 | 60° | To order | |
| WHD 442 045 075 UHM20, cm-1, a-0-03, d0-4, d1-3-57, d2-2-59, d3-3-75, d3 Tol-0/+0-07, l0-42, l1-13-5, P-0-75, α-60°, | about 2 weeks | M4.5 | 0.03 | 4 | 3.57 | 2.59 | 3.75 | 0/+0.07 | 42 | 13.5 | 0.75 | 60° | To order | |
| WHD 442 045 075 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-57, d2-2-59, d3-3-75, d3 Tol-0/+0-07, l0-42, l1-13-5, P-0-75, α-60°, | about 2 weeks | M4.5 | 0.03 | 4 | 3.57 | 2.59 | 3.75 | 0/+0.07 | 42 | 13.5 | 0.75 | 60° | To order | |
| WHD 442 045 075 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-57, d2-2-59, d3-3-75, d3 Tol-0/+0-07, l0-42, l1-13-5, P-0-75, α-60°, | about 2 weeks | M4.5 | 0.03 | 4 | 3.57 | 2.59 | 3.75 | 0/+0.07 | 42 | 13.5 | 0.75 | 60° | To order | |
| WHD 442 050 075 UHM20, cm-1, a-0-03, d0-4, d1-3-98, d2-3, d3-4-25, d3 Tol-0/+0-07, l0-42, l1-14-5, P-0-75, α-60°, | 2 pieces | M5 | 0.03 | 4 | 3.98 | 3 | 4.25 | 0/+0.07 | 42 | 14.5 | 0.75 | 60° | To order | |
| WHD 442 050 075 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-98, d2-3, d3-4-25, d3 Tol-0/+0-07, l0-42, l1-14-5, P-0-75, α-60°, | about 2 weeks | M5 | 0.03 | 4 | 3.98 | 3 | 4.25 | 0/+0.07 | 42 | 14.5 | 0.75 | 60° | To order | |
| WHD 442 050 075 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-98, d2-3, d3-4-25, d3 Tol-0/+0-07, l0-42, l1-14-5, P-0-75, α-60°, | about 2 weeks | M5 | 0.03 | 4 | 3.98 | 3 | 4.25 | 0/+0.07 | 42 | 14.5 | 0.75 | 60° | To order | |
| WHD 442 050 080 UHM20, cm-1, a-0-03, d0-4, d1-3-98, d2-2-94, d3-4-2, d3 Tol-0/+0-07, l0-42, l1-14-8, P-0-8, α-60°, | about 2 weeks | M5 | 0.03 | 4 | 3.98 | 2.94 | 4.2 | 0/+0.07 | 42 | 14.8 | 0.8 | 60° | To order | |
| WHD 442 050 080 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-98, d2-2-94, d3-4-2, d3 Tol-0/+0-07, l0-42, l1-14-8, P-0-8, α-60°, | about 2 weeks | M5 | 0.03 | 4 | 3.98 | 2.94 | 4.2 | 0/+0.07 | 42 | 14.8 | 0.8 | 60° | To order | |
| WHD 442 050 080 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-98, d2-2-94, d3-4-2, d3 Tol-0/+0-07, l0-42, l1-14-8, P-0-8, α-60°, | about 2 weeks | M5 | 0.03 | 4 | 3.98 | 2.94 | 4.2 | 0/+0.07 | 42 | 14.8 | 0.8 | 60° | To order | |
