Order Designation: WHL 338 018 035 UHM20
Item no.: 126461

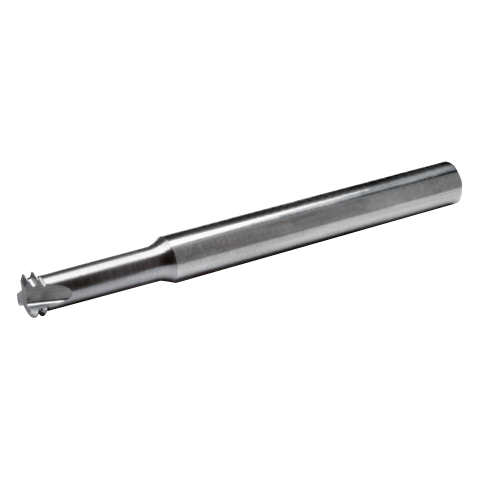

Thread milling cutter WHL long version

METRIC 2 Z. SERIES

82.50 CHF Single Price Net excl. Shipping costs

You find more products while useing the catalog or the Multidec order assistant.

Customers Also Bought

info

Thread milling cutter WHD long version

To the product

info

Thread milling cutter WHC UNC short version

To the product

info

Thread milling cutter WHD UNC long version

To the product

info

Thread milling cutter WHD UNF long version

To the product

Thread milling cutter WHL long version

Catalog Order List

Grade

Search Start search

	Filter
	Filter
Order Designation	Stock	ISODIN13	a	d0	d1	d2	d3	d3 Tol	l0	l1	P	α	CAD Data	Selection
WHL 338 010 025 UHM20, cm-1, a-0-03, d0-3, d1-0-64, d2-0-24, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-4-6, P-0-25, α-60°,	5 pieces	M1	0.03	3	0.64	0.24	0.75	0/+0.03	38	4.6	0.25	60°		To order
WHL 338 010 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-0-64, d2-0-24, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-4-6, P-0-25, α-60°,	about 2 weeks	M1	0.03	3	0.64	0.24	0.75	0/+0.03	38	4.6	0.25	60°		To order
WHL 338 010 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-0-64, d2-0-24, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-4-6, P-0-25, α-60°,	about 2 weeks	M1	0.03	3	0.64	0.24	0.75	0/+0.03	38	4.6	0.25	60°		To order
WHL 338 012 025 UHM20, cm-1, a-0-03, d0-3, d1-0-84, d2-0-44, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-5-5, P-0-25, α-60°,	about 2 weeks	M1.2	0.03	3	0.84	0.44	0.95	0/+0.03	38	5.5	0.25	60°		To order
WHL 338 012 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-0-84, d2-0-44, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-5-5, P-0-25, α-60°,	about 2 weeks	M1.2	0.03	3	0.84	0.44	0.95	0/+0.03	38	5.5	0.25	60°		To order
WHL 338 012 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-0-84, d2-0-44, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-5-5, P-0-25, α-60°,	about 2 weeks	M1.2	0.03	3	0.84	0.44	0.95	0/+0.03	38	5.5	0.25	60°		To order
WHL 338 014 030 UHM20, cm-1, a-0-03, d0-3, d1-0-98, d2-0-53, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-6-4, P-0-3, α-60°,	2 pieces	M1.4	0.03	3	0.98	0.53	1.1	0/+0.04	38	6.4	0.3	60°		To order
WHL 338 014 030 UHM20 HX, cm-2, a-0-03, d0-3, d1-0-98, d2-0-53, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-6-4, P-0-3, α-60°,	3 pieces	M1.4	0.03	3	0.98	0.53	1.1	0/+0.04	38	6.4	0.3	60°		To order
WHL 338 014 030 UHM20 TX+, cm-3, a-0-03, d0-3, d1-0-98, d2-0-53, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-6-4, P-0-3, α-60°,	about 2 weeks	M1.4	0.03	3	0.98	0.53	1.1	0/+0.04	38	6.4	0.3	60°		To order
WHL 338 016 035 UHM20, cm-1, a-0-03, d0-3, d1-1-12, d2-0-61, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-7-4, P-0-35, α-60°,	4 pieces	M1.6	0.03	3	1.12	0.61	1.25	0/+0.04	38	7.4	0.35	60°		To order
WHL 338 016 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-12, d2-0-61, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-7-4, P-0-35, α-60°,	5 pieces	M1.6	0.03	3	1.12	0.61	1.25	0/+0.04	38	7.4	0.35	60°		To order
WHL 338 016 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-12, d2-0-61, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-7-4, P-0-35, α-60°,	about 2 weeks	M1.6	0.03	3	1.12	0.61	1.25	0/+0.04	38	7.4	0.35	60°		To order
WHL 338 018 035 UHM20, cm-1, a-0-03, d0-3, d1-1-32, d2-0-81, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-8-3, P-0-35, α-60°,	5 pieces	M1.8	0.03	3	1.32	0.81	1.45	0/+0.04	38	8.3	0.35	60°		To order
WHL 338 018 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-32, d2-0-81, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-8-3, P-0-35, α-60°,	2 pieces	M1.8	0.03	3	1.32	0.81	1.45	0/+0.04	38	8.3	0.35	60°		To order
WHL 338 018 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-32, d2-0-81, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-8-3, P-0-35, α-60°,	about 2 weeks	M1.8	0.03	3	1.32	0.81	1.45	0/+0.04	38	8.3	0.35	60°		To order
WHL 338 020 040 UHM20, cm-1, a-0-03, d0-3, d1-1-46, d2-0-9, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-9-2, P-0-4, α-60°,	2 pieces	M2	0.03	3	1.46	0.9	1.6	0/+0.05	38	9.2	0.4	60°		To order
WHL 338 020 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-46, d2-0-9, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-9-2, P-0-4, α-60°,	3 pieces	M2	0.03	3	1.46	0.9	1.6	0/+0.05	38	9.2	0.4	60°		To order
WHL 338 020 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-46, d2-0-9, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-9-2, P-0-4, α-60°,	about 2 weeks	M2	0.03	3	1.46	0.9	1.6	0/+0.05	38	9.2	0.4	60°		To order
WHL 338 022 045 UHM20, cm-1, a-0-03, d0-3, d1-1-6, d2-0-98, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-10-1, P-0-45, α-60°,	about 2 weeks	M2.2	0.03	3	1.6	0.98	1.75	0/+0.05	38	10.1	0.45	60°		To order
WHL 338 022 045 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-6, d2-0-98, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-10-1, P-0-45, α-60°,	about 2 weeks	M2.2	0.03	3	1.6	0.98	1.75	0/+0.05	38	10.1	0.45	60°		To order
WHL 338 022 045 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-6, d2-0-98, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-10-1, P-0-45, α-60°,	about 2 weeks	M2.2	0.03	3	1.6	0.98	1.75	0/+0.05	38	10.1	0.45	60°		To order
WHL 338 023 040 UHM20, cm-1, a-0-03, d0-3, d1-1-76, d2-1-2, d3-1-9, d3 Tol-0/+0-05, l0-38, l1-10-4, P-0-4, α-60°,	about 2 weeks	M2.3	0.03	3	1.76	1.2	1.9	0/+0.05	38	10.4	0.4	60°		To order
WHL 338 023 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-76, d2-1-2, d3-1-9, d3 Tol-0/+0-05, l0-38, l1-10-4, P-0-4, α-60°,	about 2 weeks	M2.3	0.03	3	1.76	1.2	1.9	0/+0.05	38	10.4	0.4	60°		To order
WHL 338 023 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-76, d2-1-2, d3-1-9, d3 Tol-0/+0-05, l0-38, l1-10-4, P-0-4, α-60°,	about 2 weeks	M2.3	0.03	3	1.76	1.2	1.9	0/+0.05	38	10.4	0.4	60°		To order
WHL 338 025 045 UHM20, cm-1, a-0-03, d0-3, d1-1-9, d2-1-28, d3-2-05, d3 Tol-0/+0-05, l0-38, l1-11-5, P-0-45, α-60°,	2 pieces	M2.5	0.03	3	1.9	1.28	2.05	0/+0.05	38	11.5	0.45	60°		To order
WHL 338 025 045 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-9, d2-1-28, d3-2-05, d3 Tol-0/+0-05, l0-38, l1-11-5, P-0-45, α-60°,	4 pieces	M2.5	0.03	3	1.9	1.28	2.05	0/+0.05	38	11.5	0.45	60°		To order
WHL 338 025 045 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-9, d2-1-28, d3-2-05, d3 Tol-0/+0-05, l0-38, l1-11-5, P-0-45, α-60°,	about 2 weeks	M2.5	0.03	3	1.9	1.28	2.05	0/+0.05	38	11.5	0.45	60°		To order
WHL 338 030 050 UHM20, cm-1, a-0-03, d0-3, d1-2-34, d2-1-67, d3-2-5, d3 Tol-0/+0-05, l0-38, l1-13-8, P-0-5, α-60°,	2 pieces	M3	0.03	3	2.34	1.67	2.5	0/+0.05	38	13.8	0.5	60°		To order
WHL 338 030 050 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-34, d2-1-67, d3-2-5, d3 Tol-0/+0-05, l0-38, l1-13-8, P-0-5, α-60°,	2 pieces	M3	0.03	3	2.34	1.67	2.5	0/+0.05	38	13.8	0.5	60°		To order
WHL 338 030 050 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-34, d2-1-67, d3-2-5, d3 Tol-0/+0-05, l0-38, l1-13-8, P-0-5, α-60°,	about 2 weeks	M3	0.03	3	2.34	1.67	2.5	0/+0.05	38	13.8	0.5	60°		To order
WHL 338 035 060 UHM20, cm-1, a-0-03, d0-3, d1-2-71, d2-1-93, d3-2-9, d3 Tol-0/+0-06, l0-38, l1-16-1, P-0-6, α-60°,	2 pieces	M3.5	0.03	3	2.71	1.93	2.9	0/+0.06	38	16.1	0.6	60°		To order
WHL 338 035 060 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-71, d2-1-93, d3-2-9, d3 Tol-0/+0-06, l0-38, l1-16-1, P-0-6, α-60°,	2 pieces	M3.5	0.03	3	2.71	1.93	2.9	0/+0.06	38	16.1	0.6	60°		To order
WHL 338 035 060 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-71, d2-1-93, d3-2-9, d3 Tol-0/+0-06, l0-38, l1-16-1, P-0-6, α-60°,	about 2 weeks	M3.5	0.03	3	2.71	1.93	2.9	0/+0.06	38	16.1	0.6	60°		To order
WHL 442 040 070 UHM20, cm-1, a-0-03, d0-4, d1-3-09, d2-2-2, d3-3-3, d3 Tol-0/+0-06, l0-42, l1-18-4, P-0-7, α-60°,	2 pieces	M4	0.03	4	3.09	2.2	3.3	0/+0.06	42	18.4	0.7	60°		To order
WHL 442 040 070 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-09, d2-2-2, d3-3-3, d3 Tol-0/+0-06, l0-42, l1-18-4, P-0-7, α-60°,	1 piece	M4	0.03	4	3.09	2.2	3.3	0/+0.06	42	18.4	0.7	60°		To order
WHL 442 040 070 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-09, d2-2-2, d3-3-3, d3 Tol-0/+0-06, l0-42, l1-18-4, P-0-7, α-60°,	about 2 weeks	M4	0.03	4	3.09	2.2	3.3	0/+0.06	42	18.4	0.7	60°		To order
WHL 442 045 075 UHM20, cm-1, a-0-03, d0-4, d1-3-53, d2-2-56, d3-3-75, d3 Tol-0/+0-07, l0-42, l1-20-7, P-0-75, α-60°,	2 pieces	M4.5	0.03	4	3.53	2.56	3.75	0/+0.07	42	20.7	0.75	60°		To order
WHL 442 045 075 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-53, d2-2-56, d3-3-75, d3 Tol-0/+0-07, l0-42, l1-20-7, P-0-75, α-60°,	about 2 weeks	M4.5	0.03	4	3.53	2.56	3.75	0/+0.07	42	20.7	0.75	60°		To order
WHL 442 045 075 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-53, d2-2-56, d3-3-75, d3 Tol-0/+0-07, l0-42, l1-20-7, P-0-75, α-60°,	about 2 weeks	M4.5	0.03	4	3.53	2.56	3.75	0/+0.07	42	20.7	0.75	60°		To order
WHL 442 050 080 UHM20, cm-1, a-0-03, d0-4, d1-3-97, d2-2-95, d3-4-2, d3 Tol-0/+0-07, l0-42, l1-23, P-0-8, α-60°,	2 pieces	M5	0.03	4	3.97	2.95	4.2	0/+0.07	42	23	0.8	60°		To order
WHL 442 050 080 UHM20 HX, cm-2, a-0-03, d0-4, d1-3-97, d2-2-95, d3-4-2, d3 Tol-0/+0-07, l0-42, l1-23, P-0-8, α-60°,	2 pieces	M5	0.03	4	3.97	2.95	4.2	0/+0.07	42	23	0.8	60°		To order
WHL 442 050 080 UHM20 TX+, cm-3, a-0-03, d0-4, d1-3-97, d2-2-95, d3-4-2, d3 Tol-0/+0-07, l0-42, l1-23, P-0-8, α-60°,	about 2 weeks	M5	0.03	4	3.97	2.95	4.2	0/+0.07	42	23	0.8	60°		To order
