Order Designation: WHB 338 014 030 UHM20 HX
Item no.: 112122

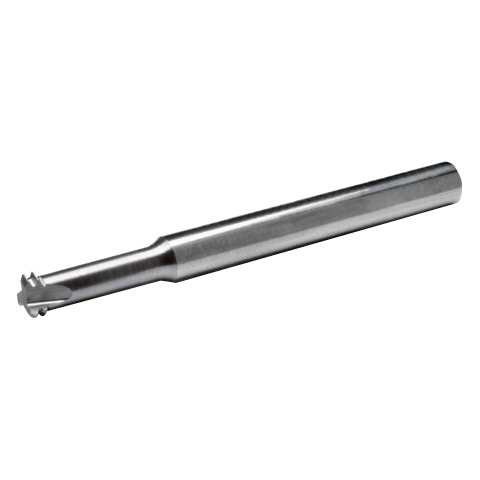

Thread milling cutter WHB long version (reinforc.)

METRIC 2 Z. SERIES

89.50 CHF Single Price Net excl. Shipping costs

You find more products while useing the catalog or the Multidec order assistant.

Customers Also Bought

info

Thread milling cutter WHA short version (reinforc.)

To the product

info

Thread milling cutter WHC short version

To the product

info

Thread milling cutter WHC UNC short version

To the product

info

Thread milling cutter WHD long version

To the product

info

Thread milling cutter WHD UNC long version

To the product

Thread milling cutter WHB long version (reinforc.)

Catalog Order List

Grade

Search Start search

	Filter
	Filter
Order Designation	Stock	ISODIN13	a	d0	d1	d2	d3	d3 Tol	l0	l1	P	α	CAD Data	Selection
WHB 338 010 025 UHM20, cm-1, a-0-03, d0-3, d1-0-83, d2-0-41, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-4-6, P-0-25, α-60°,	about 2 weeks	M1.0	0.03	3	0.83	0.41	0.75	0/+0.03	38	4.6	0.25	60°		To order
WHB 338 010 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-0-83, d2-0-41, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-4-6, P-0-25, α-60°,	about 2 weeks	M1.0	0.03	3	0.83	0.41	0.75	0/+0.03	38	4.6	0.25	60°		To order
WHB 338 010 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-0-83, d2-0-41, d3-0-75, d3 Tol-0/+0-03, l0-38, l1-4-6, P-0-25, α-60°,	about 2 weeks	M1.0	0.03	3	0.83	0.41	0.75	0/+0.03	38	4.6	0.25	60°		To order
WHB 338 012 025 UHM20, cm-1, a-0-03, d0-3, d1-1-03, d2-0-61, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-5-6, P-0-25, α-60°,	about 2 weeks	M1.2	0.03	3	1.03	0.61	0.95	0/+0.03	38	5.6	0.25	60°		To order
WHB 338 012 025 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-03, d2-0-61, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-5-6, P-0-25, α-60°,	about 2 weeks	M1.2	0.03	3	1.03	0.61	0.95	0/+0.03	38	5.6	0.25	60°		To order
WHB 338 012 025 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-03, d2-0-61, d3-0-95, d3 Tol-0/+0-03, l0-38, l1-5-6, P-0-25, α-60°,	about 2 weeks	M1.2	0.03	3	1.03	0.61	0.95	0/+0.03	38	5.6	0.25	60°		To order
WHB 338 014 030 UHM20, cm-1, a-0-03, d0-3, d1-1-21, d2-0-74, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-6-4, P-0-3, α-60°,	3 pieces	M1.4	0.03	3	1.21	0.74	1.1	0/+0.04	38	6.4	0.3	60°		To order
WHB 338 014 030 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-21, d2-0-74, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-6-4, P-0-3, α-60°,	33 pieces	M1.4	0.03	3	1.21	0.74	1.1	0/+0.04	38	6.4	0.3	60°		To order
WHB 338 014 030 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-21, d2-0-74, d3-1-1, d3 Tol-0/+0-04, l0-38, l1-6-4, P-0-3, α-60°,	2 pieces	M1.4	0.03	3	1.21	0.74	1.1	0/+0.04	38	6.4	0.3	60°		To order
WHB 338 016 035 UHM20, cm-1, a-0-03, d0-3, d1-1-39, d2-0-88, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-7-4, P-0-35, α-60°,	2 pieces	M1.6	0.03	3	1.39	0.88	1.25	0/+0.04	38	7.4	0.35	60°		To order
WHB 338 016 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-39, d2-0-88, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-7-4, P-0-35, α-60°,	2 pieces	M1.6	0.03	3	1.39	0.88	1.25	0/+0.04	38	7.4	0.35	60°		To order
WHB 338 016 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-39, d2-0-88, d3-1-25, d3 Tol-0/+0-04, l0-38, l1-7-4, P-0-35, α-60°,	4 pieces	M1.6	0.03	3	1.39	0.88	1.25	0/+0.04	38	7.4	0.35	60°		To order
WHB 338 018 035 UHM20, cm-1, a-0-03, d0-3, d1-1-59, d2-1-08, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-8-2, P-0-35, α-60°,	2 pieces	M1.8	0.03	3	1.59	1.08	1.45	0/+0.04	38	8.2	0.35	60°		To order
WHB 338 018 035 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-59, d2-1-08, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-8-2, P-0-35, α-60°,	about 2 weeks	M1.8	0.03	3	1.59	1.08	1.45	0/+0.04	38	8.2	0.35	60°		To order
WHB 338 018 035 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-59, d2-1-08, d3-1-45, d3 Tol-0/+0-04, l0-38, l1-8-2, P-0-35, α-60°,	5 pieces	M1.8	0.03	3	1.59	1.08	1.45	0/+0.04	38	8.2	0.35	60°		To order
WHB 338 020 040 UHM20, cm-1, a-0-03, d0-3, d1-1-76, d2-1-19, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-9-2, P-0-4, α-60°,	3 pieces	M2.0	0.03	3	1.76	1.19	1.6	0/+0.05	38	9.2	0.4	60°		To order
WHB 338 020 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-76, d2-1-19, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-9-2, P-0-4, α-60°,	2 pieces	M2.0	0.03	3	1.76	1.19	1.6	0/+0.05	38	9.2	0.4	60°		To order
WHB 338 020 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-76, d2-1-19, d3-1-6, d3 Tol-0/+0-05, l0-38, l1-9-2, P-0-4, α-60°,	about 2 weeks	M2.0	0.03	3	1.76	1.19	1.6	0/+0.05	38	9.2	0.4	60°		To order
WHB 338 022 045 UHM20, cm-1, a-0-03, d0-3, d1-1-94, d2-1-31, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-10-2, P-0-45, α-60°,	about 2 weeks	M2.2	0.03	3	1.94	1.31	1.75	0/+0.05	38	10.2	0.45	60°		To order
WHB 338 022 045 UHM20 HX, cm-2, a-0-03, d0-3, d1-1-94, d2-1-31, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-10-2, P-0-45, α-60°,	about 2 weeks	M2.2	0.03	3	1.94	1.31	1.75	0/+0.05	38	10.2	0.45	60°		To order
WHB 338 022 045 UHM20 TX+, cm-3, a-0-03, d0-3, d1-1-94, d2-1-31, d3-1-75, d3 Tol-0/+0-05, l0-38, l1-10-2, P-0-45, α-60°,	about 2 weeks	M2.2	0.03	3	1.94	1.31	1.75	0/+0.05	38	10.2	0.45	60°		To order
WHB 338 023 040 UHM20, cm-1, a-0-03, d0-3, d1-2-06, d2-1-49, d3-1-9, d3 Tol-0/+0-05, l0-38, l1-10-4, P-0-4, α-60°,	about 2 weeks	M2.3	0.03	3	2.06	1.49	1.9	0/+0.05	38	10.4	0.4	60°		To order
WHB 338 023 040 UHM20 HX, cm-2, a-0-03, d0-3, d1-2-06, d2-1-49, d3-1-9, d3 Tol-0/+0-05, l0-38, l1-10-4, P-0-4, α-60°,	about 2 weeks	M2.3	0.03	3	2.06	1.49	1.9	0/+0.05	38	10.4	0.4	60°		To order
WHB 338 023 040 UHM20 TX+, cm-3, a-0-03, d0-3, d1-2-06, d2-1-49, d3-1-9, d3 Tol-0/+0-05, l0-38, l1-10-4, P-0-4, α-60°,	about 2 weeks	M2.3	0.03	3	2.06	1.49	1.9	0/+0.05	38	10.4	0.4	60°		To order
